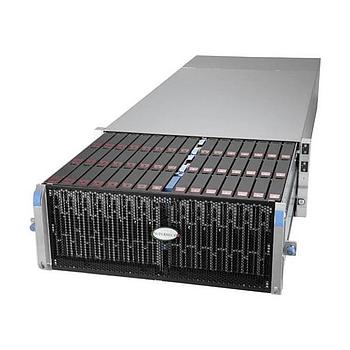

- Supermicro SSG-640SP-DE1CR90 Storage 4U Barebone Dual 3rd Gen Intel Xeon Scalable processors Up to 4TB RDIMM/LRDIMM SATA3, SAS3, M.2 NVMe Dual 10GbE, IPMI LAN port
Supermicro SSG-640SP-DE1CR90 Storage 4U Barebone Dual 3rd Gen Intel Xeon Scalable processors Up to 4TB RDIMM/LRDIMM SATA3, SAS3, M.2 NVMe Dual 10GbE, IPMI LAN port
• Big Data & Analytics, Data Lake
• HPC and AI/ML Workloads
• Telco & Cloud Service Providers
• Financial Services & Healthcare Image Archives
• Content Repositories
• Government Data Protection
Barebone 4U Rackmount SuperServer 3rd Gen Intel Xeon Scalable processors, Intel C621A chipset, Up to 4TB in 16 DIMM slots, RDIMM,LRDIMM, SAS3 via Broadcom 3916 or 3616 Controller, 90x 3.5in SATA3/SAS3 drive bays, 4x 2.5in 7mm drive bays, 2x M.2 NVMe, 2x 10GbE BaseT LAN Ports, IPMI LAN port, 2 SuperDOM (Disk on Module) port, 2600W Redundant Power Supply (CSV-947HTS-R2K63P + X12DSC-6)
To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 4 CPUs, 4 DIMMs and 23 Storage Device (HDD/HDS)).
1. Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
2. 16 ECC DDR4-3200: LRDIMM/RDIMM
3. 3 x PCIe 4.0 x16 HHHL PCIe slots
4. 90 3.5"/2.5" Hot-swap SAS3/SATA3 drives (Each node controls 45 drives)
5. 6x 8cm hot-swap counter-rotate redundant PWM cooling fans
6. 2600W Redundant Power Supplies Titanium Level (96%)
7. Drive Controller support via Broadcom® 3916 or 3616 Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
Extra Specifications for Supermicro SSG-640SP-DE1CR90 Storage 4U Barebone Dual 3rd Gen Intel Xeon Scalable processors Up to 4TB RDIMM/LRDIMM SATA3, SAS3, M.2 NVMe Dual 10GbE, IPMI LAN port
| Motherboard | ||
| Motherboard | Super X12DSC-6 | |
| Processor (per Node) | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Dual Socket P+ (LGA-4189) | ||
| Support CPU TDP 120-205W | ||
| Cores | Up to 36C/72T; Up to 54MB Cache | |
| System Memory (per Node) | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM | ||
| Up to 4TB: 16x 256 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices (per Node) | ||
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 10GbE BaseT with X550 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output (per Node) | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ-45 10Gbase-T ports | ||
| USB | 2 USB 3.0 port(s) (2 Rear_USB) | |
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| DOM | 2 Super DOM (Disk on Module) port | |
| System BIOS | ||
| BIOS Type | AMI 128MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| SUM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 4+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmount | |
| Model | CSV-947HTS-R2K63P | |
| Dimensions and Weight | ||
| Height | 7" | |
| Width | 17.6" | |
| Depth | 42.1" | |
| Package | 29.92" (H) x 35.82" (W) x 53.15" (D) | |
| Weight | Net Weight: 150 lbs (68.04 kg) | |
| Gross Weight: 240 lbs (108.86 kg) | ||
| Available Color | Black | |
| Drive Bays / Storage (per Node) | ||
| Hot-swap | 90x 3.5" hot-swap SATA3/SAS3 drive bays | |
| 2x 2.5" 7mm drive bays | ||
| M.2 | 2 M.2 NVMe | |
| System Cooling | ||
| Fans | 6 Heavy Duty 8cm Fan(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| AC Input | 2600W: 200-240Vac / 15A Max | |
| DC Input | 2600W: 200-240Vdc For CQC Only/ 15A Max / 50-60Hz | |
| +12V | Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Product SKUs | ||
| Product SKUs | SSG-640SP-DE1CR90 | |
| Expansion Slots (per Node) | ||
| PCI-Express (PCIe) | 3 PCIe 4.0 x16 LP slot(s) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12DSC-6 | 2 | Super X12DSC-6 Motherboard | |
| Motherboard / Chassis | CSV-947HTS-R2K63P | 1 | 4U Chassis | |
| Backplane | BPN-ADP-30SAS3-1 | 2 | Adapter board between Expander and HDD BPN for CSE-947H,RoHS | |
| Backplane | BPN-ADP-30SAS3-2 | 1 | Adapter board between Expander and BPN for 947H 90bay Twin,RoHS | |
| Backplane | BPN-SAS3-947EB | 6 | HDD Backplane (15-slot) for CSE-947H 60/90-bay top load chassis/server.,RoHS | |
| Backplane | BPN-SAS3-947EL | 4 | SAS3 expander module for top-load 60/90-bay single/twin/SBB CSE-947 project,RoHS | |
| Backplane | BPN-SAS3-947SB | 1 | Midplane for topload CSE-947 60/90-bay SBB/Twin/single-node system,RoHS | |
| Cable | CBL-0066 | 2 | 39" 9 PIN COM PORT EXTENSION CABLE | |
| Cable | CBL-0082L | 2 | Y SPLIT SATA POWER ADAPTER, PB FREE | |
| Cable | CBL-0473L | 4 | 21CM 30AWG SATA CBL, S-S | |
| Cable | CBL-OTHR-1062-25 | 2 | CBL,VGA,DP15/F, to 2X7F/P2.0,25CM,RoHS | |
| Cable | CBL-OTHR-1101 | 1 | 90-twin,SlimlineULP x12 to SlimlineLP x8,FFC,100 OHM to | |
| Cable | CBL-PWCD-0376-IS | 2 | PWCD,US,IEC60320 C19 TO C20,940mm (3ft),14AWG,15A,250V,Black | |
| Cable | CBL-PWEX-1100-25 | 2 | MicroFit 2x2F/PH3.0 to 1x4F/PH5.08,25cm,10A/pin,16AWG,R | |
| Cable | CBL-PWEX-1265 | 2 | 2x4,PH3.0 to 2x4,PH4.2,20CM,16AWG,9.5A/pin,RoHS | |
| Software | SFT-OOB-LIC | 2 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0078PR | 4 | 2U Proprietary Passive CPU Heat Sink for X12 Generation Hype-E Series Servers |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| HBA option | AOM-S3616-S-O | 2 | Storage 3616 controller for serviceable 60/90 bay systems. This has two 3616 controller chips, PCI switch, 2x NVMe M.2 (Form factors: 2280 and 22110), RoHS (One per Node) | |||
| HW RAID option | CBL-SAST-1213-100 | $ 28.50 | 4 | Slimline x8 (STR) to Slimline x8 (STR),14CM,100 OHM,RoHS (One per Node) | ||
| HW RAID option | AOM-SADPT-S | $ 469.50 | 2 | Bypass card for 60/90 bay systems (One per Node) | ||
| HW RAID option | AOC-S3916L-H16IR | $ 954.50 | 2 | AOC with SAS3916 controller (U3) and 240PD RAID Key (U39) (One per Node) | ||
| Network Cards | More | 0 | AOC Compatibility Matrix (Select Storage & X12) | |||
| Network Cards | AOC-SGP-I2 | $ 106.00 | 0 | Standard LP 2-port GbE, Intel 82575 | ||
| Network Cards | AOC-S40G-I2Q | 0 | Standard LP 2-port 40GbE controller, Intel Fortville XL710 | |||
| Network Cards | AOC-S25G-M2S | $ 326.50 | 0 | Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN | ||
| SuperCap Kit (Need Both items) | BTR-CVPM05 | 2 | Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender(Optional)(One per Node) | |||
| SuperCap Kit (Need Both items) | MCP-240-94711-0N | $ 37.50 | 2 | SC947 MB Node Supercap holder module,RoHS (Optional) (One per Node) | ||
| TPM Module | AOM-TPM-9670V | $ 52.00 | 0 | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor | ||
| TPM Module | AOM-TPM-9671V | $ 52.00 | 0 | SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
