| Motherboard |
| Motherboard | Super X12DSC-6 |
| Processor |
| CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Dual Socket P+ (LGA-4189) |
| Support CPU TDP 120-205W |
| Cores | Up to 36C/72T; Up to 54MB Cache |
| System Memory |
| Memory | Memory Capacity: 16 DIMM slots |
| Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM |
| Up to 4TB: 16x 256 GB DRAM |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices |
| Chipset | Intel® C621A |
| Network Connectivity | 2x 10GbE BaseT with X550 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 2 RJ-45 10Gbase-T ports |
| USB | 2 USB 3.0 port(s) (2 Rear_USB) |
| Video | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 rear) |
| DOM | 2 Super DOM (Disk on Module) port |
| System BIOS |
| BIOS Type | AMI 128MB SPI Flash EEPROM |
| Management |
| Software | Watch Dog |
| NMI |
| SuperDoctor® 5 |
| IPMI 2.0 |
| SUM |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 4+1 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 4U Rackmount |
| Model | CSV-947STS-R2K05P |
| Dimensions and Weight |
| Height | 7" |
| Width | 17.6" |
| Depth | 34.1" |
| Package | 29.92" (H) x 31.89" (W) x 44.88" (D) |
| Weight | Net Weight: 118 lbs (53.5 kg) |
| Gross Weight: 170.5 lbs (77.3 kg) |
| Available Color | Black |
| Drive Bays / Storage |
| Hot-swap | 2x 2.5" 7mm drive bays |
| 60x 3.5" hot-swap SATA3/SAS3 drive bays (4x 2.5" NVMe dedicated) |
| M.2 | 2 M.2 NVMe |
| System Cooling |
| Fans | 6 Heavy Duty 8cm Fan(s) |
| Power Supply |
| Dimension (W x H x L) | 73.5 x 40 x 265 mm |
| AC Input | 100-127Vac / 50-60Hz |
| 200-240Vac / 50-60Hz |
| DC Input | 2000W: 230-240Vdc |
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) |
| Max: 166.7A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 2.1A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 90% (Non-Condensing) |
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
| Product SKUs |

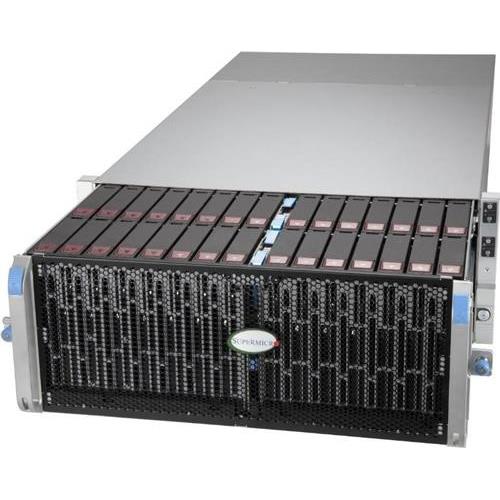

| Product SKUs | SSG-640SP-E1CR60 |
| Expansion Slots |
| PCI-Express (PCIe) | 3 PCIe 4.0 x16 LP slot(s) |
