| Main Specifications |

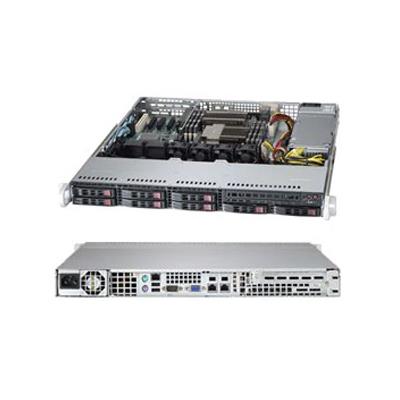

| Device Type | SuperServer 1027B-MTF |

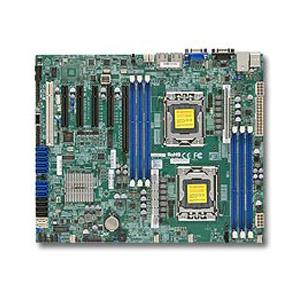

| Built-in Devices | Super X9DBL-iF |
| Form Factor | 1U Rackmount - CSE-113MTQ-600CB |
| Dimensions (WxDxH) | Width 17.2" (437mm) x Height 1.7" (43mm) x Depth 19.98" (507.5mm) |
| Weight | 36 lbs (18.1kg) |
| Enclosure Color | Black |
| Processor |
| Compatible Processors | Intel Xeon processor E5-2400 v2, 50W to 95W E5-2400 support |
| Compatible Socket | Dual Socket B2 (LGA 1356) |
| Cache/Cores | Up to 25MB |
| System Bus | QPI up to 8 GT/s |
| System Memory |
| Memory Capacity | 6x 240-pin DDR3 DIMM slots, Supports up to 192 GB DDR3 ECC Registered memory (R/LRDIMM), Supports up to 48 GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type | 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | 1.5 V, 1.35 V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel C602 Chipset |
| SATA/SAS | SATA 2.0 3Gbps with RAID 0, 1, 5, 10 |
| SATA 3.0 6Gbps with RAID 0, 1, 5, 10 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, Nuvoton WPCM450 BMC |
| Network Controllers | Intel 82574L Gigabit Ethernet, Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output, 1x Realtek RTL8201F PHY (dedicated IPMI) |
| Graphics | Matrox G200eW |
| Input / Output |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port |
| USB(s) | 7x USB 2.0 ports total (2 rear + 4 via header + 1 Type A) |
| Video Output | 1 VGA port |
| Serial Port / Headers | 2x Fast UART 16550 ports / 1 rear and 1 header |
| Front Panel |
| Buttons | Power On/Off button, System Reset button, UID button |
| LEDs | Power status LED, HDD activity LED, 2x Network activity LEDs, Universal Information (UID) LED |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | (Both CPUs need to be installed for full access to PCI-E slots. See manual for details.) |
| 1x PCI-E 3.0 x16 Full-height Half-length |
| Drive Bays |
| Hot-swap | 8x Hot-swap 2.5" SATA HDD trays |
| System Cooling |
| Fans/Air Shroud | 4x 40x28mm high-efficiency PWM fans (Optional 2x fans for AOC cooling) |
| Air Shroud | 1x MCP-310-19009-0N |
| Power Supply |
| Power Supply | 600W High-Efficiency Power Supply w/PMBus 1.2, I2C, PFC, and Digital Switching |
| Certification | 80PLUS Platinum Certified |
| System BIOS |
| BIOS Type | 64Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | Plug and Play (PnP), APM 1.2, PCI 2.3, ACPI 1.0 / 2.0 / 3.0 / 4.0, BIOS rescue hot keys, USB Keyboard support, SMBIOS 2.7.1, UEFI |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Parts List - (Items Included) |
| Motherboard / Chassis | 1x MBD-X9DBL-iF/CSE-113MTQ-600CB |
| Cable(s) | 2x CBL-0157L, 2x CBL-0186L |
| Riser Cards | 1x RSC-RR1U-E16 |
| Heatsink / Retention | 1x SNK-P0037P, 1x SNK-P0041 |
| Backplane |
| SAS/SATA HDD Backplane | 1x BPN-SAS-113TQ |
