| Main Specifications |
| Device Type | Storage Server |
| Form Factor | 1U Rackmount - CSE-513BTS-505WB |
| Built-in Devices | Super X11SDW-16C-TP13F |
| Dimensions (WxDxH) | Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 15" (381mm) |
| Weight | Gross Weight: 25 lbs (11.34 kg) - Net Weight: 14 lbs (6.35 kg) |
| Enclosure Color | Black |
| Processor |
| Processor Installed | Intel Xeon D-2183IT Processor, 2.20GHz 16-Core/32 Thread |
| System Memory |
| Memory Installed | 64GB Memory |
| Drive Bays |
| Hard Drive Installed | 1x 240GB Solid-state Drive (SSD) |
| On-Board Devices |
| Chipset | System on Chip (SoC) |
| SATA/SAS | SATA3 (6Gbps) ports via SoC controller |
| Network Controllers | Dual 10G SFP+ via SoC, Dual 10GBase-T via Intel X557, 8x 1GbE with Intel I350-AM4, Single 1GbE with Intel I210 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | VGA via Aspeed AST2500 BMC |
| Input / Output |
| SATA | 4 SATA3 (6Gbps) ports |

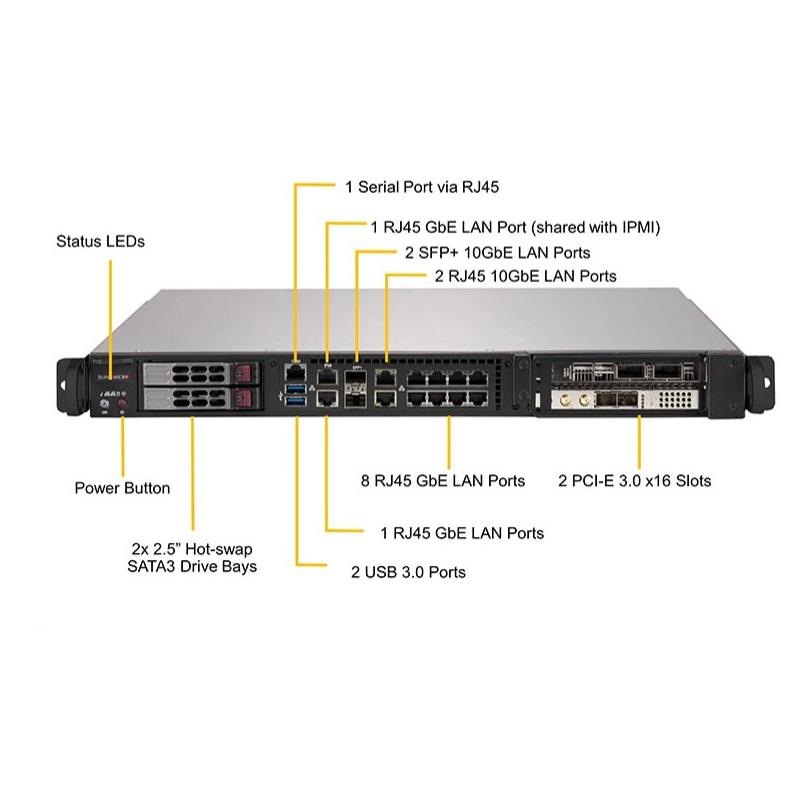

| LAN | 9 RJ45 Gigabit Ethernet LAN ports, 2 RJ45 10GbE LAN ports, 2 10G SFP+ LAN ports, 1 RJ45 Dedicated IPMI LAN port |
| USB(s) | 2 USB 3.0 ports (front) |
| Video Output | 1 VGA port |
| Serial Port / Headers | 1 COM via RJ45 |
| System BIOS |
| BIOS Type | 128Mb SPI Flash with AMI BIOS |
| Management |
| Software | Intel Node Manager, IPMI 2.0, NMI, SUM, Watch Dog, SuperDoctor 5 |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | Power LED, Hard drive activity LED, Network activity LEDs, System Information LED |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2 PCI-E 3.0 x16 (FHFL) slots |
| M.2 | 1 M.2 M-Key , 2280/22110, 1 M.2 E-Key , 2230, 1 M.2 B-Key , 3042 |
| Drive Bays / Storage |
| Drive Bays Configuration | Hot-swap: 2 Hot-swap 2.5" drive bays |
| Internal: 2 Internal 2.5" SSD bays (optional) |
| System Cooling |
| Fans/Air Shroud | 4x 40x28mm PWM fans (up to 6) |
| Power Supply |
| Power Supply | 500W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC |
| Certification | 80 Plus Platinum Certified |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 45°C (32°F to 113°F) |
| Miscellaneous |
| Environmental Compliance | RoHS Compliant |
| Parts List - (Items Included) |
| Motherboard / Chassis | 1x MBD-X11SDW-16C-TP13F / CSE-513BTS-505WB |
| Backplane | 1x BPN-SAS3-826TQ-B2B |
| Cable(s) | 2x CBL-0473L, 1x CBL-CDAT-0662, 1x CBL-CDAT-0850, 1x CBL-0160L, 1x CBL-0335L |
| Fan(s) | 2x FAN-0154L4, 4x FAN-0154L4 |
| Parts | 1x MCP-260-00144-0B, 1x MCP-260-00078-0B, 2x MCP-340-00001-01 |
| Air Shroud | 1x MCP-310-51303-0B |
| Riser Cards | 1x RSC-R1UW-2E16 |
| Power Supply Number | 1x PWS-505P-1H |
| Drive Tray(s) | 2x MCP-220-00180-0B |
| Front Panel | 1x MCP-280-80901-0N |
| Rail Set | 1 set MCP-290-00102-0N, 1 set MCP-290-00108-0B |
| Fan Holders | 1x MCP-320-00060-0N |
