- Supermicro AOC-CTG-i1S 1-Port 10 Gigabit 10GbE Ethernet Adapter

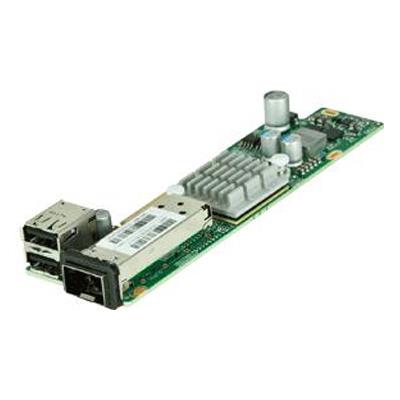

Supermicro AOC-CTG-i1S 1-Port 10 Gigabit 10GbE Ethernet Adapter
1-Port 10 Gigabit 10GbE Ethernet Adapter MicroLP - PCI-E 2.0 x8 - Single SFP+ Port and Dual USB 2.0 Ports - (Integration service with a SuperServer REQUIRED)
• Single SFP+ Connector
• MicroLP Form Factor
• PCI Express 2.0 (up to 5GT/s)
• Intel?QuickData Technology
• VMDq, Next-Generation VMDq, and
• PC-SIG SR-IOV for Virtualized Environments
• Load Balancing on Multiple CPUs
• iSCSI Remote Boot Support
• Fibre Channel over Ethernet (FCoE) Support
• Support for most Network Operating Systems (NOSs)
• Support both DAC Twin Axial and LC Fiber-Optic Cables
• RoHS compliant 6/6
Extra Specifications for Supermicro AOC-CTG-i1S 1-Port 10 Gigabit 10GbE Ethernet Adapter
| Add-on Card | ||
| Add-on Card | The AOC-CTG-i1S 10 Gigabit Ethernet Adapter is the most flexible and scalable Ethernet adapter for today's demanding data center environments. Based on the Intel® 10GbE network controller 82599EN, the AOC-CTG-i1S addresses the demanding needs of the next-generation data center by providing features for virtualization, flexibility for LAN and SAN networking, and proven reliable performance. The AOC-CTG-i1S is designed in a small microLP form factor to fit Supermicro Twin server systems. This product is only available through Supermicro. | |
| Compliance | ||
| RoHS | RoHS Compliant 6/6, Pb Free | |
| Downloads | ||
| User's Guide | [ https://www.supermicro.com/manuals/other/AOC-CTG-i1S.pdf ] (2.20MB) | |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-CTG-i1S.pdf ] | |
| Driver | Choose the latest CDR-NIC folder, and then click on Intel folder for driver [ Download Site ]:https://www.supermicro.com/wdl/Networking_Drivers/ | |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ Download Site ]:https://www.supermicro.com/wdl/Networking_Drivers/ | |
| Compatibility Matrices | ||
| Servers | Supermicro MicroCloud and Twin Server Systems with microLP expansion slot See MicroLP Compatibility Matrix :https://www.supermicro.com/support/resources/aoc/microLP_compatibility.cfm | |
| Cables & Transceivers | Networking Cables & Transceivers :https://www.supermicro.com/support/resources/AOC/Networking_Cables_Transceivers_Compatibility.cfm | |
| Specification | ||
| Specification | • General - Intel® 82599EN 10GbE controller - Compact size microLP form factor - Single SFP+ port and dual USB 2.0 ports - PCI-E x8 2.0 (5GT/s) - Load balancing on multiple CPUs - iSCSI remote boot support - Fibre Channel over Ethernet (FCoE) Support - Intel® PROSet Utility for Windows® Device Manager • I/O Features - Intel QuickData Technology: DMA engine that enhances - Data acceleration and lowers CPU usage - Direct Cache Access (DCA) to avoid cache misses - MSI-X support to minimize the overhead of interrupts - Allowing load-balancing between multiple cores/CPUs - Tx/Rx IP, SCTP, TCP and UDP checksum offloading Capabilities (IPv4, IPv6) - Receive and Transmit Side Scaling for Windows - environments and Scalable I/O for Linux environments • Virtualization Features - Supports virtualization features such as VMDq, - Next-generation VMDq (64 queues per port) and - PC-SIG SR-IOV implementation - IPv6 Offloading - Advanced Packet Filtering - VLAN support to allow creation of multiple VLAN segments - VXLAN through Software • Manageability Features - Preboot eXecution Environment (PXE) support - Simple Network Management Protocol (SNMP) and Remote - Network Monitoring (RMON) statistics counters - iSCSI remote boot • OS Support - Windows® 7, 2003, 2008, 2008 R2, Vista - RedHat EL, SuSe SLES - FreeBSD - VMWare • Cables Support - SFP+ direct attached twin axial cables, up to 7 meters - LC-LC fiber-optic cables (optional SFP+ transceiver is required) • Operating Conditions - Operating temperature: 0°C to 55°C (32°F to 131°F) • Physical Dimensions (L x W) - Card PCB dimensions (without end brackets): 12.32cm (4.85in) x 3.90cm (1.54in) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
