- Supermicro CSE-213BAC8-R1K23LPB Server Chassis 2U Rackmount 1200W/1000W Power Supply

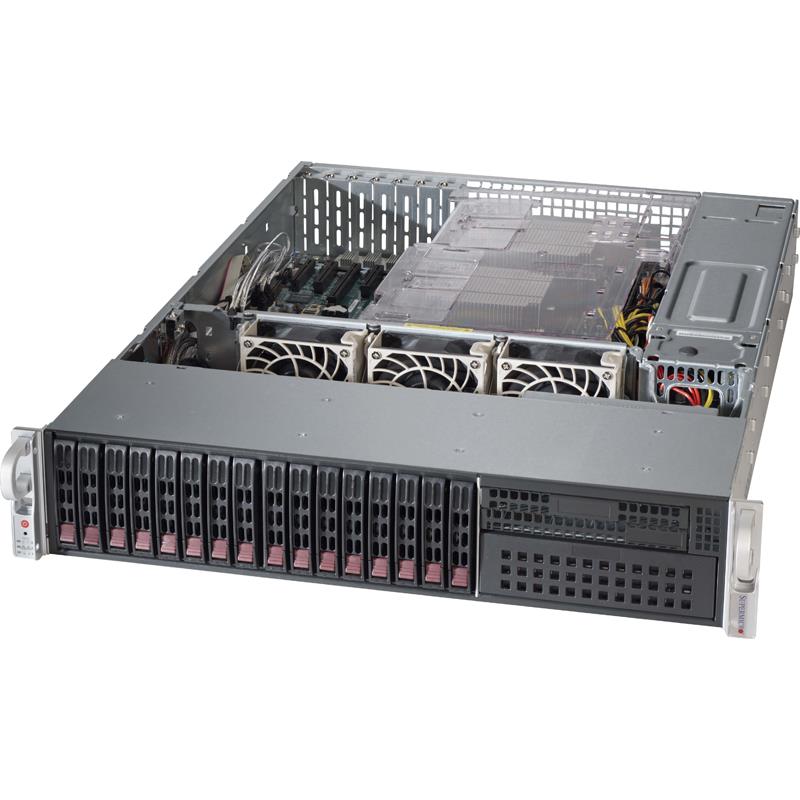

Supermicro CSE-213BAC8-R1K23LPB Server Chassis 2U Rackmount 1200W/1000W Power Supply
Supports dual and single Intel and AMD processors
Sixteen 2.5" hot-swap SAS or SATA drives with SES2
Ideal for motherboard sizes of E-ATX, ATX form factors
The chassis includes seven Low profile I/O Expansion Slot
Rackmount 2U Chassis for Single or Dual Intel/AMD E-ATX or ATX Motherboards, with SAS3 Backplane, 7x Low Profile Expansion Slots, Up to 16x 2.5in Hot-Swap drive bays, 1200W Redundant Power Supply - Black
The Supermicro SC213 chassis features a direct-attached SAS3 backplane supporting sixteen 2.5" SAS/SATA hard disk drives. It has dual highly efficient redundant power supplies, an optional DVD drive, two USB ports, three 80mm fans, and room for seven PCI Express expansion cards.
Key Features
2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
16 x 2.5" hot-swap SAS3/SATA drive bay, 1 x 5.25" drive bay, optional 2 x 2.5" hot-swap SAS3/SATA drive bay
16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
7x Low profile I/O Expansion Slot
3 x 8cm high-performance PWM fan(s)
Extra Specifications for Supermicro CSE-213BAC8-R1K23LPB Server Chassis 2U Rackmount 1200W/1000W Power Supply
| Main Specifications | ||
| Device Type | SuperChassis 213BAC8-R1K23LPB | |
| Form Factor | 2U chassis | |
| Supported Motherboards | Supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards | |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 24.8" (630 mm) | |
| Weight | 60 lbs (27.22 kg) | |
| Enclosure Color | Black | |
| Processor | ||
| Compatible Processors | Dual and Single Intel and AMD processors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 7x Low profile I/O Expansion Slot | |
| Expansion Bays Total (Free) | 16 x 2.5" hot-swap SAS3/SATA drive bay | |
| 1 x 5.25" drive bay | ||
| Optional 2 x 2.5" hot-swap SAS3/SATA drive bay | ||
| Drive Bays | ||
| Peripheral Bays | Optional 1 x slim DVD-ROM drive bay | |
| Optional 2 x USB 2.0 ports | ||
| Optional 1 x COM port tray | ||
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | 2 Network Activity LEDs, HDD activity LED, Power Status LED, Power Fail LED, System Information LED | |
| System Cooling | ||
| Fans | 3 x 8cm high-performance PWM fan(s) | |
| Air Shroud | 1x MCP-310-29001-0N | |
| System Monitoring | ||
| System Monitoring | Chassis intrusion switch | |
| Power Supply | ||
| Power Supply | 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm | |
| Certification | 80PLUS Titanium Certified | |
| Regulatory (Power Supply) | ||
| Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL | |
| Environmental | ||
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) | ||
| Operating Relative Humidity Range: 8% - 90% (non-condensing) | ||
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) | ||
| Parts List - (Items Included) | ||
| Backplane | 1x BPN-SAS3-213A-N8 | |
| Cable(s) | 1x CBL-0071L, 1x CBL-0217L, 2x CBL-PWCD-0160-IS, 3x CBL-PWEX-1069 | |
| Parts | 7x MCP-120-00115-0N, 1x MCP-290-00088-0N, 1x MCP-290-82605-0V, 1x MCP-230-82602-0N, 1x MCP-290-00007-01 | |
| Fan(s) | 3x FAN-0206L4 | |
| Front Panel | 1x FPB-FP826-D, 1x TB826 | |
| Drive Trays | 1x MCP-220-00009-01, 1x MCP-220-00023-01, 16x MCP-220-00047-0B | |
| Power Distributor(s) | 1x PDB-PT216-2824 | |
| Power Supply Number | 2x PWS-1K23A-1R | |
| Mounting Rails | 1x MCP-290-00053-0N | |
| Rear Window | 1x MCP-240-82608-0N | |
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
