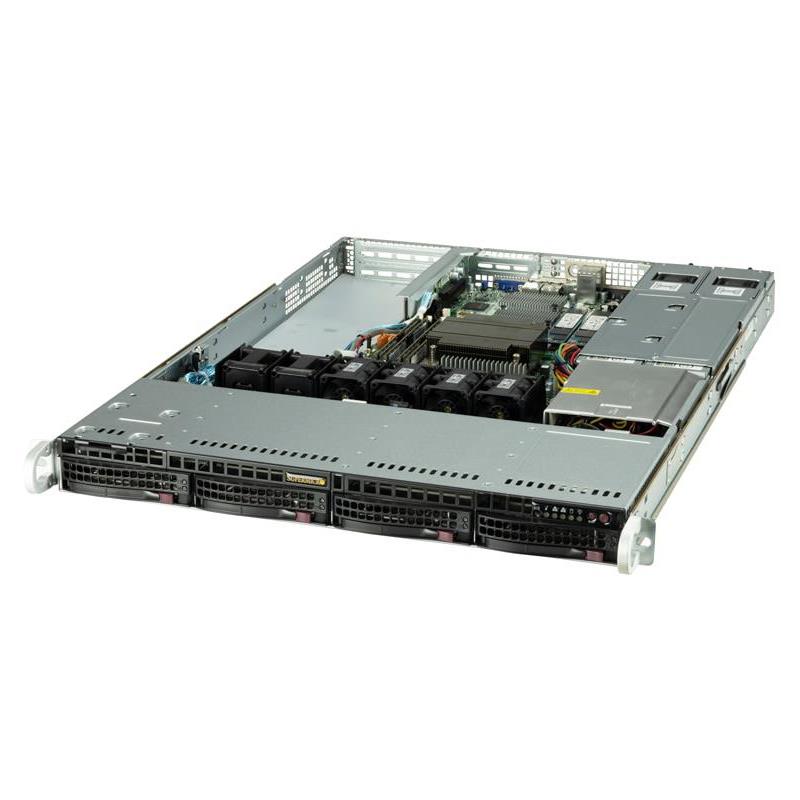

- Supermicro SYS-510T-WTR UP 1U Barebone Single Intel Xeon E-2300 series and 10th Gen. Pentium Processors Up to 128GB DRAM SATA3, NVMe M.2 Dual 10GbE
Supermicro SYS-510T-WTR UP 1U Barebone Single Intel Xeon E-2300 series and 10th Gen. Pentium Processors Up to 128GB DRAM SATA3, NVMe M.2 Dual 10GbE
• Virtualization
• Cloud Computing
• Enterprise Server
• Data Center Optimized
Barebone 1U Rackmount SuperServer Single Intel Xeon processor E-2300 series, 10th Gen. Pentium Processors, Intel C256 Chipset, Up to 128GB in 4 DIMM Slots, SATA3, NVMe M.2, 4x 3.5in SATA drive bays, 2x 2.5" drive bays, 2x NVMe M.2 (with Xeon CPU) or 1x NVMe M.2 (with Pentium CPU), 2x 10GbE BaseT LAN Ports, 500W Redundant Power Supply (CSE-815TQC4-R504WBP7 + X12STW-TF)
This product is no longer available.
1. Single Socket H5 (LGA-1200) supports Intel® Xeon® E-2300 series, Intel® Pentium® processors
2. 4 DIMMs; Up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz
3. 1 PCIe 4.0 x16 or 2 PCIe 4.0 x8 (FHFL); 1 PCIe 3.0 x4 (in x8 LP)
4. Intel® Ethernet Controller X550 2x 10GbE RJ45
5. Redundant Platinum 500W Power Supply
Extra Specifications for Supermicro SYS-510T-WTR UP 1U Barebone Single Intel Xeon E-2300 series and 10th Gen. Pentium Processors Up to 128GB DRAM SATA3, NVMe M.2 Dual 10GbE
| Motherboard | ||
| Motherboard | Super X12STW-TF | |
| Processor | ||
| CPU | Support CPU TDP 95W | |
| Single Socket H5 (LGA 1200) | ||
| Support Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors | ||
| Cores | Up to 8C/16T; Up to 16MB Cache | |
| System Memory | ||
| Memory | Memory Capacity: 4 DIMM slots | |
| Memory Type: 3200/2933/2666MHz ECC DDR4 UDIMM | ||
| Up to 128GB: 4x 32 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Yes | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support (Port 0-5) | |
| Chipset | Intel® C256 | |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| SATA | 8 SATA (6Gbps) port(s) | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 10GbE LAN ports | ||
| USB | 4 USB 3.2 Gen 1 port(s) (2 headers; 2 rear) | |
| 6 USB 2.0 port(s) (4 headers; 2 rear) | ||
| 1 USB 3.2 Gen 2 port(s) (1 Type A) | ||
| Video | 1 VGA port(s) | |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) | |
| DOM | 2 Super DOM (Disk on Module) port with built-in power | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | NMI | |
| KVM with dedicated LAN | ||
| Redfish API | ||
| Intel® Node Manager | ||
| SUM | ||
| SSM | ||
| SPM | ||
| IPMI2.0 | ||
| Power Configurations | ACPI/APM Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 6 + 2 + 1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-815TS-R504WBP7 | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 25.6" (650mm) | |
| Package | 8.5" (H) x 23.5" (W) x 33.7" (D) | |
| Weight | Net Weight: 24 lbs (10.89 kg) | |
| Gross Weight: 48 lbs (21.77 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | UID button | |
| System Reset | ||
| Power On/Off | ||
| LEDs | Power status | |
| System information | ||
| Device Activity | ||
| LAN 1 Activity | ||
| LAN 2 Activity | ||
| Drive Bays / Storage | ||
| Drive Bays | 4x 3.5" SATA drive bays | |
| M.2 | M-key, 2280, 22110 | |
| 1x PCIe 3.0 x 4 | ||
| 1x PCIe 4.0 x 4 (with Xeon CPU) | ||
| Peripheral Bays | 2x 2.5" drive bays | |
| System Cooling | ||
| Fans | 2 AOC cooling Fan(s) (optional) | |
| 4 counter-rotation PWM 40x40x56mm Fan(s) | ||
| Power Supply | ||
| Total Output Power | 500W | |
| Dimension (W x H x L) | 54.5 x 40.25 x 320 mm | |
| +12V | Max: 42A / Min: 0.5A | |
| 5V SB | Max: 3A / Min: 0A | |
| Output Type | Gold Finger Connector | |
| Certification | Platinum Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-510T-WTR | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe 4.0 x16 or x8 slot(s) | |
| 1 PCIe 4.0 x0 or x8 (FHFL) [Auto Switch with Slot 1] slot(s) | ||
| 1 PCIe 3.0 x4 slot(s) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12STW-TF | 1 | Super X12STW-TF Motherboard | |
| Motherboard / Chassis | CSE-815TS-R504WBP7 | 1 | 1U Chassis | |
| *Rail Set | MCP-290-00016-0N | 1 | 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N | |
| *Rail Set | MCP-290-00054-0N | 1set | Rail set, quick/quick, optional for 1U 17.2 |
