Supermicro SYS-110P-FRDN2T IoT 1U Barebone Single Intel Xeon Scalable Processors 3rd Generation Up to 2TB RDIMM/LRDIMM SATA3 RAID Dual 10GbE

Supermicro SYS-110P-FRDN2T IoT 1U Barebone Single Intel Xeon Scalable Processors 3rd Generation Up to 2TB RDIMM/LRDIMM SATA3 RAID Dual 10GbE

• Multi-Access Edge Computing
• Flex-RAN, Open-RAN vBBU
• Artificial Intelligence (AI) on Edge, Machine Learning (ML)

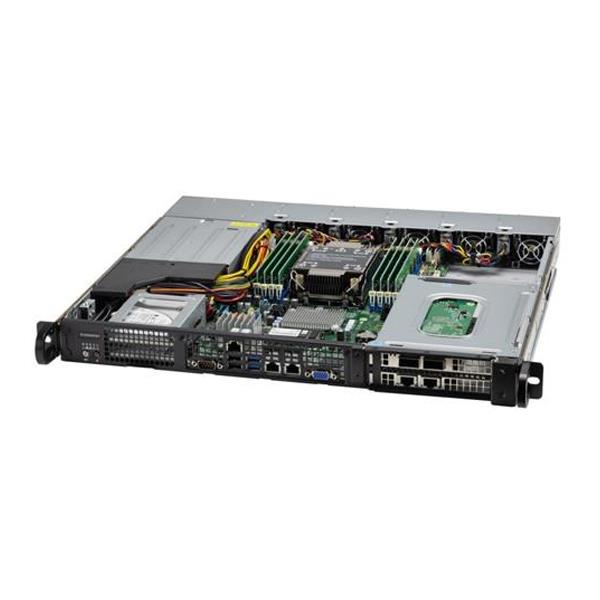

Barebone 1U Rackmount SuperServer, Support Single Socket P+ (LGA-4189), Supporting Intel Xeon Scalable Processors 3rd Generation (Up to 32C/64T, Up to 48MB Cache). Up to 2TB in 8 DIMM slots, RDIMM/LRDIMM, Chipset: Intel C621A, SATA3, RAID 0,1, 2x 2.5in SATA drive bays, 1x M.2 NVMe OR 1x M.2 SATA3, 2x 10GbE BaseT LAN Ports, IPMI LAN port, 2 SuperDOM With Built-in power, 600W Redundant Power Supply (CSE-515M-R601 + X12SPW-TF) - SYS-110P-FRDN2T

$ 1,793.00$ 1,793.001793.0USD

$ 1,793.00

Option not available

InStock
18 lb

    This combination does not exist.

    Add to Cart

    1. Socket P+ (LGA-4189) support 3rd Gen Intel® Xeon® Scalable processors
    2. 8x DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM
    3. 2x PCIe Gen4 x16 FHFL slot
    4. 2x 2.5" drive bays; 1x M.2 NVMe OR 1x M.2 SATA3
    5. 5x hot-swappable counter rotated fans with optimal fan speed control
    6. Redundant 600W DC Power Supplies
    7. Front-access I/O: 2x 10GBase-T, 1x Dedicated IPMI, 2x USB3.0, 2x USB2.0, 1x COM, 1x VGA

    Extra Specifications for Supermicro SYS-110P-FRDN2T IoT 1U Barebone Single Intel Xeon Scalable Processors 3rd Generation Up to 2TB RDIMM/LRDIMM SATA3 RAID Dual 10GbE

    Motherboard
    MotherboardSuper X12SPW-TF
    Processor
    CPU3rd Gen Intel® Xeon® Scalable processors
    Single Socket P+ (LGA-4189)
    Support CPU TDP 85-205W
    CoresUp to 32C/64T; Up to 48MB Cache
    System Memory
    MemoryMemory Capacity: 8 DIMM slots
    Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
    Up to 2TB: DRAM
    Memory Voltage1.2 V
    Error DetectionECC
    On-Board Devices
    SATASATA3 (6Gbps); RAID 0/1 support
    ChipsetIntel® C621A
    Network Connectivity2x 10GbE BaseT port(s)
    IPMISupport for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Input / Output
    Video1 VGA port(s)
    Management
    SoftwareSuperDoctor® 5
    IPMI 2.0
    Power ConfigurationsPower-on mode for AC power recovery
    ACPI Power Management
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory
    FANStatus monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    Fans with tachometer monitoring
    TemperatureMonitoring for CPU and chassis environment
    CPU thermal trip support, PEPI
    Chassis
    Form Factor1U
    ModelCSE-515M-R601
    Dimensions and Weight
    Height1.7" (43mm)
    Width17.2" (437mm)
    Depth15.7" (399mm)
    Package8" (H) x 27" (W) x 24" (D)
    WeightGross Weight: 18 lbs (8.16 kg)
    Available ColorBlack
    Front Panel
    ButtonsUID button
    Power On/Off
    LEDsHDD activity
    Power status
    LAN1 activity
    System information
    LAN2 activity
    Drive Bays / Storage
    Drive Bays2x 2.5" SATA drive bays
    M.21 M.2 NVMe OR 1 M.2 SATA3
    M-Key, 2280/22110
    System Cooling
    Fans5 heavy duty fans with optimal fan speed control
    Air Shroud1 Air Shroud(s)
    Power Supply
    Total Output Power600W : (-44) - (-65) Vdc
    Dimension (W x H x L)54.5 x 40 x 220 mm
    +12VMax: 50A
    5V SBMax: 3A / Min: 0A
    Certification
    Operating Environment
    Environmental Spec.Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    Product SKUs
    Product SKUsSYS-110P-FRDN2T
    Expansion Slots
    PCI-Express (PCIe)2 PCIe 4.0 x16 FHFL slot(s)
    NamePart NumberQty.Description
    Motherboard / ChassisMBD-X12SPW-TF1Super X12SPW-TF Motherboard
    Motherboard / ChassisCSE-515M-R60111U Chassis
    Cable CBL-0483L27pin SATA (STR to STR), 29cm, PBF
    Cable CBL-OTHR-1214-242FAN cbl,1x4,M, to 1x4,F,14CM,3A/pin,22AWG,RoHS
    Cable CBL-PWCD-0974248VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS
    Fan FAN-0207L4240x40x56 mm, 13K-11K RPM,Counter-rotating, Hot-swappable Fan
    Air Shroud MCP-310-51507-0B1Mylar Air Shroud for SC515M + X11SPW/X12SPW
    Riser Card RSC-W-66G411U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS
    Software SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention SNK-P0077V1X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
    *Power Supply PWS-601D-1R2-48V DC input, 12V and 5Vsb 600W output for 1U redundancy
    *Power Distributor PDB-PT515M-242411U support redundancy up to 800W for SC515M chassis with ATX
    Note:

    • Parts with * are inside the chassis

    • Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

    NamePart NumberPriceAdd to CartQty.Description
    TPM security moduleAOM-TPM-9671V$ 56.500SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    TPM security moduleAOM-TPM-9670V$ 56.500SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
