- Supermicro CSE-216BE2C-R609JBOD 2U Rackmount 600W/650W Power Supply

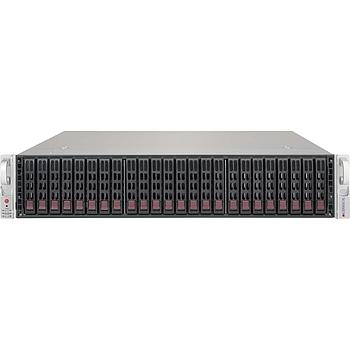

Supermicro CSE-216BE2C-R609JBOD 2U Rackmount 600W/650W Power Supply
Ideal for Cloud backup, data Replication
Includes three 80 mm heavy-duty, hot-swap fans
Equipped with Redundant, Platinum Power supply
Offers twenty-four hot-swap 2.5" SAS/SATA HDD bays
2U Rackmount 600W/650W Redundant Platinum Level Power Supply, JBOD storage, up to 24x 2.5in hot-swap HDD bay for JBOD solution (CSE-216BE2C-R609JBOD)
The SC216B JBOD storage enclosure is designed to scale your Supermicro server storage expansion capacity. In a 2U form factor, it offers twenty-four hot-swap 2.5" SAS/SATA hard drive bays, without compromising superior cooling capabilities. The CSE-216BE2C-R609JBOD model offers two expanders for high availability. Just install hard drives and use an external SAS cable and connect to a host bus adapter (HBA) on the head node server. The storage capacity can be expanded instantly and reduce the initial investment. The chassis is equipped with a redundant, efficient power supply for outstanding power savings, with specially designed optimized cooling. Quick-release, tool-less slide rails are available for quick installation.
Key Features
Cloud Backup, Data Replication, or High-Density Archive Storage Applications
2U Storage JBOD Chassis with capacity 24 x 2.5" hot-swappable HDDs bays
Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
1x IPMI port for Remote System Power on/off and system monitoring
Support NTP for time synchronization & RTC battery backup
600W (1+1) 94% efficient Platinum level power supplies
3 x 80mm high efficient hot-swappable fans for best system cooling
Ideal for Cloud backup, data Replication or High-density Archive Storage Applications
Qualified SAS HBA / controller: AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA, AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
Extra Specifications for Supermicro CSE-216BE2C-R609JBOD 2U Rackmount 600W/650W Power Supply
| Main Specifications | ||
| Device Type | JBOD storage chassis | |
| Form Factor | 2U chassis | |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 24.8" (630 mm) | |
| Weight | Net Weight: 31 lbs (14.06 kg) - Gross Weight: 61 lbs (27.67 kg) | |
| Enclosure Color | Black | |
| Expansion / Connectivity | ||
| Expansion Bays Total (Free) | 24 x 2.5" hot-swap HDD bay for JBOD solution | |
| On-Board Devices | ||
| Qualified SAS Controllers | AOC-SAS3-9300-8E, AOC-SAS3-9380-8E | |
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | 24-port 2U SAS3 12Gbps dual-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset Button, Unit Identification (UID) button | |
| LEDs | 1 Network Activity LEDs | |
| System Cooling | ||
| Fans | 3 x 80x38mm hot-swap cooling fan | |
| System Monitoring | ||
| System Monitoring | IPMI | |
| Power Supply | ||
| Power Supply | 600W / 650W 1U Redundant Power Supply | |
| Certification | 80PLUS Platinum Certified | |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC | |
| Environmental | ||
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) | ||
| Operating Relative Humidity Range: 8% - 90% (non-condensing) | ||
| Humidity Range Operating: 5 - 95% (non-condensing) | ||
| Parts List - (Items Included) | ||
| Air Shroud | 1x MCP-310-29001-0N | |
| Hard Drive Backplane | 1x BPN-SAS3-216EL2 | |
| Cable | 1x CBL-0071L, 3x CBL-0088, 2x CBL-0160L, 1x CBL-0182L, 1x CBL-0217L, 1x CBL-CDAT-0601, 1x CBL-NTWK-0587, 4x CBL-SAST-0531, 4x CBL-SAST-0532 | |
| Parts | 1x MCP-230-82602-0N, 1x MCP-290-00088-0N, 7x MCP-120-00062-0N, 1x MCP-260-00011-0N, 1x MCP-320-82601-0N, 1x MCP-120-84702-0N, 1x MCP-120-84705-0N, 1x CSE-PTJBOD-CB3 | |
| Front Panel | 1x FPB-FP826-D, 1x TB826 | |
| Drive Trays | 1x MCP-290-82607-0N, 24x MCP-220-00047-0B | |
| Power Distributor(s) | 1x PDB-PT216-2824 | |
| Power Supply Number | 2x PWS-609P-1R2 | |
| Mounting Rails | 1x MCP-410-00007-0N, 1x MCP-290-00053-0N | |
| Rear Window | 1x MCP-240-82608-0N | |
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
