- Supermicro SYS-740A-T Workstation DP 4U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
Supermicro SYS-740A-T Workstation DP 4U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
• Rendering
• CAD
• Multimedia/Digital Content creation
• Engineering/scientific research
Barebone 4U Tower Rackmount SuperServer, Support Dual Socket P+ (LGA-4189), Supporting Intel Xeon Scalable Processors 3rd Generation (Up to 40C/80T, Up to 60MB Cache per CPU). Up to 2TB in 16 DIMM slots, R/LRDIMM, Support Intel Optane persistent memory 200 series, SATA3 With RAID, 8x 3.5/2.5in SATA (default) drive bays (SAS support requires optional add-on card ), up to 4x NVMe SSD support with optional cables, 2x 1GbE Ethernet Ports (IPMI Shared on LAN), 6 USB 3.2 port, 1 VGA port, 1200W Redundant Power Supply (CSE-745BTS-R1K23BP3 + X12DAI-N6) - SYS-740A-T
1. 3rd Gen Intel® Xeon® Scalable processor support
2. Intel® C621A Chipset
3. 5 PCIe 4.0 x16, 1 PCIe 4.0 x8, 2 NVMe M.2 slots

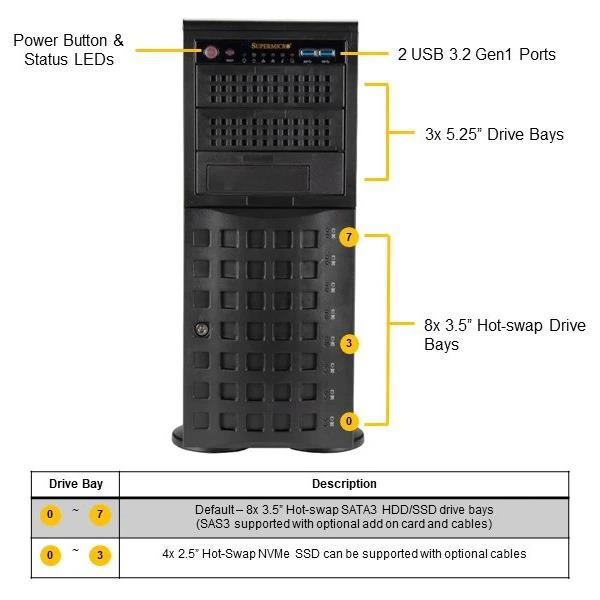

4. 3x 5.25" peripheral drive bays up to 4x NVMe SSD support with optional cables 8x 3.5/2.5" hot-swap SATA (default) drive bays (SAS support requires optional add-on card )
5. Dual 1200W Titanium level power supplies for high powered configurations
6. Supports up to two double width active GPUs 1 VGA, 6 USB 3.2 Gen1 (4 Rear, 2 Front), 1 USB 3.2 Gen2 (Rear), 7.1 HD Audio
Extra Specifications for Supermicro SYS-740A-T Workstation DP 4U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
| Motherboard | ||
| Motherboard | Super X12DAI-N6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Dual Socket P+ (LGA-4189) | ||
| Support CPU TDP 270W * | ||
| Cores | Up to 40C/80T; Up to 60MB Cache | |
| Note | *Certain CPU SKUs are conditionally supported, please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Intel® Optane™ persistent memory 200 series | ||
| Memory Type: 3200MHz ECC DDR4 RDIMM, LRDIMM | ||
| Up to 2TB: 16x 128 GB DRAM | ||
| Up to 3TB: 8x 128 GB DRAM and 8x 256 GB PMem | ||
| Note | Memory DIMM capacities larger than 64GB, LRDIMMs, and PMem are supported under certain conditions, please contact Supermicro Technical Support for additional information about specialized system optimization | |
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 1GbE port(s) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| SATA | 2 SuperDOM port(s) | |
| LAN | 2 RJ45 1GbE (IPMI Shared on LAN port1) | |
| USB | 6 USB 3.2 Gen1 port(s) (2 Front_USB; 4 Rear_USB) | |
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI FLASH ROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| Power Configurations | ACPI/APM Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Tower Rackmount | |
| Model | CSE-745BTS-R1K23BP3 | |
| Dimensions and Weight | ||
| Height | 17.8" (452mm) | |
| Width | 7" (178mm) | |
| Depth | 25.5" (647mm) | |
| Package | 24.6" (H) x 14" (W) x 31.3" (D) | |
| Weight | Net Weight: 59 lbs (26.76 kg) | |
| Gross Weight: 62 lbs (28.12 kg) | ||
| Available Color | black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| Reset button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| Drive Bays / Storage | ||
| Hot-swap | 8x 3.5" hot-swap SATA (SAS/NVMe optional) drive bays (4x 2.5" NVMe hybrid) | |
| M.2 | 2 M.2 NVMe | |
| Peripheral Bays | 3x 5.25" drive bays (optional) | |
| System Cooling | ||
| Fans | 5x 8cm heavy duty fans with optimal fan speed control | |
| Power Supply | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| AC Input | 1200W: 200-240Vac / 7A-8.5A / 50-60Hz | |
| 1000W: 100-127Vac / 12A-15A / 50-60Hz | ||
| Output Type | Gold Finger (19 pair connector) | |
| Certification | Titanium Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-740A-T | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 5 PCIe 4.0 x16 FHFL slot(s) | |
| 1 PCIe 4.0 x8 FHHL slot(s) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12DAI-N6 | 1 | Super X12DAI-N6 Motherboard | |
| Motherboard / Chassis | CSE-745BTS-R1K23BP3 | 1 | 4U Tower Chassis | |
| Backplane | BPN-SAS3-743A-N4 | 1 | 8-port 4U/Tower (SC743/745) 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane, 4 of 8 ports support NVMe devices | |
| Cable | CBL-SAST-0631 | 2 | Cross-over Mini SAS HD to 4 SATA w/SB, S. 55cm. 30AWG | |
| Parts | MCP-260-00115-0N | 1 | Standard I/O Shield for X11DAi with EMI Gasket | |
| Manual | MNL-2378-QRG | 1 | 740A-T Quick Reference Guide | |
| Heatsink / Retention | SNK-P0080AP4 | 2 | 4U Active CPU Heat Sink for X12 Generation DP Workstations and 4U Servers |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| DVD-RW Drive | DVM-LITE-DVDRW24-HBT1 | $ 44.00 | 0 | BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE (adding a DVD drive will limit the total number of SATA drives to 7) | ||
| Gen3 8-ports SAS Raid controller kit | 1x AOC-S3108L-H8IR-16DD and 2x CBL-SAST-0593 • | 0 | Enables the 8x hot-swap drive bays to support SAS drives | |||
| Gen4 8-ports SAS Raid controller kit | 1x AOC-S3908L-H8IR-16DD-P and 1x CBL-SAST-1264-100 | 0 | Enables the 8x hot-swap drive bays to support SAS drives | |||
| Management Software | SFT-DCMS-SINGLE • | 0 | Supermicro System Managment Software Suite - 1 per node | |||
| Middle Fan | FAN-0182L4 • | 0 | 9.4K RPM, Hot-swappable Middle Cooling Fan for supporting GPU, PMem or 128GB and larger memory sizes | |||
| NVMe Cable | CBL-SAST-1154-85 • | 0 | SLIMLINE x8 to 2x Oculink x4 (1 cable supports 2x 2.5" NVMe drives in hotswap drive bays, connects to JNVMe2 on motherboard) | |||
| NVMe Cable | CBL-SAST-0816 • | 0 | SLIMLINE x8 to 2x Oculink x4 (1 cable supports 2x 2.5" NVMe drives in hotswap drive bays, connects to JNVMe1 on motherboard) | |||
| OOB License | SFT-OOB-LIC • | 0 | License for out of band management | |||
| Rail Kit for rackmount | CSE-PT26L-B • | 0 | 4U Chassis Rail Kit (w/ 2pcs Black Chassis Ears) | |||
| Rear Fan | FAN-0180L4 • | 0 | 9.4K RPM, Hot-swappable Rear Exhaust Fan for supporting PMem | |||
| SATA Cable | CBL-SAST-0624 • | 0 | 70cm SATA Cable (1pc required for DVD Drive) | |||
| SATA Power adapter | CBL-0082L • | 0 | Y SPLIT SATA POWER ADAPTER (1pc required for DVD Drive) | |||
| SuperCap kit for AOC-S3108L-H8IR-16DD | 1x BTR-TFM8G-LSICVM02 and 1x BKT-BBU-BRACKET-05 | 0 | SuperCap and mounting bracket for SAS RAID controller AOC-S3108L-H8IR-16DD | |||
| SuperCap kit for AOC-S3908L-H8IR-16DD-P | 1x BTR-CVPM05 and 1x BKT-BBU-BRACKET-05 | 0 | SuperCap and mounting bracket for SAS RAID controller AOC-S3908L-H8IR-16DD | |||
| TPM security module | AOM-TPM-9670V | $ 56.50 | 0 | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
