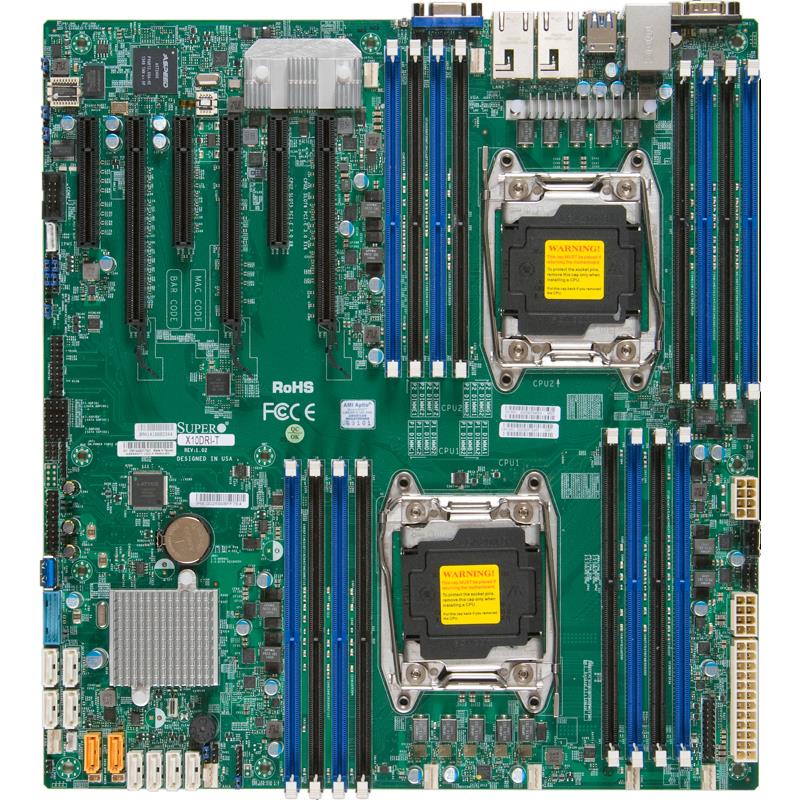

- Supermicro X10DRI-T-BULK Motherboard Dual Socket R3 (LGA 2011) Intel Xeon E5-2600 v3/v4 Processors - BULK
Supermicro X10DRI-T-BULK Motherboard Dual Socket R3 (LGA 2011) Intel Xeon E5-2600 v3/v4 Processors - BULK
• Xeon Board with Intel C612 chipset
• SATA3 Controller 10 port with RAID
• 2x SuperDOM (Disk on Module) ports
• Integrated IPMI 2.0 with Dedicated LAN
Supports Dual Socket R3 (LGA 2011), Supporting Intel Xeon E5-2600 v3/v4 Processors (Up to 22-Core/Up to 55MB Cache) - BULK
This product is no longer available.
The Super X10DRI-T-B motherboard supports dual Intel E5-2600v3/v4 Series Processors (Socket R3) that offer new Intel Microarchitecture 22nm (E5-2600v3/v4) 14nm (E5-2600v4) Process Technology, delivering system performance, power efficiency, and feature sets to address the needs of next-generation computer users. With the PCH C612 built-in, the X10DRI-T-B motherboard supports Hybridclock, Advanced Management Bus Infrastructure, and Intel Node Manager 3.0. This motherboard is ideal for general-purpose server platforms.
• Intel C612 chipset
• Intel X540 Dual port 10GBase-T
• 3 PCI-E 3.0 x16 and 3 PCI-E 3.0 x8
• 10x SATA3 (6Gbps); RAID 0, 1, 5, 10
• Integrated IPMI 2.0 and KVM with Dedicated LAN
• Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots
• 5x USB 3.0 (2 rear, 2 via header, 1 Type A), 6x USB 2.0 (2 rear, 4 via header)
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 / v3 family; QPI up to 9.6GT/s
Extra Specifications for Supermicro X10DRI-T-BULK Motherboard Dual Socket R3 (LGA 2011) Intel Xeon E5-2600 v3/v4 Processors - BULK
| Main Specifications | ||
| Device Type | Xeon Board | |
| Dimensions (WxDxH) | 12" x 13" (30.5cm x 33.0cm) | |
| Form Factor | E-ATX | |
| Processor | ||
| Compatible Processors | Intel Xeon processor E5-2600 v4 / v3 family (up to 145W TDP) | |
| Compatible Socket | Dual Socket R3 (LGA 2011) | |
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM | ||
| DIMM Sizes | RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB | |
| LRDIMM: 64GB, 32GB | ||
| 3DS LRDIMM: 128GB | ||
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel C612 chipset | |
| SATA RAID | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Aspeed AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Intel® X540 Dual Port 10GBase-T | ||
| Graphics | ASPEED AST2400 BMC | |
| SATA | 10 SATA3 (6Gbps) port(s) | |
| TPM | 1x TPM 1.2 20-pin Header | |
| Input / Output | ||
| DOM | 2x SuperDOM (Disk on Module) ports | |
| LAN | 2x RJ45 10GBase-T ports, 1x RJ45 Dedicated IPMI LAN port | |
| Serial Port / Headers | 2x Fast UART 16550 serial, 2x COM Ports (1 rear, 1 header) | |
| USB(s) | 5x USB 3.0 ports (2 rear + 2 via header + 1 Type A) | |
| 6x USB 2.0 ports (2 rear + 4 via headers) | ||
| Video Output | 1 VGA port | |
| Chassis Optimized for | ||
| 2U Chassis | SC213A-R740LPB, SC826BA-R920LPB, SC826BE1C-R920LPB | |
| 3U Chassis | SC732D4F-903B, SC732i-865B, SC835TQ-R920B, SC836BA-R1K28B | |
| Tower / 4U Rackmount | SC743TQ-1200B, SC842TQ-865B, SC846BA-R920B, SC846BE1C-R1K28B, SC847BE1C-R1K28LPB | |
| Important Chassis Notes | To support the new generation Intel® Xeon® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details. | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 3 PCI-E 3.0 x8 | |
| 3 PCI-E 3.0 x16 | ||
| System BIOS | ||
| BIOS Features | Plug and Play (PnP), APM 1.2, PCI 2.3, ACPI 1.0 / 2.0 / 3.0 / 4.0, USB Keyboard support, SMBIOS 2.7.1, UEFI 2.3.1 | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| Management | ||
| Power Configurations | ACPI / APM Power Management, Power-on mode for AC power recovery | |
| Software | Intel® Node Manager 3.0, IPMI 2.0, SPM, SUM, SuperDoctor® 5, NMI, Watch Dog | |
| Environmental Parameters | ||
| Operating Temperature | Operating Temperature Range 10°C - 35°C (50°F - 95°F) | |
| Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) | ||
| Operating Relative Humidity Range 8% - 90% (non-condensing) | ||
| Non-Operating Relative Humidity Range 5% - 95% (non-condensing) | ||
