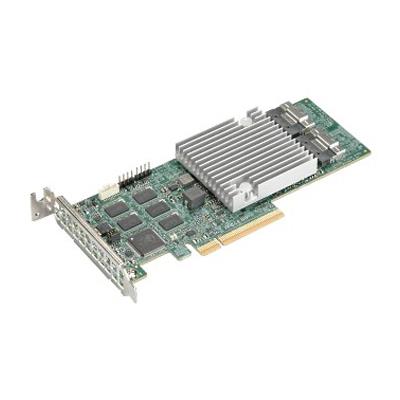

Supermicro 16-Port SAS3 12Gb/s & SATA3 6Gb/s Gen4 PCIe x8 Hardware RAID 0, 1, 1E, 5, 6, 10, 50 & 60, AOC-S3916L-H16IR-32DD+

Supermicro 16-Port SAS3 12Gb/s & SATA3 6Gb/s Gen4 PCIe x8 Hardware RAID 0, 1, 1E, 5, 6, 10, 50 & 60, AOC-S3916L-H16IR-32DD+

  • RAID cards are built on the Broadcom SAS IC technology

  • 8GB DDR4 onboard cache memory, TFM – Included on-board

  • RAID controller card support high capacity storage applications

  • 16 internal SAS connectors for high-performance storage connectivity

Storage Controller 16-Port 12Gb/s, PCIe x8 Gen4, ROC -LP, 32 HDD w/expandable backplanes, RoHS - Custom Firmware Modified SATA parameter for SSG-610P-ACR12N4H

$ 807.00$ 807.00807.0USD

$ 807.00

Option not available

InStock
1 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    Key Features


    • Low profile x8 PCIe Gen 4.0 root complex interface

    • Supports RAID 0, 1, 5, 6, 10, 50, 60

    • 8GB DDR4 onboard cache memory – 2666MHz

    • Supports 3.0, 6.0 and 12.0 Gb/s SAS data transfer rates and 3.0 & 6.0 Gb SATA

    • Support for MCTP over PCIe

    • Cachevault to protect onboard cache memory

    • Supercap - BTR-CVPM05 (Optional)

    • TFM – Included on-board

    • Supports advanced software Encryption - included

    • Supports in LSA Storage Authority Software WebGUI

    • Secure boot

    • UEFI Configuration utility

    • OS Support: Windows/Linux

    • Dimensions: 2.71" x 6.6" (H x L)

    • Thermal operating range: System dependent (55°C or higher w/ enough airflow)

    Extra Specifications for Supermicro 16-Port SAS3 12Gb/s & SATA3 6Gb/s Gen4 PCIe x8 Hardware RAID 0, 1, 1E, 5, 6, 10, 50 & 60, AOC-S3916L-H16IR-32DD+

    Main Specifications
    Device TypeAdd-On-Card
    Form FactorLow Profile
    Interfacex8 PCIe Gen 4.0
    Dimensions (WxDxH)Height: 2.7 x Length: 6.6 in
    Storage Controller
    RAID LevelSupports RAID 0, 1, 5, 6, 10, 50, 60
    Onboard Memory/Cache8GB DDR4 onboard cache memory – 2666MHz
    Data Transfer RateSupports 3.0, 6.0 and 12.0 Gb/s SAS data transfer rates and 3.0 & 6.0 Gb SATA
    Expansion / Connectivity
    Interface / Ports16 internal SAS3 ports, Supports up to 32 physical devices w/ expander, 2x SlimSAS x8 black (100-Ohm) connectors
    Software / System Requirements
    OS SupportsWindows/Linux
    Miscellaneous
    FeaturesSupport for MCTP over PCIe, Cachevault to protect onboard cache memory, Supercap - BTR-CVPM05 (Optional), TFM – Included on-board, Supports advanced software Encryption - included, Supports in LSA Storage Authority Software WebGUI, Secure boot, UEFI Configuration utility
    Compatible ServersAS -1114S-WN10RT, AS -2024S-TR, AS -2124GQ-NART, SYS-110P-WTR, SYS-120U-TNR, SYS-220BT-DNTR, SYS-220U-MTNR, SYS-220U-TNR, SYS-420GP-TNR, SYS-510P-M, SYS-510P-WTR, SYS-520P-WTR, SSG-6049SP-DE1CR90, SSG-6049SP-E1CR60, SYS-620BT-DNTR, SSG-620P-ACR12H, SYS-620U-TNR, SYS-740GP-TNRT, SYS-F610P2-RTN, SYS-F620P3-RTBN
    Compatible MotherboardsH12DSU-iN, H12DSU-iNR, H12SSFF-AN6, M12SWA-TF, X11SCZ-F, X12DPT-PT6, X12SPL-F, X12SPL-LN4F, X12SPO-F
    Compliant StandardsRoHS Compliant 6/6, Pb Free

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
