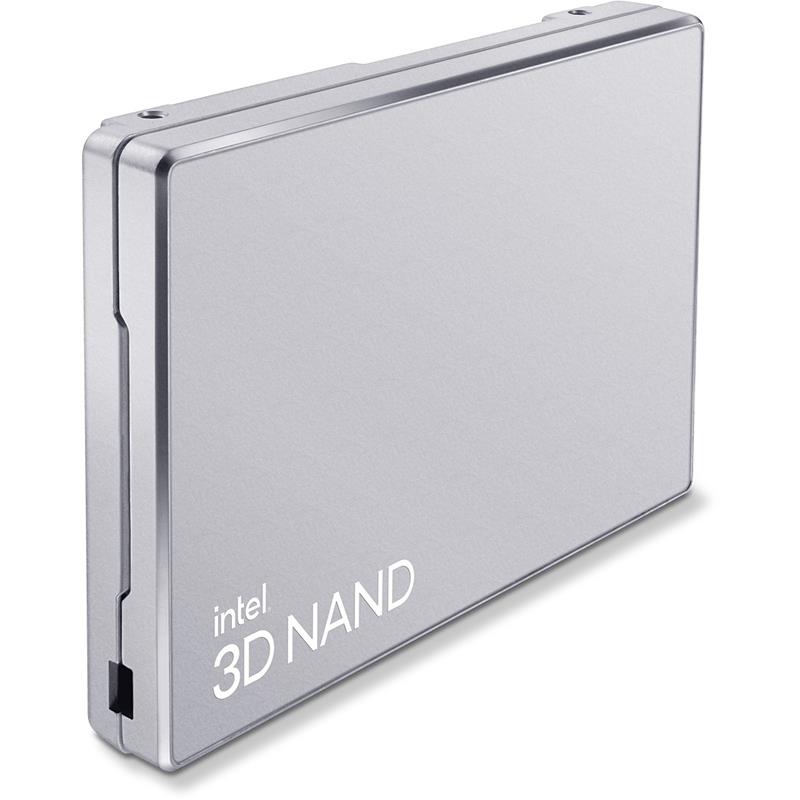

- Intel SSDPF2NV307TZ Hard Drive 30.72TB SSD NVMe PCIe x4 Gen4 U.2 15mm Quad-Level Cell 0.5DWPD - D5-P5316 Series
Intel SSDPF2NV307TZ Hard Drive 30.72TB SSD NVMe PCIe x4 Gen4 U.2 15mm Quad-Level Cell 0.5DWPD - D5-P5316 Series
Built on industry’s first 144-layer QLC
Consolidate and accelerate warm storage
AES-256 Hardware Encryption, NVMe Sanitize
High bandwidth performance of a PCIe 4.0 interface
Hard Drive 30.72TB SSD NVMe PCIe x4 Gen4 U.2 15mm QLC 0.5DWPD Intel SSD D5-P5316 - OEM
As data volume increases, storage becomes a growing challenge in terms of cost-effectiveness, physical footprint, and performance. Built with Intel's most advanced Quad-Level Cell NAND, the Intel SSD D5-P5316 addresses those challenges by delivering industry-leading SSD storage density with the high bandwidth performance of a PCIe 4.0 interface. The Intel SSD D5-P5316 includes up to 30.72TB of capacity, and as an E1.L, provides up to 1 petabyte of storage in just 1U of rack space. The result is massive storage consolidation for lower TCO.
Key selling points
Built on industry's first 144-layer QLC
Consolidate and accelerate warm storage
Enables up to 1PB of storage in just 1U
Same quality and reliability as TLC
Extra Specifications for Intel SSDPF2NV307TZ Hard Drive 30.72TB SSD NVMe PCIe x4 Gen4 U.2 15mm Quad-Level Cell 0.5DWPD - D5-P5316 Series
| Main Specifications | ||
| Device Type | Solid state drive - internal | |
| Capacity | 30.72 TB | |
| Form Factor | U.2 (2.5-inch, 15mm) | |
| Interface | PCI Express 4.0 x4 (NVMe) | |
| NAND Flash Memory Type | 3D quad-level cell (QLC) | |
| SSD Technology | 22.93PBW (64K Random), 104.55PBW (64K Sequential) | |
| Product Collection | Intel SSD D5 Series | |
| Code Name | Products formerly Arbordale Plus Refresh | |
| Performance | ||
| Internal Data Rate | 7000 MBps (read) / 3600 MBps (write) | |
| 4KB Random Read | 800000 IOPS | |
| 4KB Random Write | 7800 IOPS | |
| Average Latency | 160 µs | |
| Expansion / Connectivity | ||
| Expansion / Connectivity | 1 x PCI Express 4.0 x4 (NVMe) | |
| Compatible Bays | 1 x 2.5" | |
| Power | ||
| Power Consumption | 25 Watt (active), 5 Watt (idle) | |
| Reliability | ||
| Non-Recoverable Errors | 1 per 10^17 | |
| Miscellaneous | ||
| MTBF | 2,000,000 hours | |
| Features | Hardware Encryption, Encryption Algorithm: 256-bit AES, Temperature Monitoring and Logging, Enhanced Power Loss Data Protection, End-to-end data protection, 3D NAND Technology | |
| Environmental | ||
| Operating Environment | Min Operating Temperature: 32 °F | |
| Max Operating Temperature: 158 °F | ||
| Shock Tolerance (operating): 1000 g @ 0.5 ms | ||
| Shock Tolerance (non-operating): 1000 g @ 0.5 ms | ||
| Vibration Tolerance (operating): 2.17 g | ||
| Vibration Tolerance (non-operating): 3.13 g | ||
| Warranty: | 5 years |
