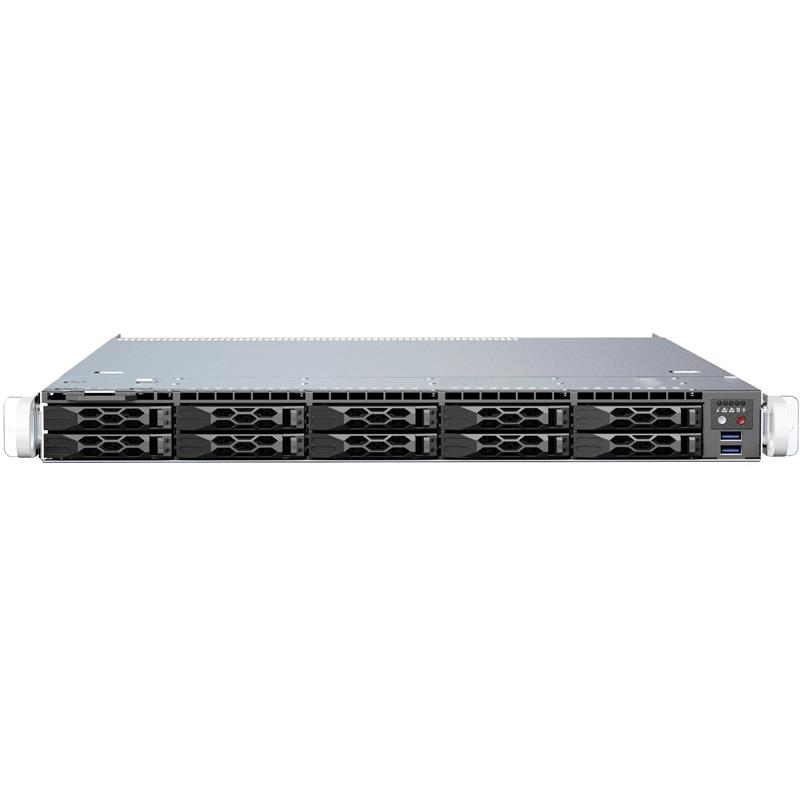

Supermicro CSE-LB16AC2-R504W 1U Rackmount 500W/600W Power Supply

SAS/SATA Backplane with SES2 support
Optimized for WIO (W series) motherboards
500W Redundant power supply Platinum level
Ten 2.5"(tool-less) hot-swap SAS3/SATA drive bay

1U Rackmount 500W/600W Redundant Platinum Power Supply, Optimized for WIO (W series) motherboards, support MB size up to 12.3" x 13.4" support single and dual Intel / AMD processors Includes: 10x 2.5in Hot-swap Drive bay 2x Full-Height Expansion Slot, 3x Low Profile Expansion Slots (CSE-LB16AC2-R504W)

Key Features

SAS3 12Gb/s and NVMe support
Optimized for WIO (W series) motherboards, support MB size up to 12.3" x 13.4"
10 x 2.5"(tool-less) hot-swap SAS3/SATA drive bay
SAS or enterprise SATA HDD only recommended
1U SAS/SATA Backplane with SES2 support
1U 500W Redundant power supply Platinum level, 24Pin output
2x full-height & full-length expansion slot(s) 1x low-profile expansion slot
3 x 40x56mm counter-rotation PWM fan(s)
Support Service Tag for system information
OEM Only, MOQ Applies

Extra Specifications for Supermicro CSE-LB16AC2-R504W 1U Rackmount 500W/600W Power Supply

Main Specifications
Device Type	SuperChassis LB16AC2-R504W
Form Factor	Optimized for WIO (W series) motherboards, support MB size up to 12.3" x 13.4"
Dimensions (WxDxH)	Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 23.5" (597 mm)
Weight	40 lbs (18.14 kg)
Enclosure Color	Black
Processor
Compatible Processors	Dual and Single Intel and AMD processors
Expansion / Connectivity
Expansion Slots Total (Free)	2x full height expansion slot(s), 1x low-profile expansion slot
Expansion Bays Total (Free)	10 x 2.5" hot-swap SAS3/SATA drive bay
Backplane
SAS/SATA HDD Backplane	10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Backplane	1x BPN-SAS3-116A-N2
Front Panel
Buttons	Power On/Off button, Unit Identification (UID) button
LEDs	2 Network Activity LEDs, HDD activity LED, Power Status LED, Unit Identification (UID) LED
Port Panel	2x USB 3.0 Port(s)
Power Supply
Power Supply	1U 500W/600W redundant single output 80PLUS Platinum
Certification	80PLUS Platinum Certified
Regulatory Safety / EMC	CCC, CE/EMC, FCC, TUV/CB, UL/CUL
Parts List - (Items Included)
Cable(s)	1x CBL-0335L
Parts	1x MCP-230-00038-0N, 1x MCP-240-00099-0N, 1x MCP-270-00023-0N, 2x MCP-120-00029-0N, 1x MCP-120-00030-0N
Front Panel	1x FPB-FP116-DU3
Cooling Fan & Accessory	24x MCP-320-00027-0B, 1x MCP-320-00028-0B, 3x MCP-340-00035-0B, 1x MCP-250-00009-0N
Drive Trays	10x MCP-220-00188-0B
Power Distributor(s)	1x PDB-PT116-L8824
Power Supply Number	2x PWS-504P-1R
Mounting Rails	1 set MCP-290-00107-0N
Rear Window	1x MCP-240-00098-0N

Warranty:	3 years
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Supermicro CSE-LB16AC2-R504W 1U Rackmount 500W/600W Power Supply

$ 656.00$ 656.00656.0USD

$ 656.00
