- Supermicro AOC-E810-XXVDA2 Network Adapter PCIe 2-port 25GbE SFP28 Gen4 x8

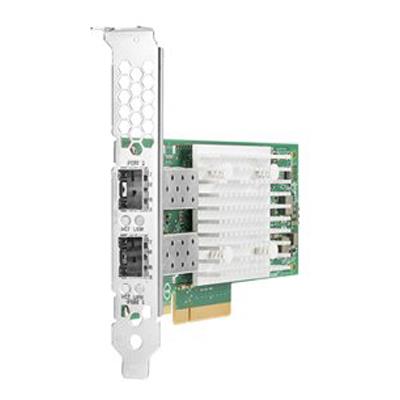

Supermicro AOC-E810-XXVDA2 Network Adapter PCIe 2-port 25GbE SFP28 Gen4 x8
Dual Port SFP28 - PCIe 4.0 x8
Dynamic Device Personalization
IEEE 1588 Precision Time Protocol
Supports both RDMA iWARP and RoCEv2
Network Adapter PCIe 2-port 25GbE SFP28 Gen4 x8, RoHS - Intel P/N E810XXVDA2
Is your data center constantly challenged to deliver increased security and reliability in a cost-effective and scalable solution for your network bandwidth? The HPE Gen10 Plus Ethernet Adapters are 1Gb, 10Gb, 10/25Gb and 100Gb and 200 Gb Ethernet solutions that are scalable and compatible with HPE Gen10 Plus servers for hybrid cloud services, mobile data and streaming video applications. Your server is the foundation of your data center, but it doesn't work alone. When one link in your component chain slows down, so does the rest of your operation. Keep your network and data flowing with a seamless ecosystem of HPE servers, networking adapters, transceivers, cables, and switches.
Key Selling Points
HPE Gen10 Plus Ethernet Adapters are engineered for an assortment of bandwidths and latency-sensitive applications
Reduces CPU utilization with support for a variety of I/O offloads including RDMA and Tunneling
HPE Gen10 Plus Ethernet Adapters authenticate updates for NICs that signed firmware is correct and trusted to reduce rogue firmware installation
Protect applications, data, and server infrastructure by authenticating digitally-signed firmware via a root of trust architecture
Extra Specifications for Supermicro AOC-E810-XXVDA2 Network Adapter PCIe 2-port 25GbE SFP28 Gen4 x8
| Main Specifications | ||
| Device Type | Network adapter - 2 ports | |
| Form Factor | Plug-in Card | |
| Interface Bus Type | PCI Express 4.0 x8 | |
| PCI Specification Revision | PCIe 4.0 | |
| Storage Controller | ||
| Channel Quantity | 25 Gigabit SFP28 x 2 | |
| Connectivity Technology | Wired | |
| Data Transfer Rate | 25 Gbps | |
| Networking | ||
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet | |
| Network / Transport Protocol | TCP/IP, iSCSI, iWARP | |
| Expansion / Connectivity | ||
| Expansion / Connectivity | 2 x 10Gb Ethernet/25Gb Ethernet - SFP28 | |
| Power | ||
| Power Consumption | 8.9 Watt | |
| Miscellaneous | ||
| Features | Wake on LAN (WOL), IPv6 support, IPv4 support, PXE support, Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), Data Direct I/O Technology (DDIO), iSCSI boot, Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), RDMA over Converged Ethernet (RoCE) v2, iWARP support, secure boot, Network Partitioning (NPAR), Data Plane Development Kit (DPDK), audit logs, tunnel offload, GENEVE support, VMQueue, hardware root of trust, sanitization | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Intel |
| Type of Support: | FULL |
| Phone No.: | 916-377-7000 |
| URL: | Click here for Manufacturer Website |
