| Main Specifications |

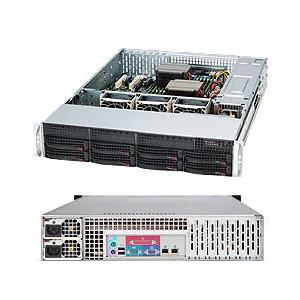

| Device Type | SuperChassis 825TQC-R802LPB |
| Form Factor | 2U chassis |
| Supported Motherboards | Supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 25.5" (647 mm) |
| Weight | 52 lbs (23.59 kg) |
| Enclosure Color | Black |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 7 low-profile expansion slot(s) |
| Expansion Bays Total (Free) | 8 x 3.5" hot-swap SAS3/SATA drive bay, 2 x 3.5" fixed drive bay |
| Peripheral Bay (Free) | Optional 1 x slim DVD-ROM drive bay, Optional 2 x USB 2.0 ports, Optional 1 x COM port tray, Optional 2 x USB 3.0 ports |
| SAS/SATA Backplane |
| SAS/SATA Backplane | 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | 2 Network Activity LEDs, HDD activity LED, Power Status LED, Power Fail LED, System Information LED |
| System Cooling |
| Fans/Air Shroud | 3 x 80mm Hot-swap PWM Fans |
| System Monitoring |
| System Monitoring | Chassis intrusion switch |
| Power Supply |
| Power Supply | 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium |
| Certification | 80PLUS Titanium Certified |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, TUV/CB, UL/CUL |
| Environmental |
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Parts List - (Items Included) |
| Backplane | 1x BPN-SAS3-825TQ |
| Cable(s) | 1x CBL-0071L, 2x CBL-0160L |
| Parts | 1x MCP-290-00088-0N, 1x MCP-230-82501-0N |
| Fan(s) | 3x FAN-0181L4 |
| Front Panel | 1x FPB-FP836-D |
| Drive Tray(s) | 1x MCP-220-00023-01, 8x MCP-220-00075-0B, 2x MCP-220-82502-0B |
| Mounting Rails | 1x MCP-290-00053-0N |
| Rear Window | 1x MCP-240-82506-0N |
| Power Supply Number | 2x PWS-802A-1R |
| Power Distributor(s) | 1x PDB-PT825-8824 |
