Supermicro SYS-510T-ML UP Mini-1U Barebone Single Intel Xeon E-2300 Series and Intel Pentium 10th Generation Processor
• General Purpose
• Entry Appliance
• Front-end, Web Hosting
Mini-1U Rackmount SuperServer, Support Single Socket H5 (LGA-1200), Supporting Intel Xeon E-2300 Series and Intel Pentium 10th Generation Processor (Up to 8C/16T, Up to 16MB Cache). Up to 128GB in 4 DIMM slots, UDIMM, SATA3 RAID, 2 Super DOM (Disk on Module) port with built-in power, 2x 3.5in SATA drive bays, Onboard 1x NVMe M.2, 2x 1GbE LAN ports, Dedicated IPMI LAN port, 1 VGA, 2 COM Port, 2 Super DOM port with built-in power, 350W Power Supply - (CSE-512F-350B1 + X12STL-F) - SYS-510T-ML
1. Single Socket H5 (LGA-1200) supports Intel® Xeon® E-2300 series, Intel® Pentium® processors
2. 4 DIMMs; Up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz
3. 1 PCIe 4.0 x8 (in x16 FHHL)
4. Intel® Ethernet Controller i210 2x 1GbE RJ45
5. Single Platinum 350W Power Supply
Extra Specifications for Supermicro SYS-510T-ML UP Mini-1U Barebone Single Intel Xeon E-2300 Series and Intel Pentium 10th Generation Processor
| Motherboard | ||
| Motherboard | Super X12STL-F | |
| Processor | ||
| CPU | Support CPU TDP 95W | |
| Single Socket H5 (LGA 1200) | ||
| Support Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors | ||
| Cores | Up to 8C/16T; Up to 16MB Cache | |
| System Memory | ||
| Memory | Memory Capacity: 4 DIMM slots | |
| Memory Type: 3200/2933/2666MHz ECC DDR4 UDIMM | ||
| Up to 128GB: 4x 32 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Yes | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
| Chipset | Intel® C252 | |
| Network Connectivity | 2x 1GbE BaseT with Intel® i210 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| SATA | 6 SATA (6Gbps) port(s) | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 1GbE LAN ports | ||
| USB | 4 USB 2.0 port(s) (2 headers; 2 rear) | |
| 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A) | ||
| Video | 1 VGA port(s) | |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) | |
| DOM | 2 Super DOM (Disk on Module) port with built-in power | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | NMI | |
| KVM with dedicated LAN | ||
| Redfish API | ||
| SUM | ||
| SSM | ||
| SPM | ||
| IPMI2.0 | ||
| Power Configurations | ACPI/APM Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 6 + 1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | Mini-1U | |
| Model | CSE-512F-350B1 | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 14.5" (368mm) | |
| Package | 6.3" (H) x 22" (W) x 20" (D) | |
| Weight | Net Weight: 11 lbs (4.99 kg) | |
| Gross Weight: 14 lbs (6.35 kg) | ||
| Available Color | Black | |

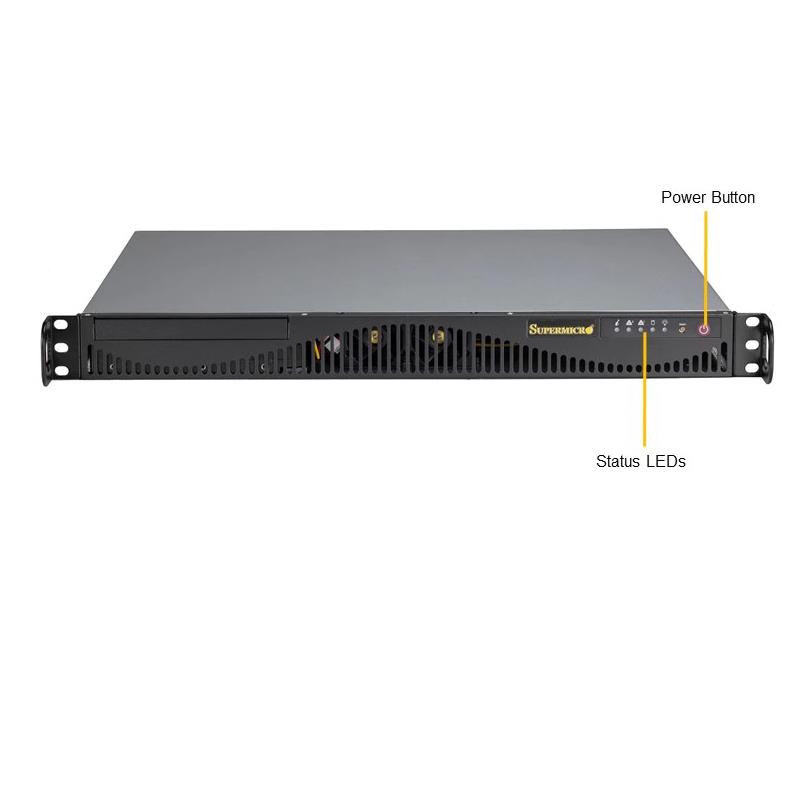

| Front Panel | ||
| Buttons | System Reset | |
| Power On/Off | ||
| LEDs | Power status | |
| System information | ||
| Device Activity | ||
| LAN 1 Activity | ||
| LAN 2 Activity | ||
| Drive Bays / Storage | ||
| Drive Bays | 2x 3.5" SATA drive bays | |
| M.2 | M-key, 2280, 22110 | |
| 1x PCIe 3.0 x 4 | ||
| System Cooling | ||
| Fans | 2 counter-rotation PWM 40x40x56mm Fan(s) | |
| Power Supply | ||
| Total Output Power | 350W | |
| Dimension (W x H x L) | 100 x 40 x 180 mm | |
| AC Input | 350W: 100-240Vac / 2.5A-5A / 50-60Hz | |
| +12V | Max: 29A / Min: 0.5A | |
| 5V SB | Max: 3A / Min: 0A | |
| Certification | Platinum Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-510T-ML | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe 4.0 x8 slot(s) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12STL-F | 1 | Super X12STL-F Motherboard | |
| Motherboard / Chassis | CSE-512F-350B1 | 1 | Mini-1U Chassis | |
| Rear Window | MCP-240-00091-0N | 2 | 1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF | |
| Manual | MNL-2420-QRG | 1 | 510T-ML Quick Reference Guide | |
| Riser Card | RSC-S-6G4 | 1 | 1U LHS Standard riser card with one PCIe 4.0 x16 slot,HF,Ro | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0049P | 1 | 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors | |
| *Power Supply | PWS-350-1H | 1 | 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm) | |
| *Cable | CBL-0156L | 1 | ROUND 16PIN TO 16PIN FP CABLE,40CM, PB FREE | |
| *Cable | CBL-0260L | 1 | US POWER CORD 18 AWG, PBF | |
| *Cable | CBL-0261L | 1 | 7pin SATA (STR to RA), 40cm, PBF | |
| *Cable | CBL-0262L | 1 | 4PIN TO 1xSATA(RA)+1x4PIN(RA)+1xFPD PWS EXT. CBL | |
| *Fan | FAN-0087L4 | 2 | 40x56,4 Pin PWM Fan | |
| *Parts | MCP-260-00024-0N | 1 | 1U I/O shield for X8 server MB (3rd LAN + 4xLAN) | |
| *Parts | MCP-260-00078-0N | 1 | 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF | |
| *Parts | MCP-290-00005-01 | 2 | Black chassis handle for SC512F-520 | |
| *Front Panel | MCP-280-51201-0N | 1 | Front control board (FP512) for SC512 (surface-mounted LED) | |
| *Peripheral Drive | MCP-290-00006-01 | 1 | Black DVD dummy cover for SC512, RoHS | |
| *Fan Holder | MCP-320-00003-01 | 1 | Fan holder of two 40x40x56mm fans for SC512F-280 |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Add-on Card for additional M.2 | AOC-SLG3-2H8M2 | $ 188.00 | 0 | Standard LP, PCIe 3.0 x8, supports 2x NVMe/SATA M-Key M.2 Modules; RAID 0,1 | ||
| Cable for internal HDD | CBL-0483L | $ 17.00 | 0 | 29cm 30AWG SATA straight to straigh cable | ||
| Cable for internal HDD | CBL-0211L | $ 20.00 | 1 | 4PIN-TO-3X SATA POWER CABLE | ||
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT5 | $ 84.50 | 1 | TEAC slim DVD-ROM SATA drive | ||
| DVD-ROM / DVD-RW | DVM-TEAC-DVDRW-SBT5 | $ 101.00 | 1 | PHILPS slim DVD-RW SATA drive | ||
| DVD-ROM Accessory | MCP-220-51202-0N | $ 26.50 | 1 | Slim SATA DVD mounting kit | ||
| Internal 2.5" HDD Tray | MCP-220-00044-0N | $ 18.00 | 0 | Dual 2.5" fixed HDD bracket | ||
| Internal 2.5" HDD Tray | MCP-220-00051-0N | $ 19.50 | 0 | Single 2.5" fixed HDD bracket | ||
| Rail Kit | MCP-290-00055-0N | $ 67.50 | 1 | Quick-release rail set (25.6" ~ 33.05") | ||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| TPM | AOM-TPM-9670V-O | 1 | TPM 2.0, vertical form factor | |||
| TPM | AOM-TPM-9671V-O | 1 | TPM 1.2, vertical form factor |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
