- Solidigm SSDSC2KB240GZ Hard Drive 240GB SSD SATA 6Gb/s 3D TLC 2.5in D3-S4520 Series

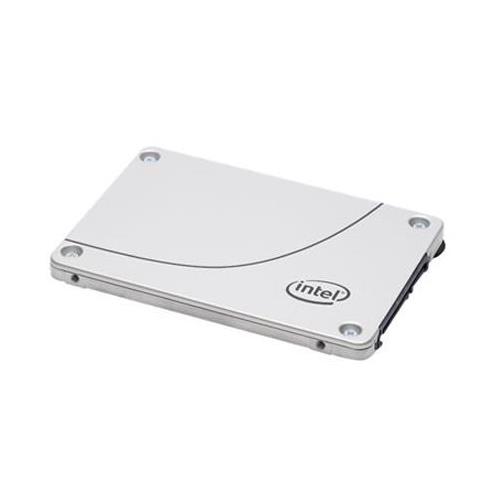

Solidigm SSDSC2KB240GZ Hard Drive 240GB SSD SATA 6Gb/s 3D TLC 2.5in D3-S4520 Series
Standard/Mid Endurance Technology
High I/O and throughput performance
Native Command Queuing command set
Hard Drive 240GB SATA 6Gb/s 3D TLC 2.5in 7.0mm <2DWPD - D3 S4520 - OEM
The Intel D3-S4520 SSD delivers great performance and Quality of Service combined with high reliability for Serial Advanced Technology Attachment (SATA)-based computers in a 2.5-inch form factor.
key Features
Standard/Mid Endurance Technology
High I/O and throughput performance
Consistent I/O latency
Tested and Proven power-loss data protection with self-test
Proven End-to-End data protection, Demonstrated 10-17 UBER
Thermal throttling
Temperature Sensor
Inrush current management
Low power
High reliability
Temperature monitor and logging
<5% Performance Degradation over product life
Extra Specifications for Solidigm SSDSC2KB240GZ Hard Drive 240GB SSD SATA 6Gb/s 3D TLC 2.5in D3-S4520 Series
| Main Specifications | ||
| Device Type | Solid state drive - internal | |
| Capacity | 240GB | |
| Form Factor | 2.5-inch | |
| Interface | SATA Revision 3.2, compatible with SATA 6Gb/s, 3Gb/s and 1.5Gb/s | |
| NAND Flash Memory Type | 3D triple-level cell (TLC) | |
| Weight | 70g | |
| Performance | ||
| Internal Data Rate | 550 MBps (read) / 510 MBps (write) | |
| 4KB Random Read | 44,000 | |
| 4KB Random Write | 85,000 | |
| Environmental Parameters | ||
| Operating Temperature | Operating: 0° C to 70° C | |
| Non-Operating12: -55° C to 95° C | ||
| Vibration Operating: 2.17 GRMS (5-700 Hz) | ||
| Software / System Requirements | ||
| OS Supported | WinPE, Windows Server 2012 R2, 2016, 2019, VMWare ESXi 6.5, 6.7, Red Hat Enterprise Linux 6.10, 7.6, 8.1, SUSE Linux Enterprise Server 11 SP4, 12 SP3, 15 SP1, CentOS 64bit 6.3, 7.7, 8.0 | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | SOLIDIGM |
| Type of Support: | FULL |
| Phone No.: | 833-313-7337 |
| URL: | Click here for Manufacturer Website |
