• Low Power Consumption (4W Typical)
• Micro-LP; Compatible w/ 1U/2U bracket
• Intel I/O Acceleration Technology supported
• Designed for Twin and MicroCloud Systems

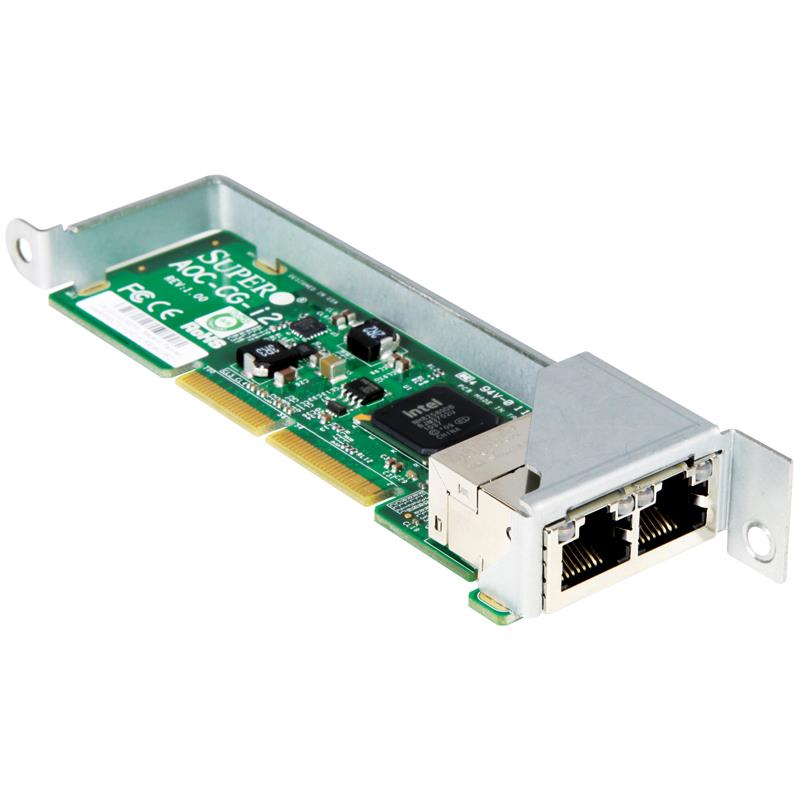

2-Port Gigabit Micro-LP Ethernet Adapter - for Twin Family and MicroCloud Systems - MicroLP, Based on Intel i350 - RJ45 ports - (Can be ordered with Supermicro System ONLY - OEM)
• PXE Boot Support
• iSCSI Remote Boot Support
• Jumbo Frame Support up to 9.5KB
• PCI Express 2.1 (2.5GT/s or 5GT/s)
• Low Power Consumption (4W Typical)
• Intel® I/O Acceleration Technology (I/O AT)
• IEEE 802.3az – Energy Efficient Ethernet (EEE)
• Flexible I/O Virtualization and Quality of Service (QoS)
• MicroLP form factor for Twin Family and MicroCloud Systems
• VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments
| Main Specifications | ||
| Device Type | FatTwin MicroLP Network Card | |
| Dimensions (WxDxH) | Card PCB dimensions: 11.3cm (4.45in) x 3.9cm (1.54in) | |
| Form Factor | Compact size microLP form factor | |
| Interface (Bus) Type | PCI-E 2.1 x4 (2.5GT/s or 5GT/s) interface | |
| Miscellaneous | ||
| Features | 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant | |
| IEEE 1588 protocol and 802.1AS implementation | ||
| IEEE 802.3 auto-negotiation for speed, duplex, & flow control | ||
| IEEE 802.3x and 802.3z compliant flow control support | ||
| Automatic cross-over detection function (MDI/MDI-X) | ||
| Cables Type | Support RJ-45 Category-5/5e up to 100m | |
| Compatible Servers | Twin Family and MicroCloud Systems | |
| RoHS | RoHS Compliant 6/6, Pb Free | |
| Included Accessories | BKT-0051L / BKT-0054L / BKT-0055L / CDR-NIC | |
| Vendor Compatible Products | F617R2-R72+(FatTwin 8 Nodes) | |
| F627R3-R72B+(FatTwin 4 Nodes) | ||
| F627R3-RTB+(FatTwin 4 Nodes) | ||
| F627R2-RTB+(FatTwin 4 Nodes) | ||
| F617R2-RT+(FatTwin 8 Nodes) | ||
| F627R2-RT+(FatTwin 4 Nodes) | ||
| Networking | ||
| Port Quantity | Dual RJ-45 connectors | |
| Environmental Parameters | ||
| Operating Temperature | Operating temperature: 0C to 55C (32F to 131F) | |
| Storage: -40C to 70C (-40F to 158F) | ||
| Software / System Requirements | ||
| OS Supports | Windows XP SP3, Vista SP2, 7 SP1 2003 SP2, 2008 SP2, 2008 R2S, RedHat EL 5.5, 6.0, SuSe SLES 10 SP3, 11 SP1 - FreeBSD 8.0, VMware ESX 4.0, 4.1, 5.0, Xen | |
| Compatible Motherboards: X9DRT-HF+, X9SRD-F, X9DRFR | ||
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
