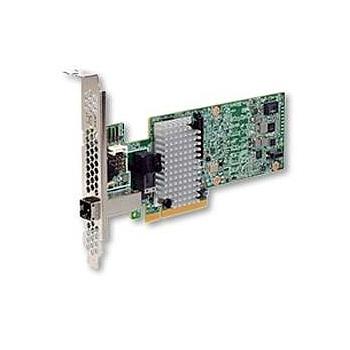

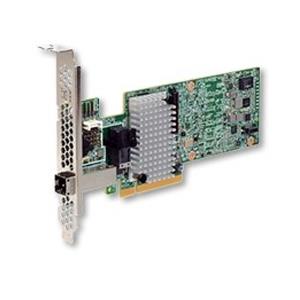

Supermicro AOC-SAS3-9380-4I4E Storage Controller Broadcom LSI00439 4 Internal & 4 External Port

  • Ideal for traditional IT enterprise applications

  • Includes four internal and four external 12Gb/s SAS ports

  • Support critical, high-bandwidth applications via PCIe connectivity

  • Datacenter, cloud, and high-performance computing environments

Storage Controller Broadcom LSI00439 4 Internal & 4 External Port,12Gb/s, SAS3, No Cable


    954.00954.00954.0USD

    954.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    Datacenter, cloud, and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today’s applications and end-users demand. The MegaRAID SAS 9380-4i4e 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.



    • Connect up to 240 SATA or SAS drives with four internal and four external 12Gb/s SAS ports

    • Provides internal storage, external JBOD expansion, and RAID data protection to address a wide range of storage performance and capacity requirements.

    • Support critical, high-bandwidth applications with PCIe® 3.0 connectivity

    • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60

    • Add more protection and peace of mind with optional CacheVault® flash cache protection.

    Extra Specifications for Supermicro AOC-SAS3-9380-4I4E Storage Controller Broadcom LSI00439 4 Internal & 4 External Port

    Main Specifications
    Device TypeStorage RAID Controller
    Form FactorMD2 Low profile
    Host Connectivityx8 lane PCI Express 3.0 compliant
    Dimensions (WxDxH)6.6 x 2.536 in
    Storage Controller
    Onboard Memory/Cache1GB 1866MHz DDRIII SDRAM
    Data Transfer RateUp to 12Gb/s per port
    RAID ManagementLSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure)
    Expansion / Connectivity
    Expansion / Connectivity1 Mini-SAS HD SFF8644 (4x External Connectors)
    1 HD Mini-SAS SFF8643 (Horizontal mount) (4x Internal Connectors)
    Software / System Requirements
    OS RequiredExtensive support includes Microsoft Windows Server 2012/8 & 7/2008/Vista/2003/XP, Linux, Solaris (x86), FreeBSD, VMware and more
    Miscellaneous
    Bracket IncludedLow profile
    NamePart NumberQuantityDescription

    Warranty:3 years, 120 days advanced replacement (doa)
    Provider:BROADCOM
    Phone No.:305-640-0300
    E-mail:returnservices@wiredzone.com
    URL:Click here for Manufacturer Website
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward

    If you need Technical Support for this item please contact:

    Provider:BROADCOM
    Type of Support:FULL
    Phone No.:800-225-5224
    URL:Click here for Manufacturer Website
