| Motherboard |
| Motherboard | Super X12STL-F |
| Processor |
| CPU | Support CPU TDP 95W |
| Single Socket H5 (LGA 1200,Socket H5 LGA 1200) |
| Intel® Xeon® E-2300 series and Pentium processor,Support Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors |
| Cores | Up to 6C/12T,8C/16T; Up to 12,16MB Cache |
| System Memory |
| Memory | Memory Capacity: 4 DIMM slots |
| Up to 128GB: 4x 32 GB DRAM |
| Memory Type: 3200MHz ECC DDR4 UDIMM |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices |
| Chipset | Intel® C252 |
| Network Connectivity | 2x 1GbE BaseT with Intel® I210-AT |
| Input / Output |
| SATA | 6 SATA (6Gbps) port(s) |
| USB | 4 USB 3.2 Gen 1 port(s) (2 front Type A; 2 rear Type A) |
| 2 USB 2.0 port(s) (2 rear Type A) |
| Video | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 header) |
| System BIOS |
| BIOS Type | AMI 256MB SPI Flash |
| Management |
| Software | SuperDoctor 5 |
| Power Configurations | ACPI 6.0 |
| PC Health Monitoring |
| Voltage | +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature |
| Other Features | 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL |
| Chassis |
| Form Factor | mini-tower |
| Model | CSE-731I-404B |
| Dimensions and Weight |
| Height | 14.25" (362mm) |
| Width | 7.25" (184mm) |
| Depth | 16.75" (425mm) |
| Package | 20" (H) x 11" (W) x 21" (D) |
| Weight | Net Weight: 16 lbs (7.26 kg) |
| Gross Weight: 20 lbs (9.07 kg) |
| Available Color | Black |

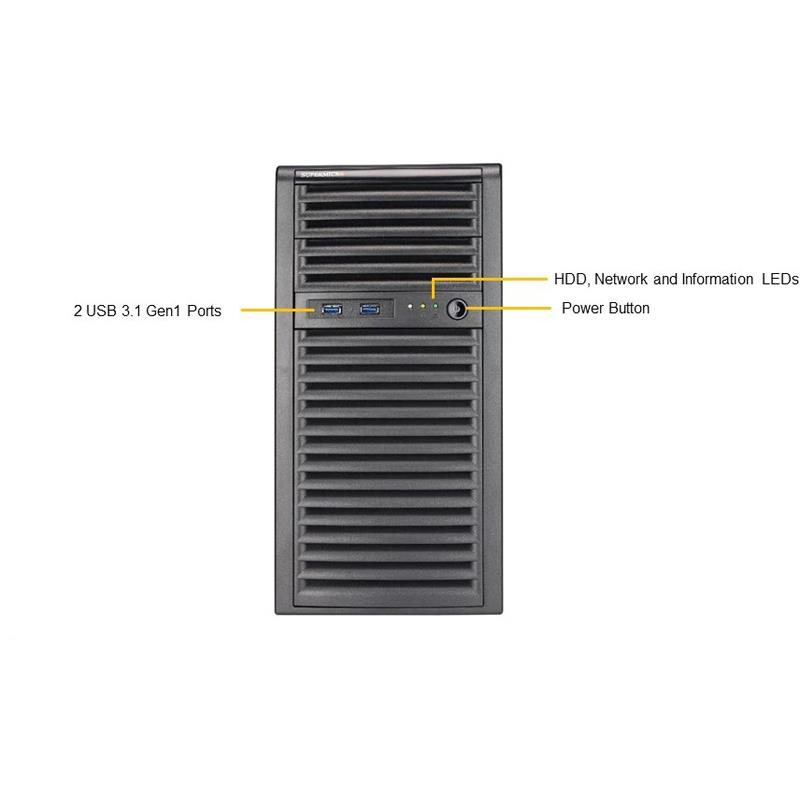

| Front Panel |
| Buttons | System Reset |
| Power On/Off |
| LEDs | System Information LED |
| HDD activity |
| Power On |
| Network activity |
| Drive Bays / Storage |
| Drive Bays | 4x 3.5" SATA drive bays |
| M.2 | 1x PCIe 3.0 x4 |
| Peripheral Bays | 2x 5.25" drive bays |
| System Cooling |
| Fans | 1x 90mm Fan(s) |
| Power Supply |
| Dimension (W x H x L) | 140 x 86 x 190 mm |
| AC Input | 100-240Vac / 50-60Hz |
| Output Type | PS/2 |
| Certification | Gold Level |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Product SKUs |
| Product SKUs | SYS-530T-I |
| Expansion Slots |
| PCI-Express (PCIe) | 1 PCIe 4.0 x4 slot(s) |
| 1 PCIe 3.0 x2 slot(s) |
| 2 PCIe 4.0 x8 slot(s) |
