Motherboard |
Motherboard | Super H12SSFR-AN6 |
Processor/Chipset (per Node) |
CPU | Socket SP3 |
| Supports CPU TDP / cTDP up to 280W * |
| Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) |
Cores | Up to 64 Cores |
Note | * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization |
System Memory (per Node) |
Memory Capacity | 8 DIMM slots |
| 8-channel memory bus |
| Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs |
Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs |
Memory Sizes | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB |
Memory Voltage | 1.2V |
Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
On-Board Devices |
Chipset | System on Chip |
SATA | SATA3 (6Gbps) |
Network Controllers | Flexible networking via AIOM (not included, must add 1 per node) |
IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
Graphics | ASPEED AST2600 BMC |
Input / Output (per node) |
LAN | 1 RJ45 Dedicated IPMI LAN port |
| Flexible networking via AIOM |
USB | 2 USB 3.0 ports (rear) |
VGA | 1 VGA port |
Others | 1 COM port |
| 1 TPM 2.0 header |
System BIOS |
BIOS Type | 256Mb SPI Flash EEPROM with AMI BIOS |
Management |
Software | Watch Dog |
| KVM with dedicated LAN |
| SuperDoctor® 5 |
| IPMI 2.0 |
| SSM , SUM |
Power Configurations | ACPI Power Management |
PC Health Monitoring |
CPU | Monitors for CPU Cores |
FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
Chassis |
Form Factor | 4U Rackmount |
Model | CSE-F424AS3-R2K20BP |
Dimensions and Weight |
Width | 17.63" (448mm) |
Height | 6.96" (177mm) |
Depth | 29" (737mm) |
Package | 28.3" (W) x 15.0" (H) x 42.4" (D) |
Weight | Net Weight: 150 lbs (68.04 kg) |
| Gross Weight: 200 lbs (90.71 kg) |
Available Colors | Black |
Front Panel (per node) |
Buttons | Power On/Off button |
| UID button |
LEDs | Power status LED |
| Hard drive activity LED |
| Network activity LEDs |
| Information LED (UID, Fan failure, Overheat) |
Expansion Slots (per node) |
PCI-Express | 1 PCI-E 4.0 x16 (Low-profile riser) |
| 1 PCI-E 4.0 x8 (Internal RAID AOC) |
Drive Bays (per node) |
Hot-swap | 8 Hot-swap 3.5" drive bays: Front 6 SATA (optional NVMe support), Rear 2 SATA/NVMe |
M.2 | M.2 Key: M-Key |
| M.2 Interface: 4 SATA/PCI-E 4.0 x4 |
| M.2 Form Factor: 2242, 2260, 2280, 22110 |
Backplane |
Backplane | 1 SATA/NVMe backplane |
System Cooling (per node) |
Fans | 2x 8cm 13.5K RPM middle fans |
Power Supply |
Power Supply | 2200W Redundant Power Supplies with PMBus |
Total Output Power and Input | 1200W with Input 100-127Vac |
| 1800W with Input 200-220Vac |
| 1980W with Input 220-230Vac |
| 2090W with Input 230-240Vac |
| 2200W with Input 220-240Vac (for UL/cUL use only) |
| 2090W with Input 230-240Vdc (for CCC only) |
AC Input Frequency | 50-60Hz |
Dimension (W x H x L) | 76 x 40 x 336 mm |
+12V | Max: 150A / Min: 0A (200-220Vac) |
| Max: 165A / Min: 0A (220-230Vac) |
| Max: 100A / Min: 0A (100-127Vac) |
| Max: 174.17A / Min: 0A (230-240Vac) |
| Max: 183.3A / Min: 0A (220-240Vac) |
5VSB | Max: 1A / Min: 0A |
Output Type | Backplanes (gold finger) |
Certification | Titanium Level |
Operating Environment |
RoHS | RoHS Compliant |
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
Product SKUs |

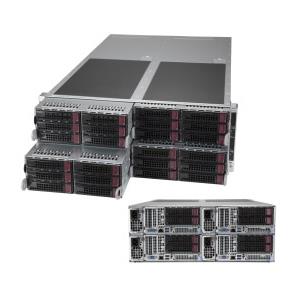

Product SKUs | A+ Server F2014S-RNTR (Black) |
