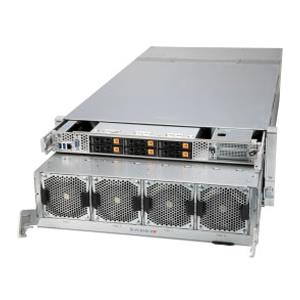

Supermicro AS-4124GO-NART+ GPU 4U Barebone Dual AMD EPYC 7003/7002 Series Processors
• High Performance Computing
• AI / Deep Learning
Barebone 4U Rackmount SuperServer, Support Dual Socket SP3, Supporting AMD EPYC 7003/7002 Series Processors, Up to 128 Cores (64 per CPU). System on Chip (SoC), Up to 8TB in 32 DIMM slots, R/LRDIMM, SATA3, 6x U.2 NVMe 2.5in drive bays, 2x M.2 NVMe OR 2x M.2 SATA3, Networking Provided via AIOM, 1x Dedicated IPMI LAN port, Supports NVIDIA HGX A100 8-GPU, Highest GPU communication using NVIDIA NVLINK v3.0 + NVIDIA NVSwitch, NICs for GPUDirect RDMA (1:1 GPU Ratio), 3000W Redundant Power Supplies (CSE-438G + Super H12DGO-6) - AS -4124GO-NART+
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, minimum of 1.0TB Memory (2TB highly recommended) for 80G HGX-8 A100 OR minimum of 512GB Memory for 40G HGX-8 A100, 1 Storage device, and 1 NIC). OSNBD3 is highly recommended.
1. Supports NVIDIA® HGX™ A100 8-GPU; Highest GPU communication using NVIDIA® NVLINK™ v3.0 + NVIDIA® NVSwitch™; NICs for GPUDirect RDMA (1:1 GPU Ratio)
2. Supports HGX A100 8-GPU 40GB (HBM2) or 80GB (HBM2e)
3. Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
4. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
5. 8 PCI-E 4.0 x16 via PCI-E switch; 1 PCI-E 4.0 x 16 LP and 1 PCI-E 4.0 x8 LP via CPUs; AIOM Support
6. 6 Hot-swap U.2 NVMe 2.5" drive bays (4 via PCI-E switch, 2 via CPU) Up to 10 U.2 NVMe 2.5" drives available with an optional 4 drive bays at rear of system
7. Flexible Networking via AIOM, 1 dedicated IPMI LAN Port
8. 4 Hot-swap heavy-duty cooling fans
9. 3000W (2+2) Redundant Titanium Level (96%+) Power Supplies (full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-4124GO-NART+ GPU 4U Barebone Dual AMD EPYC 7003/7002 Series Processors
| Motherboard | ||
| Motherboard | Super H12DGO-6 | |
| Processor/Cache | ||
| CPU | Socket SP3 | |
| Supports CPU TDP up to 280W * | ||
| Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) | ||
| Cores | Up to 128 Cores (64 per CPU) | |
| Note | * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| GPU | ||
| Supported GPUs | HGX A100 8-GPU 40GB/80GB SXM4 Multi-GPU Board | |
| CPU-GPU Interconnect | PCI-E Gen 4 x16 Switch CPU-to-GPU Interconnect | |
| GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ GPU-GPU Interconnect | |
| System Memory | ||
| Memory Capacity | 32 DIMM slots | |
| Up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM | ||
| Memory Type | 3200MHz ECC DDR4 RDIMM/LRDIMM | |
| On-Board Devices | ||
| Chipset | System on Chip (SoC) | |
| SATA | SATA3 (6Gbps) | |
| Network Controllers | Provided via AIOM | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2600 BMC | |
| Input / Output | ||
| SATA | 4 SATA3 (6Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| Provided by AIOM | ||
| USB | 2 USB 3.0 ports (front) | |
| Video | 1 VGA Connector (front) | |
| COM Port | 1 COM port (header) | |
| System BIOS | ||
| BIOS Type | AMI 256Mb SPI Flash ROM | |
| Management | ||
| Software | Watchdog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmountable | |
| Rackmount Kit (MCP-290-00180-0N) | ||
| Model | CSE-438G | |
| Dimensions | ||
| Height | 6.9" (174mm) | |
| Width | 17.6" (446mm) | |
| Depth | 35.4" (900mm) | |
| Package | 29.5" (750mm) H x 27.4" (695mm) W x 44.9" (1140mm) D | |
| Weight | Net Weight: 166.0 lbs (75.3 kg) | |
| Gross Weight: 225.0 lbs (102.1 kg) | ||
| Drive Bays / Storage | ||
| Hot-swap | 6 hot-swap U.2 NVMe 2.5" drive bays (4 via PCI-E switch, 2 via CPU, SATA/NVMe Hybrid or SAS with optional HBA) (up to 10 hot-swap U.2 NVMe 2.5" available) | |
| M.2 | 2 M.2 NVMe | |
| Expansion Slots | ||
| PCI-Express | 8 PCI-E 4.0 x16 via PCI-E switch - supporting HGX A100 8-GPU's 1:1 connection to 8 NICs | |
| 1 PCI-E 4.0 x16 LP and 1 PCI-E 4.0 x8 LP via CPUs | ||
| System Cooling | ||
| Fans | 4 x Hot-swap 11.5K RPM heavy duty fans | |
| Power Supply | ||
| Power Supply | 3000W Redundant Titanium Level Power Supplies | |
| Dimension (W x H x L) | 106.5 x 82.4 x 203.5 mm | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | A+ Server 4124GO-NART+ | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| GPU Baseboard(s) * | GPU-NVTHGX-A100-SXM4-88D | 0 | NVIDIA Air Cool DELTA HGX GPU Baseboard, 8 A100 80GB | |||
| Backplane | BPN-NVME4-HS119N-S4R | $ 102.00 | 0 | 1U 4-Slot SFF Backplane Supports 4 x SAS3/SATA3/NVMe4 Storage Devices,HF,RoHS | ||
| Cable(s) | CBL-PWEX-1133-35 | $ 9.00 | 0 | (MicroHi to MicroFit) 2x2,PH3.0, 35cm,10A/pin,16AWG,RoHS | ||
| Cable(s) | CBL-SAST-0532 | $ 37.00 | 0 | Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s (for AOC-S3008L-L8I and AOC-S3108L-H8IR-16DD) | ||
| Cable(s) | CBL-SAST-1224LP-85 | $ 37.00 | 0 | SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM | ||
| Cable(s) | CBL-SAST-1262-100 | $ 37.00 | 0 | Slimline x8 (STR) to 2x MiniSAS HD x4 (STR),62/62CM,100 (for AOC-S3908L-H8IR-16DD-O) | ||
| Network Card(s) | AOC-613106A-VDAT | 0 | Mellanox MCX613106A-VDAT PCIe 2-port 200GbE QSFP56 Gen4x16 CX-6. HF, RoHS. | |||
| Network Card(s) | AOC-623105AN-VDAT | $ 1,444.00 | 0 | ConnectX-6 Dx 200GbE Ethernet Adapter Card, single port QSFP56 PCIe 4.0 x16, RoHS | ||
| Network Card(s) | AOC-623106AN-CDAT | $ 1,363.00 | 0 | ConnectX-6 Dx 100GbE Ethernet Adapter Card, dual port QSFP56 PCIe 4.0 x16, RoHS | ||
| Network Card(s) | AOC-653105A-ECAT | $ 918.00 | 0 | Mellanox MCX653105A-ECAT PCIe 1-port IB-HDR100 & 100GbE QSFP56 Gen3.0/4.0 x16 CX-6 VPI. HF, RoHS. | ||
| Network Card(s) | AOC-653105A-HDAT | $ 1,174.00 | 0 | Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card single port, QSFP56, PCIe 3.0/4.0 x16, RoHS. | ||
| Network Card(s) | AOC-653106A-ECAT | $ 1,100.00 | 0 | ConnectX-6 VPI Card. 100Gb/s InfiniBand & Ethernet Adapter Card, dual ports, QSFP56, PCIe 3.0/4.0 x16. HF, RoHS. | ||
| Network Card(s) | AOC-653106A-HDAT | $ 2,028.00 | 0 | Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card dual ports, QSFP56 PCIe 3.0/4.0 x16. HF, RoHS | ||
| Network Card(s) | AOC-683105AN-HDAT | $ 1,367.00 | 0 | Nvidia MCX683105AN-HDAT PCIe 1-port HDR 200G QSFP56 Gen 3.0/4.0x16 Cx-6 DE, RoHS | ||
| Network Card(s) | AOC-A100G-B2CM-O | 0 | AIOM Dual Port 100GbE QSFP28, based on Broadcom BCM57508 with 0.5U Bracket,RoHS | |||
| Network Card(s) | AOC-A100G-M2CM-O | 0 | AIOM 2-port 100GbE QSFP28, Mellanox CX-6 DX w/ 0.5U bracket,RoHS | |||
| Network Card(s) | AOC-A25G-B2SM-O | 0 | AIOM 2-port 25GbE SFP28, Broadcom BCM57414 with 0.5U bracket,RoHS | |||
| Network Card(s) | AOC-A25G-M2SM-O | 0 | AIOM 2-port 25GbE SFP28, Mellanox CX-6 LX w/ 0.5U height bracket,RoHS | |||
| Network Card(s) | AOC-AG-I2M-O | 0 | AIOM Dual-Port 1GbE RJ45, based on i350-AM2 with 0.5U Bracket, RoHS | |||
| Network Card(s) | AOC-ATG-I2SM-O | 0 | AIOM Dual-Port 10GbE SFP+, based on X710-BM2 with 0.5U Bracket,RoHS | |||
| Network Card(s) | AOC-ATG-I2TM-O | 0 | AIOM 2-port 10GBase-T, Intel X550, 0.5U height bracket, RoHS | |||
| Network Card(s) | AOC-ATG-I2T2SM-O | 0 | AIOM Quad-Port 10GbE (2x RJ45 & 2x SFP+) based on Intel X710-TM4 with 0.5U Bracket,RoHS | |||
| Network Card(s) | AOC-ATG-I4SM-O | 0 | AIOM Quad-Port 10GbE SFP+, based on Intel XL710-BM1 with 0.5U Bracket,RoHS | |||
| Network Card(s) | AOC-ATGC-I2TM-O | 0 | AIOM 2-port 10GBase-T RJ45, based on Intel Carlsville X710-AT2, w/ 1U BKT,RoHS | |||
| Network Card(s) | AOC-MCX516A-CCAT | $ 931.00 | 0 | Mellanox MCX516A-CCAT PCIe 2-port 100GbE QSFP28 Gen3.0 x16 CX-5. HF, RoHS | ||
| Network Card(s) | AOC-MCX555A-ECAT | $ 758.50 | 0 | CX-5 VPI EDR IB adapter & 100GbE,1p, QSFP28, PCIe3x16 | ||
| Network Card(s) | AOC-MCX556A-ECAT | $ 1,048.00 | 0 | CX-5 VPI, EDR IB, 100GbE, 2p, QSFP28, PCIe3x16 | ||
| Network Card(s) | AOC-S100G-B2C-O | 0 | Standard low-profile card based on Broadcom BCM57504. Two QSFP28 100Gbps Ethernet port PCIe 4.0 x 16 host interface, RoHS | |||
| Network Card(s) | AOC-S100GC-I2C-O | 0 | Standard PCIe 4.0 x 16 dual port 100GbE with QSFP28 based on Intel E810-CAM2,RoHS | |||
| Network Card(s) | AOC-S100G-M2C-O | 0 | Standard low-profile adapter card based on Mellanox ConnectX-4 chipset; two QSFP28 100Gpbs Ethernet ports, PCI-E 3.0 x16 host interface,RoHS | |||
| Network Card(s) | AOC-S25G-M2S-O | 0 | Standard low-profile 2-port 25GbE SFP28, based on Mellanox ConnectX-4 LX EN chipset.,RoHS | |||
| Network Card(s) | AOC-SGP-I2 | $ 106.00 | 0 | Intel® i350 AM2 2-port RJ45 (1Gb/port) Gen3 x4 Standard Low Profile | ||
| Network Card(s) | AOC-STG-B2T-O | 0 | Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS | |||
| Network Card(s) | AOC-STGF-I2S-O | 0 | Intel® X710-BM2 2-port SFP+ (10Gb/port) Gen3 x8 Standard Low Profile | |||
| Network Card(s) | AOC-STGS-I2T-P | 0 | Intel® X550-AT2 2 RJ45 (10Gb/port) Gen3 x4 Standard Low Profile | |||
| Network Card(s) | GPU-NVDPU-2H332A-AEEOT | 0 | NVIDIA BF2,2x25GbE,PCIe 4.0x8,2.5GHz,16 GB,1GbE OOB,HHHL | |||
| AIOM Dummy Cover | MCP-240-00194-0N | $ 19.00 | 0 | S-AIOM 2x2 Dummy Cover | ||
| RAID Card(s) | AOC-S3008L-L8I | $ 230.50 | 0 | 8 int 12Gb/s ports, 8xGen3, IOC/IR mode - LP | ||
| RAID Card(s) | AOC-S3108L-H8IR-16DD | $ 485.50 | 0 | 8 ports, 12Gb/s per port, 8 Internal, Low-profile, 16 SATA/SAS drives | ||
| RAID Card(s) | AOC-S3908L-H8IR-16DD-O | 0 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS | |||
| RAID Card(s) | AOC-SLG3-2H8M2-O | 0 | 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS | |||
| Thin Profile Drive | MCP-220-00178-0B | $ 24.50 | 0 | 2.5" thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH | ||
| Thin Profile Drive | MCP-220-00187-0B | $ 23.50 | 0 | 2.5 thin profile drive tray, standard color tab, for SC119UH | ||
| TPM security module | AOM-TPM-9665V | $ 43.00 | 0 | TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF; | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | 1 year of overnight replacement |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
