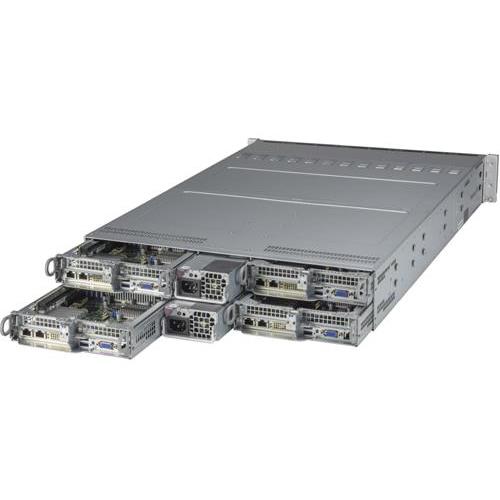

Supermicro SYS-620TP-HC0TR Twin 2U Barebone 4-Node Dual Intel Xeon Scalable Processors 3rd Generation
• High Performance Computing
• Hyper-Converged Infrastructure
• Big Data / Big Science
• Oil immersion, Liquid Cooling
Barebone 2U Rackmount SuperServer Four Nodes, Each Node Supports: Intel Xeon Scalable Processors 3rd Generation. Up to 4TB in 16 DIMM slots, LRDIMM/RDIMM, Intel C621A, On-Board: Intel C621A controller for 6 SATA3 (6 Gbps) ports, RAID 0/1/5/10, 4x 3.5in Hot-swap SATA/SAS Drive Bays, 2x 10GbE BaseT Port, 1x Dedicated IPMI LAN port, 2x SuperDOM (Disk on Module) port, 2200W Power Supply - (SYS-620TP-HC0TR + X12DPT-PT6)
This product is no longer available.

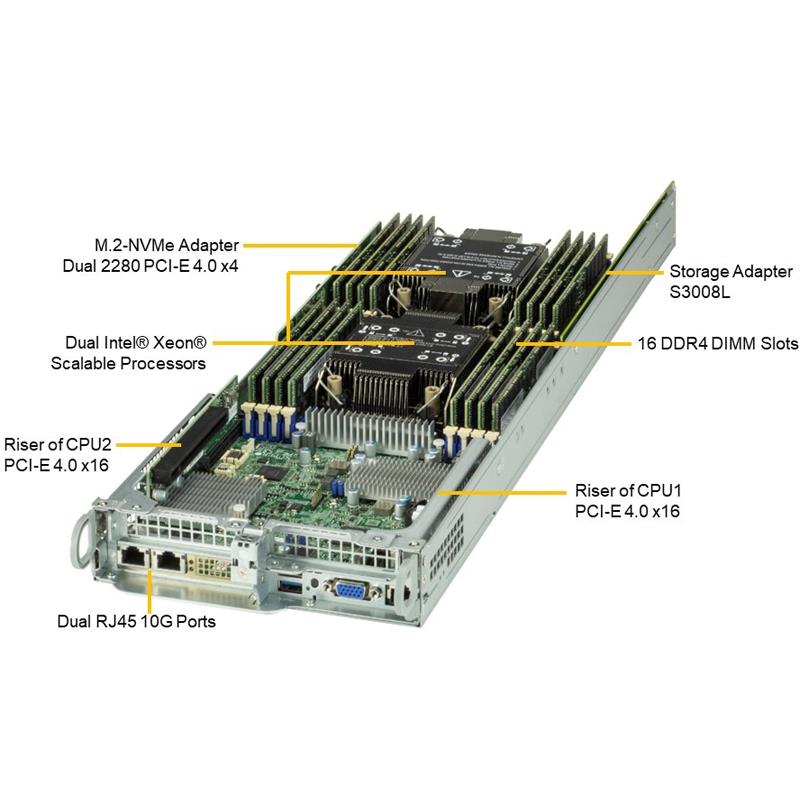

Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
Intel® C621A chipset
16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
2 PCI-E 4.0 x16 (LP), 1 PCI-E 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22x80 mm)
Intel® X710 Dual port 10GBase-T LAN onboard
3x 3.5" hot-swap SATA/SAS drive bays
4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)

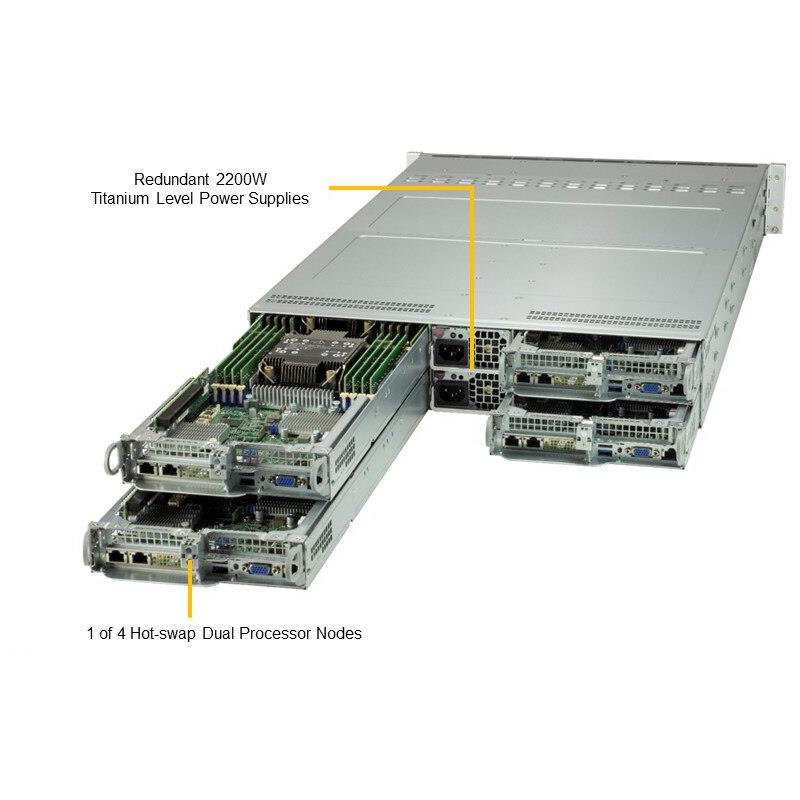

Two 2200W redundant power supplies with PMBus
ASPEED AST2600 BMC, 2 USB, VGA. RoT, 2 SATADOM ports Broadcom® 3008 SAS (12Gbps); 3 slots per node; RAID 0, 1, 1E/10 support.
Extra Specifications for Supermicro SYS-620TP-HC0TR Twin 2U Barebone 4-Node Dual Intel Xeon Scalable Processors 3rd Generation
| Product SKUs | ||
| SYS-620TP-HC0TR | SuperServer SYS-620TP-HC0TR ( Black front & sliver body ) | |
| Motherboard | ||
| Motherboard | Super X12DPT-PT6 | |
| Processor (per Node) | ||
| CPU | Dual Socket P+ (LGA 4189) | |
| 3rd Gen Intel® Xeon® Scalable processors | ||
| Support CPU TDP 185W * | ||
| Cores | Up to 32C/64T; Up to 48MB Cache | |
| Note | *Please contact Supermicro Technical Support for supporting conditions of high power (TDP 150W and above) or high base frequency (3.0 GHz and above) processors. | |
| System Memory (per Node) | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| UP to 4TB: 16x 256 GB DRAM | ||
| Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices (per Node) | ||
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 10GbE BaseT with Intel® X710-AT2 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output (per Node) | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| USB | 2 USB 3.0 port(s) (2 rear) | |
| Video | 1 VGA port(s) | |
| DOM | 2 Super DOM (Disk on Module) port | |
| Others | M.2 2 NVME M.2 (up to 22x80 mm) support via installed SCC-P2N2M2-P2 and M.2 for OS boot only. | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| Supermicro Out of Band (OOB) Software License Key (Included per Node) | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| ACPI/APM Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 5 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSV-827HQ+-R2K20BP4 | |
| Dimensions and Weight | ||
| Height | 3.47" (88mm) | |
| Width | 17.25" (438mm) | |
| Depth | 30.5" (774mm) | |
| Package | 10" (H) x 24.5" (W) x 45" (D) | |
| Weight | Net Weight: 72 lbs (32.7 kg) | |
| Gross Weight: 90 lbs (40.9 kg) | ||
| Available Color | Black front & sliver body | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Power status LED | |
| System information (overheat/UID) LED | ||
| Network activity LED | ||
| Expansion Slots (per Node) | ||

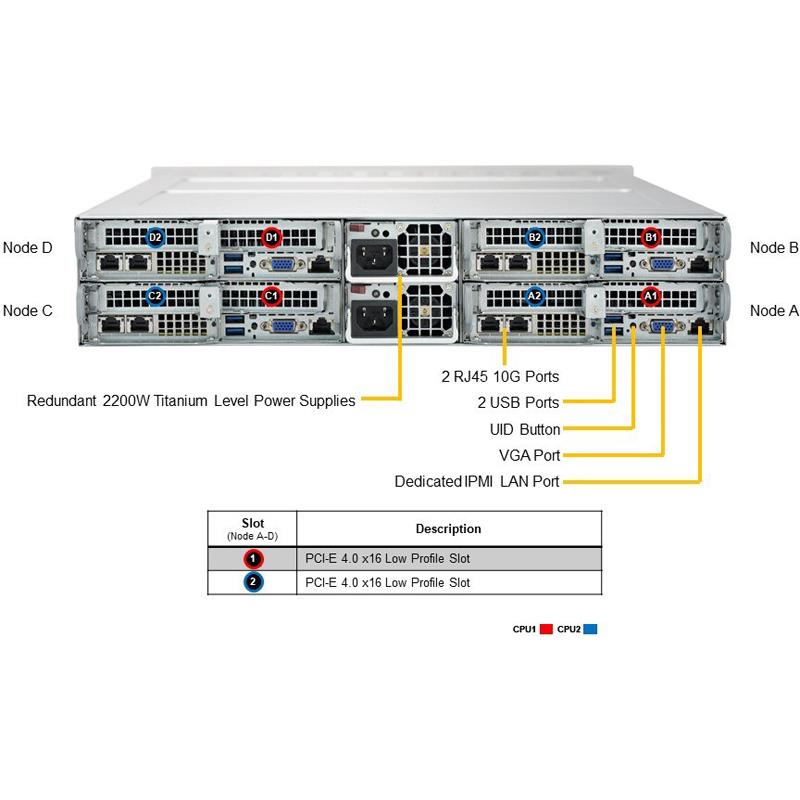

| PCI-Express (PCI-E) | Slot 1: PCI-E 4.0 x16 LP | |
| Slot 2: PCI-E 4.0 x16 LP | ||
| Internal Slot: M.2 | ||
| Drive Bays / Storage (per Node) | ||

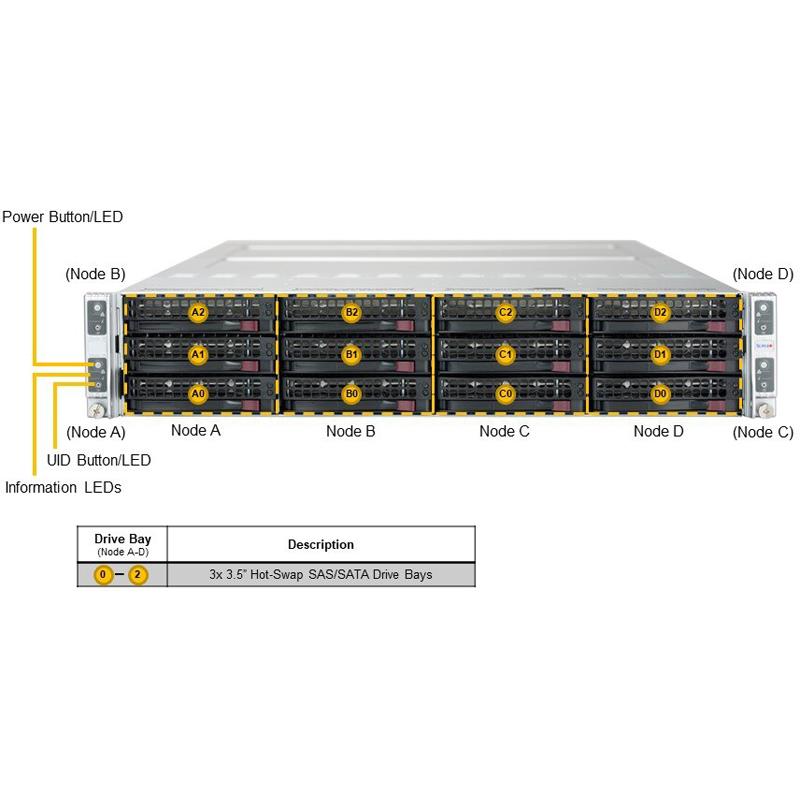

| Hot-swap | 3x 3.5" hot-swap SAS/SATA drive bays | |
| System Cooling | ||
| Fans | 4x 8cm heavy duty fans with optimal fan speed control | |
| Air Shroud | 4 Air Shroud(s) | |
| Power Supply | ||
| Power Supply | 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm | |
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| AC Input | 1200W: 100-127Vac / 50-60Hz | |
| 2200W: 200-240Vac / 50-60Hz | ||
| +12V | Max: 100A / Min: 0A (100Vac-127Vac) | |
| Max: 183.3A / Min: 0A (200Vac-240Vac) | ||
| 5V SB | Max: 1A / Min: 0A | |
| +54V | Max: 1A / Min: 0A | |
| Output Type | Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12DPT-PT6 | 4 | Super X12DPT-PT6 Motherboard | |
| Motherboard / Chassis | CSV-827HQ+-R2K20BP4 | 1 | 2U Chassis | |
| Backplane | BPN-ADP-S3008L-L6IP | 4 | LSI 3008, SAS 12Gbs (X6 port inside) | |
| Backplane | BPN-SAS3-827HQ3 | 1 | 2U 4-Node TwinPro Backplane for 3x3.5" SAS3/SATA3 HDD | |
| Cable 1 | CBL-PWCD-0900 | 2 | PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17 | |
| Air Shroud | MCP-310-21732-0B | 4 | TwinPro 2U4N plastic air shroud for X12DPT-PT6(2pcs) | |
| Riser Card | RSC-P-6G4 | 4 | 1U LHS TwinPro Riser card with one PCI-E 4.0x16lotH,RoHS | |
| Riser Card | RSC-PR-6-X2 | 4 | 1U RHS TwinPro Riser card with one PCI-E 4.0 x16 slot,HF,RoH | |
| Heatsink / Retention | SNK-P0077PM | 4 | X12 ICX/CPX 1U Passive CPU Heatsink (78x113x24.7mm), w/ Center Air channel | |
| Heatsink / Retention | SNK-P0077V | 4 | X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin | |
| *Power Supply | PWS-2K20A-1R | 2 | 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm | |
| *Power Distributor | PDB-PT217-H2412 | 1 | 2U support redundancy input powers up to 2.6KW for Twin seri | |
| *FAN 1 | FAN-0162L4 | 4 | 80x80x38 mm, 13.5K RPM, HCP, LMV, and LPC Cooling Fan,RoHS/REACH | |
| *Drive Tray(s) | MCP-220-00075-0B | 12 | Black gen 5.5 hot-swap 3.5" HDD tray | |
| *Rail Set | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2";W | |
| *Fan Holder | MCP-320-21701-0N | 2 | Twin Pro fan holder (hold 2 80x38 fans),RoHS/REACH |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
