- Supermicro SYS-1019P-FRDN2T WIO UP 1U Barebone Single Intel Xeon Scalable Processors 2nd Generation

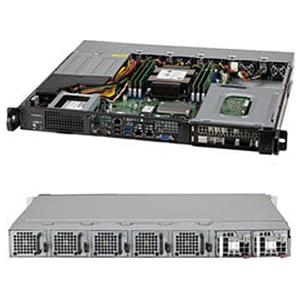

Supermicro SYS-1019P-FRDN2T WIO UP 1U Barebone Single Intel Xeon Scalable Processors 2nd Generation
• Multi-Access Edge Computing (MEC)
• Centralized/Cloud Radio Access
• Network (C-RAN)
• Universal Customer Premise
• Equipment (uCPE)
• Advanced Network Security
• Network Function Virtualization (NFV)
• Artificial Intelligence (AI) on Edge, Machine Learning (ML)
Barebone 1U Rackmount SuperServer, Supports Single Socket P (LGA 3647), Supporting Intel Xeon Scalable Processors 2nd Generation and Intel Xeon Scalable Processors (Up to 28-Core). Up to 1.5 TB in 6 DIMM slots, R/LRDIMM, Chipset: Intel C622, SATA3 RAID 0/1/05, 2x Fixed 2.5in Drive Bays, 2x 10GbE BaseT LAN Ports, 1x dedicated IPMI LAN port, 2x USB 3.0 ports, 2x USB 2.0 ports, 1x VGA port, 1x COM port, SuperDOM, 600W Power Supply, (CSE-515M-R601 + X11SPW-TF)
1. Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake) ‡
2. 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM
3. 2 PCI-E 3.0 x16 (FHFL) slots
4. 2 Fixed 2.5" Drive Bays
5. 2x 10 Gigabit Ethernet Ports
6. 2x USB 3.0, 2x USB 2.0
7. 5 Hot-swappalbe Fan Trays
8. 600W DC Redundant Power Supplies
Extra Specifications for Supermicro SYS-1019P-FRDN2T WIO UP 1U Barebone Single Intel Xeon Scalable Processors 2nd Generation
Product SKUs | ||
Product SKUs | SuperServer 1019P-FRDN2T (Black) | |
Motherboard | ||
Motherboard | Super X11SPW-TF | |
Processor/Cache | ||
CPU | Single Socket P (LGA 3647) | |
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ | ||
Support CPU TDP 70-205W * | ||
Cores | Up to 28 Cores | |
Note | * Certain high frequency optimized CPU are not supported, such as Intel Gold 6250 and 6256. Please contact Supermicro Technical Support for additional information. | |
‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | ||
System Memory | ||
Memory Capacity | 6 DIMM slots | |
Up to 1.5TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
On-Board Devices | ||
Chipset | Intel® C622 chipset | |
SATA | SATA3 (6Gbps) | |
Network Controllers | Dual 10GBase-T LAN with Intel® X722 + X557 | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Video | ASPEED AST2500 BMC | |
Input / Output | ||
SATA | 2 SATA3 (6Gbps) ports | |
LAN | 2 RJ45 10GBase-T LAN ports | |
1 RJ45 dedicated IPMI LAN port | ||
USB | 2 USB 2.0 ports | |
2 USB 3.0 ports | ||
Video | 1 VGA port | |
Serial Port / Header | 1 COM port | |
SuperDOM | Ports default connect to hard drive bays | |
System BIOS | ||
BIOS Type | AMI 32Mb SPI Flash ROM | |
Management | ||
Software | Watch Dog | |
NMI | ||
KVM with dedicated LAN | ||
SuperDoctor® 5 | ||
Intel® Node Manager | ||
IPMI 2.0 | ||
SPM , SUM | ||
Power Configurations | ACPI / APM Power Management | |
PC Health Monitoring | ||
CPU | 4+1 Phase-switching voltage regulator | |
Monitors for CPU Cores, Chipset Voltages, Memory. | ||
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Thermal Control for fan connectors | ||
Chassis | ||
Form Factor | 1U Rackmount | |
Model | CSE-515M-R601 | |
Dimensions and Weight | ||
Height | 1.7" (43mm) | |
Width | 17.2" (437mm) | |
Depth | 15.7" (399mm) | |
Package | 8" (H) x 27" (W) x 24" (D) | |
Weight | Net Weight: 18 lbs (8.16 kg) | |
Gross Weight: 29 lbs (13.15 kg) | ||
Available Colors | Black | |
Front Panel | ||
Buttons | Power On/Off button | |
System Reset button | ||
LEDs | Power LED | |
System Information LED | ||
Network activity LEDs | ||
Information LED (temp., status) | ||
Hard drive activity LED | ||
Expansion Slots | ||
PCI-Express | 2 PCI-E 3.0 x16 (FHFL) slots | |
M.2 | Key: M-Key | |
Double Height Connector | ||
1x M.2 Interface: PCI-E 3.0 x4 and SATA | ||
Form Factor: 2280, 22110 | ||
Drive Bays | ||
Fixed | 2 Fixed 2.5" Drive Bays | |
System Cooling | ||
Fans | 5x 40x56 Hot-Swappable Fan Trays | |
600W -48V DC input Redundant Power Supplies | ||
Total Output Power | 600W: -44Vdc to -65Vdc | |
Dimension (W x H x L) | 54.5 x 40 x 220 mm | |
DC Input | -44Vdc to -65Vdc / 18 - 10A | |
+12V | Max: 50A / Min: 0A | |
+5V sb | Max: 3A / Min: 0A | |
Output Type | Gold Finger Connector Mating with Molex 45984-4343 | |
Operating Environment | ||
RoHS | RoHS Compliant | |
Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) | |
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
Operating Temperature: 10°C ~ 40°C (50°F ~ 104°F) |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-X11SPW-TF | 1 | Super X11SPW-TF Motherboard | |
Motherboard / Chassis | CSE-515M-R601 | 1 | 1U Chassis | |
Cable 1 | CBL-0484L | 2 | 55CM 30AWG SATA S-S CBL | |
Cable 2 | CBL-OTHR-1214-24 | 2 | FAN cbl,1x4,M, to 1x4,F,14CM,3A/pin,22AWG,RoHS | |
FAN 1 | FAN-0207L4 | 5 | 40x40x56 mm, 13K-11K RPM,Counter-rotating, Hot-swappable Fan | |
Air Shroud | MCP-310-51507-0B | 1 | Mylar Air Shroud for SC515M + X11SPW/X12SPW | |
Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots | |
Heatsink / Retention | SNK-P0071VS | 1 | 1U Proprietary Passive CPU Heat Sink (124 mm Long) for SYS-2029BZ-HNR Series Servers (X11 2U4N 3UPI Big Twin) | |
* Power Supply | PWS-601D-1R | 2 | -48V DC input, 12V and 5Vsb 600W output for 1U redundancy | |
* Power Distributor | PDB-PT515M-2424 | 1 | 1U support redundancy up to 800W for SC515M chassis with ATX |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
Network Card(s) | AOC-SGP-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 | |||
Network Card(s) | AOC-SGP-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 | |||
Network Card(s) | AOC-STGN-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES | |||
Network Card(s) | AOC-STGF-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 | |||
Network Card(s) | AOC-STG-B4S | $ 408.00 | 0 | Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S | ||
Network Card(s) | AOC-STGS-i2T | 0 | Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 | |||
Network Card(s) | AOC-S25G-b2S | 0 | Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414 | |||
Network Card(s) | AOC-S25G-m2S | 0 | Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX | |||
TPM security module | AOM-TPM-9670V | $ 56.50 | 1 | TPM 2.0, vertical form factor | ||
TPM security module | AOM-TPM-9671V | $ 56.50 | 1 | TPM 1.2, vertical form factor | ||
Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
