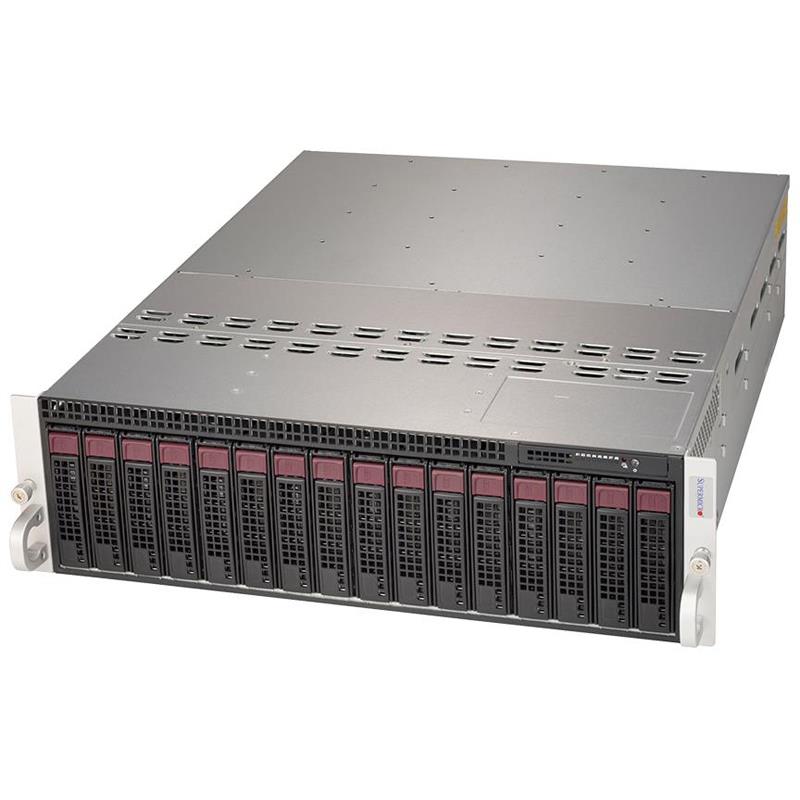

- Supermicro SYS-530MT-H8TNR MicroCloud 3U Barebone Single Intel Xeon E-2300 series and Pentium Processors 10th Generation
Supermicro SYS-530MT-H8TNR MicroCloud 3U Barebone Single Intel Xeon E-2300 series and Pentium Processors 10th Generation
• Cloud Computing
• Web Hosting, VM
• Online Game Server Hosting
• IT Infrastructure
• Web Cache
• Social Networking
Barebone 3U Rackmount SuperServer, Supports Intel Xeon E-2300 series and Pentium Processors 10th Generation. Up to 128GB in 4 DIMM slots, UDIMM, Chipset: Intel C256, SATA3 RAID 0/1/05/10, 2x 3.5in NVMe/SATA/SAS drive bays, 2x 1GbE LAN Ports, 1x VGA port, 1x COM Port (1 KVM), 2000W Power Supply, (CSE-938NH-R2K04BP2 + X12STD-F)
1. 8 set of Intel® Xeon® E-2300 series and Pentium processor
2. Intel® C256
3. 8 set of Up to 128GB ECC/non ECC UDIMM; DDR4 3200MHz, in 4 DIMM sockets
4. 8 set of PCIe 4.0 x8 (in x16 slot) low profile slot and 8 set of Micro-LP slots (MicroLP upgradable)
5. 8 set of Dual 1GbE LAN Ports
6. 8 set of 2x Front Hot-swappable 3.5" SATA3 HDD or Hybrid 2x 2.5" SAS/SATA3/NVMe U.2 drives w/ option kits
7. 2000W Redundant Titanium Level high-efficiency power supplies
Extra Specifications for Supermicro SYS-530MT-H8TNR MicroCloud 3U Barebone Single Intel Xeon E-2300 series and Pentium Processors 10th Generation
Motherboard | ||
Motherboard | Super X12STD-F | |
Processor (per Node) | ||
CPU | Single Socket H5 (LGA 1200,Socket H5 LGA 1200) | |
Intel® Xeon® E-2300 series and Pentium processor,Support Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors | ||
Support CPU TDP 80-95W | ||
Cores | Up to 8C/16T; Up to 16MB Cache | |
System Memory (per Node) | ||
Memory | Memory Capacity: 4 DIMM slots | |
Up to 128: 4x 32 GB DRAM | ||
Memory Type: 3200MHz ECC DDR4 UDIMM | ||
On-Board Devices (per Node) | ||
SATA | SATA (6Gbps) via Intel® C256; RAID 0, 1, 5, 10 support | |
Chipset | Intel® C256 | |
Network Connectivity | No NIC option supported | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Input / Output (per Node) | ||
SATA | 2 SATA3 (6Gbps) port(s) | |
LAN | 2 | |
Video | 1 VGA port(s) | |
Serial Port | 1 COM Port(s) (1 KVM) | |
System BIOS | ||
BIOS Type | AMI 128MB SPI Flash EEPROM | |
Management | ||
Software | Watch Dog | |
Intel Node Manager | ||
KVM with dedicated LAN | ||
SuperDoctor® 5 | ||
IPMI 2.0 | ||
SUM | ||
SSM | ||
SPM | ||
Power Configurations | Power-on mode for AC power recovery | |
ACPI 6.0 Power Management | ||
PC Health Monitoring | ||
CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. | |
3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V | ||
FAN | Cooling zone | |
Temperature | Monitoring for CPU and chassis environment | |
Chassis | ||
Form Factor | 3U Rackmount | |
Model | CSE-938NH-R2K04BP2 | |
Dimensions and Weight | ||
Height | 5.21" (132mm) | |
Width | 17.26" (438mm) | |
Depth | 23.2" (589mm) | |
Package | 11.65" (H) x 26.26" (W) x 34" (D) | |
Weight | Net Weight: 62.2 lbs (28.21 kg) | |
Gross Weight: 88 lbs (39.92 kg) | ||
Available Color | Black | |
Front Panel | ||
Buttons | Power On/Off | |
LEDs | 8 Individual Node Status Indicators | |
Power Failure | ||
Drive Bays / Storage (per Node) | ||
Hot-swap | 2x 3.5" hot-swap NVMe/SATA/SAS drive bays | |
M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 | |
System Cooling | ||
Fans | 4x 8cm heavy duty fans with optimal fan speed control | |
Air Shroud | 8 Air Shroud(s) | |
Power Supply | ||
Dimension (W x H x L) | 76 x 40 x 360 mm | |
AC Input | 1000W: 100-127Vac / 9.5A-12A / 50-60Hz | |
2000W: 200-240Vac / 9.8A-11.8A / 50-60Hz | ||
+12V | Max: 83.3A / Min: 0A (100Vdc-127Vdc) | |
Max: 166.7A / Min: 0A (200Vdc-240Vdc) | ||
5V SB | Max: 1A / Min: 0A | |
Output Type | 27 Pairs Gold Finger Connector | |
Certification | Titanium Level | |
Operating Environment | ||
RoHS | RoHS Compliant | |
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Product SKUs | ||
Product SKUs | SYS-530MT-H8TNR | |
Expansion Slots (per Node) | ||
PCI-Express (PCIe) | 1 PCIe 4.0 x16 LP slot(s) | |
1 PCIe 4.0 x8 MLP slot(s) |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-X12STD-F | 8 | Super X12STD-F Motherboard | |
Motherboard / Chassis | CSE-938NH-R2K04BP2 | 1 | 3U Chassis | |
Add-on Card / Module | AOC-CGP-I2-P | 8 | MicroLP 2-port GbE RJ45, Intel i350 | |
Add-on Card / Module | AOM-BPN-938NH-P | 1 | AOM-BPN-938NH, Backplane module for 8-node Microcloud system | |
Add-on Card / Module | AOM-LAN-MC8-P | 1 | AOM-LAN-MC8, LAN front panel module for 8-node Microcloud sy | |
Add-on Card / Module | AOM-PDB-PT938-LSG-P | 1 | AOM-PDB-PT938-LSG, PDB module for 8-node Microcloud system,H | |
Add-on Card / Module | AOM-PDB-PT938-RSG-P | 1 | AOM-PDB-PT938-RSG, PDB module for 8-node Microcloud system,H | |
Cable | CBL-0218L | 1 | 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB | |
Cable | CBL-PWCD-0578-1 OR | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS | |
Cable | CBL-PWCD-0578-IS | 0 | PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS | |
Cable | CBL-0355L | 2 | RJ45 C5E 2ft Green With Cover | |
Cable | CBL-0458L | 1 | 20 cm 30 pin to 30 pin Front control cable with tube. 28AWG | |
Cable | CBL-CDAT-0662 | 1 | 8 Pin to 8 Pin Round SGPIO Cable, 61.5cm, 28AWG, Pinout 1-1 | |
Riser Card | RSC-S-6G4 | 8 | 1U LHS Standard riser card with one PCIe 4.0 x16 slot,HF,Ro | |
Software | SFT-OOB-LIC | 8 | License key for enabling OOB BIOS management | |
Heatsink / Retention | SNK-P1041V | 8 | 1U Prop. Passive CPU HS for 6U 10-blade SuperBlade Series | |
Fan | FAN-0213L4 OR | 4 | 80x80x38 mm, 14.4K RPM Cooling Fan for 3U8N Microcloud Serie | |
Fan | FAN-0194L4 | 0 | 80x80x38 mm, 13.5K RPM Cooling Fan for 3U8N Microcloud Serie | |
*Power Supply | PWS-2K04A-1R | 2 | AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH | |
*Drive Tray(s) | MCP-220-00094-0B | 16 | Black gen 6.5 hot-swap 3.5 inch HDD Tray | |
*Control Board | MCP-280-93801-0B | 1 | Control panel module | |
*Rail Set | MCP-290-00057-0N | 1 | Rail set, quick/quick, default for 4U 17.2" W | |
*Air Shroud | MCP-310-93805-0B | 16 | Mylar air shroud for 2-DIMMs (quick install on DIMM latch) |
