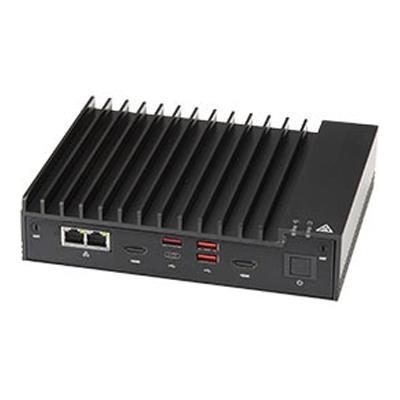

Supermicro SYS-E100-12T-H Fanless IoT 3.5" SBC Embedded Intel Core i7-1185GRE Processor 11th Generation
• Industrial Automation, Retail
• Smart Medical Expert Systems
• Kiosk, Interactive info system
• IoT Gateway for Smart Factory
• Smart Building
• Security and Surveillance
• Digital Signage
Barebone 3.5in SBC SuperServer, Embedded Intel Core i7-1185GRE Processor 11th Generation, 1.80GHz 4-Core/8 Thread/12MB Cache. Up to 64GB in 2 DIMM slots, SO-DIMM, Chipset: System on Chip, SATA3 (6Gbps), Key: B-Key, M-Key, E-Key (M.2 2242/3042/2280), Dual 2.5GbE LAN with Intel I225-IT, ALC 888S HD Audio, Intel Xe Graphics, Lockable 12V DC 84W power adapter, (CSE-E101-03 + X12STN-H-WOHS)
1. 11th Generation Intel® Core™ i7-1185GRE Processor; Single Socket FCBGA-1449
2. System-on-Chip
3. M.2: B-Key, M-Key, E-Key M.2 2242/3042/2280 B-Key (USB3.0/2.0, SATA Gen3/PCI-E Gen3 x1) with nano SIM holder M.2 2230 E-Key (CNVi/PCI-E 3.0 x1/USB2) M.2 2242/2280 M-Key (PCI-E 4.0 x4), NVMe support (add MCP-270-10105-0B Fin Bottom Cover)
4. Up to 64GB Unbuffered Non-ECC SO-DIMM DDR4 3200MHz; 2 DIMM slots
5. Dual 2.5GbE LAN w/ Intel I225-IT
6. 4 COM (RS-232/422/485), 3 USB 3.2, 1 USB-C 3.2, 4 USB 2.0, 1 DIO via DB9
7. 1 HDMI 2.0b (4K60Hz), 1 HDMI 1.4b
8. -30°C to 50°C Operating Temperature
9. Lockable 12V DC 84W power adapter
10. Hailo-8™ powerful and efficient Edge AI solution integration ready
Extra Specifications for Supermicro SYS-E100-12T-H Fanless IoT 3.5" SBC Embedded Intel Core i7-1185GRE Processor 11th Generation
| Motherboard | ||
| Motherboard | Super X12STN-H-WOHS | |
| Processor/Cache | ||
| CPU | System-on-Chip | |
| Single Socket FCBGA-1449 | ||
| CPU TDP support up to 12/15/28W | ||
| 11th Generation Intel® Core™ i7-1185GRE Processor | ||
| Note | BIOS version 2.0 or above is required | |
| System Memory | ||
| Memory Capacity | Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-3200MHz, in 2 DIMM slots | |
| Memory Type | DDR4 up to 3200MHz | |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Controllers | Dual 2.5GbE LAN with Intel® I225-IT | |
| Audio | ALC 888S HD Audio | |
| Video | Intel® Xe Graphics | |
| Input / Output | ||
| USB | 3 USB 3.2 ports, 1 USB-C 3.2 port, 4 USB 2.0 ports | |
| Video Output | 1 HDMI 2.0b (4K60Hz), 1 HDMI 1.4b | |
| COM Port | 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control | |
| Audio | 1 HD Audio header (Mic-in/Line-Out) [optional] | |
| Others | 8-bit configurable GPIO via DB9 | |
| Chassis | ||
| Form Factor | 3.5" SBC | |
| Model | CSE-E101-03 | |
| Dimensions | ||
| Width | 7.68" (195mm) / 11.81" (300mm) - pkg. | |
| Height | 1.73" (44mm) / 5.12" (130mm) - pkg. | |
| Depth | 5.94" (150mm) / 11" (279mm) - pkg. | |
| Weight | Gross Weight: 4.5 lbs (2.04 kg) | |
| Net Weight: 2.65 lbs (1.2 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED and Hard drive activity LED | |
| Expansion Slots | ||
| M.2 | Key: B-Key, M-Key, E-Key | |
| M.2 2242/3042/2280 | ||
| B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder | ||
| E-Key (CNVi/PCI-E 3.0 x1/USB2) M.2 2242/2280 | ||
| M-Key (PCI-E 4.0 x4), NVMe support | ||
| System Cooling | ||
| Fans | Fan-less design | |
| Power Supply | ||
| Power Supply | Lockable 12V DC 84W power adapter | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Software | Watch Dog | |
| AMT | ||
| vPro | ||
| SuperDoctor® 5 | ||
| Power Configurations | ACPI Power Management | |
| Control of power-on for recovery from AC power loss | ||
| Force Power On by Jumper | ||
| CPU thermal trip support for processor protection | ||
| +12V ~ +24V DC Wide power range input | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis | ||
| Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms | ||
| Operating Temperature: -30°C ~ 50°C (-22°F ~ 122°F) with 0.7 m/s air flow. The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature. | ||
| Product SKUs | ||
| Product SKUs | SuperServer E100-12T-H (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12STN-H-WOHS | 1 | Super X12STN-H-WOHS Motherboard | |
| Motherboard / Chassis | CSE-E101-03 | 1 | Fanless Enclosure for 3.5" motherboard | |
| Power Adapter | MCP-250-10137-0N | 1 | 84W, Locable AC to DC adapter without power cord - EN62368 |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Chassis Parts | MCP-270-10105-0B | $ 110.50 | 0 | CSE-E101-03 FIN base option kit for SYS-E100-12T |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
