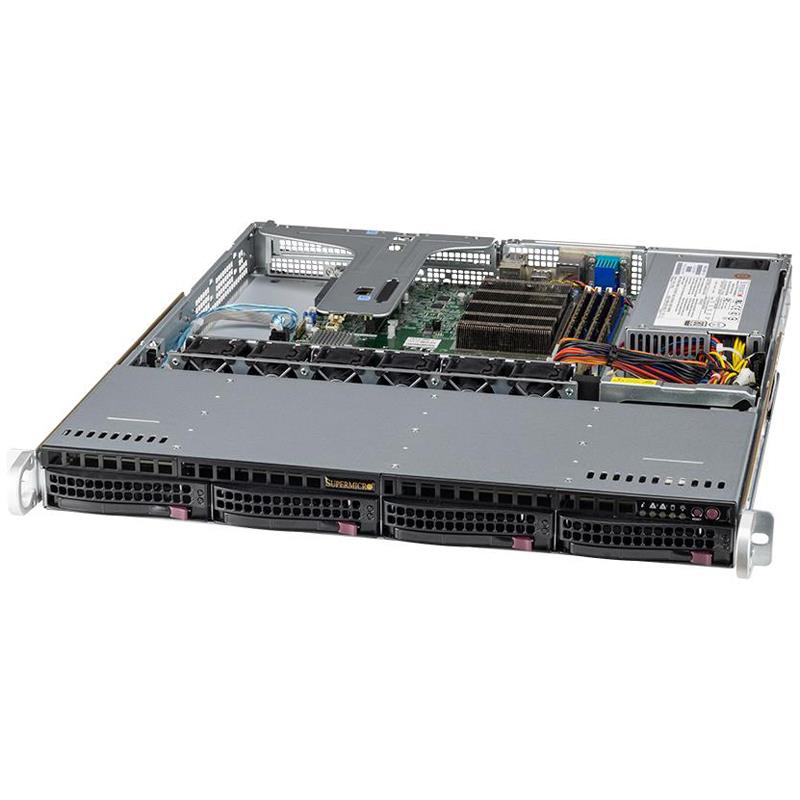

- Supermicro SYS-510T-M Up 1U Barebone Single Intel Xeon E-2300 Series Processors and Intel Pentium Processors 10th Generation
Supermicro SYS-510T-M Up 1U Barebone Single Intel Xeon E-2300 Series Processors and Intel Pentium Processors 10th Generation
• Web/Hosting Application
• Email/Firewall/Print Server
• General Purpose
Barebone 1U Rackmount SuperServer, Supports Single Socket H5 (LGA-1200), Supporting Intel Xeon E-2300 Series Processors and Intel Pentium Processors 10th Generation. Up to 128GB in 4 DIMM slots, UDIMM, Chipset: Intel C256, SATA3 RAID 0/1/05/10, 4x 3.5in SATA drive bays, M-key, 2280, 22110, 2x 1GbE LAN Ports, 1x Dedicated IPMI LAN port, 1x VGA port, 2x COM Ports (1 header, 1 rear), 2x SuperDOM (Disk on Module) port with built-in power, 350W Power Supply, (CSE-813MF2TQC-350RCBP + X12STH-SYS)
1. Single Socket H5 (LGA-1200) supports Intel® Xeon® E-2300 series, Intel® Pentium® processors
2. 4 DIMMs; Up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz
3. 1 PCIe 4.0 x16 or 2 PCIe 4.0 x8 (FHHL); 1 Dedicated Internal HBA slot
4. Intel® Ethernet Controller i210 2x 1GbE RJ45
5. Single Platinum 350W Power Supply
Extra Specifications for Supermicro SYS-510T-M Up 1U Barebone Single Intel Xeon E-2300 Series Processors and Intel Pentium Processors 10th Generation
| Motherboard | ||
| Motherboard | Super X12STH-SYS | |
| Processor | ||
| CPU | Support CPU TDP 95W | |
| Single Socket H5 (LGA 1200) | ||
| Support Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors | ||
| Cores | Up to 8C/16T; Up to 16MB Cache | |
| System Memory | ||
| Memory | Memory Capacity: 4 DIMM slots | |
| Memory Type: 3200/2933/2666MHz ECC DDR4 UDIMM | ||
| Up to 128GB: 4x 32 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Yes | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support (Port 0-5) | |
| Chipset | Intel® C256 | |
| Network Connectivity | 2x 1GbE BaseT with Intel® i210 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| SATA | 8 SATA (6Gbps) port(s) | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 1GbE LAN ports | ||
| USB | 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A) | |
| 6 USB 2.0 port(s) (4 headers; 2 rear) | ||
| Video | 1 VGA port(s) | |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) | |
| DOM | 2 Super DOM (Disk on Module) port with built-in power | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | NMI | |
| KVM with dedicated LAN | ||
| Redfish API | ||
| Intel® Node Manager | ||
| SUM | ||
| SSM | ||
| SPM | ||
| IPMI2.0 | ||
| Power Configurations | ACPI/APM Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 6 + 2 + 1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-813MF2TS-350RCBP | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 19.98" (507mm) | |
| Package | 8.5" (H) x 24" (W) x 29.5" (D) | |
| Weight | Net Weight: 17.6 lbs (8 kg) | |
| Gross Weight: 30.4 lbs (13.8 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | System Reset | |
| Power On/Off | ||
| LEDs | Power status | |
| System information | ||
| Device Activity | ||
| LAN 1 Activity | ||
| LAN 2 Activity | ||
| Drive Bays / Storage | ||
| Drive Bays | 4x 3.5" SATA drive bays | |
| M.2 | M-key, 2280, 22110 | |
| 1x PCIe 3.0 x 4 | ||
| Peripheral Bays | 2x 2.5" drive bays | |
| System Cooling | ||
| Fans | 2 AOC cooling Fan(s) (optional) | |
| 4 middle cooling PWM 40x40x28mm Fan(s) | ||
| Power Supply | ||
| Total Output Power | 350W | |
| Dimension (W x H x L) | 100 x 40 x 180 mm | |
| AC Input | 350W: 100-240Vac / 2.5A-5A / 50-60Hz | |
| +12V | Max: 29A / Min: 0.5A | |
| 5V SB | Max: 3A / Min: 0A | |
| Certification | Platinum Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-510T-M | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe 4.0 x16 or x8 slot(s) | |
| 1 PCIe 4.0 x0 or x8 (LP) [Auto Switch with Slot 1] slot(s) | ||
| 1 Dedicated Internal HBA Slot slot(s) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12STH-SYS | 1 | Super X12STH-SYS Motherboard | |
| Motherboard / Chassis | CSE-813MF2TS-350RCBP | 1 | 1U Chassis | |
| Backplane | BPN-SAS3-815TQ | 1 | 1U 4-Port 12Gbps Backplane Support 4x3.5 | |
| Cable | CBL-0296L | 1 | 9" 4 PIN FAN PWS EXTENSION CORD, PBF | |
| Cable | CBL-SAST-0811 | 1 | MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG | |
| Cable | CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF | |
| Cable | CBL-PWCD-0160-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Air Shroud | MCP-310-81307-0B | 1 | Mylar Air Shroud for SC813MF2/SC113MF_RCB with X12STH | |
| Manual | MNL-2419-QRG | 1 | 510T-M/MR Quick Reference Guide | |
| Riser Card | Proprietary Riser Card | 1 | 1U RHS Standard Riser card with one PCIe 4.0 X16 and one PC | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | Proprietary Heatsink | 1 | Proprietary 1U Passive CPU HS, Rocket Lake (SKT-H5 LGA-1200) | |
| *Power Supply | PWS-350-1H | 1 | 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm) | |
| *Peripheral Drive | CSE-PT93L-B | 1 | Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS | |
| *Fan | FAN-0154L4 | 4 | 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH | |
| *Front Panel | FPB-FP813-D | 1 | Front control board dual color for SC815,SC813M (C) | |
| *Drive Tray(s) | MCP-220-00075-0B | 4 | Black gen 5.5 hot-swap 3.5" HDD tray | |
| *Rear Window | MCP-240-00196-0N | 1 | Non-C Rear window Assy for SC813MF2_RCB Single PWS | |
| *Rail Set | MCP-290-00102-0N | 1set | Outer rail, quick-release type, 25.6 | |
| *Rail Set | MCP-290-00108-0N | 1set | Inner rail, front, short, quick-release type | |
| *Rail Set | MCP-290-00110-0N | 1set | Inner rail, extension (quick) for 1U 17.2 | |
| *Fan Holder | MCP-320-00060-0N | 1 | Slim Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12"x10.15") | |
| *Parts | MCP-340-00001-01 | 2 | Dummy fan 40x28mm |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3.5" to 2.5" Converter Tray(s) | MCP-220-00043-0N • | 0 | Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black | |||
| CacheVault | BTR-CV3108-U1 + MCP-240-81305-0N (For S3108) | 1 | CacheVault for Broadcom 3108 with SuperCap mounting bracket for internal fixed location | |||
| CacheVault | BTR-L3-00099-02 + MCP-240-81305-0N (For S3908) | 1 | CacheVault for Broadcom 3908 with SuperCap mounting bracket for internal fixed location | |||
| Cooling Fan(s) | FAN-0154L4 • | 0 | 40x40x28 mm, 22.5K RPM, Middle Cooling Fan | |||
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT5 | $ 74.50 | 1 | TEAC slim DVD-ROM SATA drive | ||
| DVD-ROM / DVD-RW | DVM-TEAC-DVDRW-SBT5 | $ 83.00 | 1 | PHILPS slim DVD-RW SATA drive | ||
| DVD-ROM Accessory | MCP-220-81502-0N • | 1 | Slim SATA DVD mounting kit | |||
| Front Bezel | CSE-PTFB-813-02B | $ 25.50 | 1 | Black Front Bezel w/ Round Venting Holes | ||
| Front Bezel | CSE-PTFB-813LB | $ 27.00 | 1 | Black Front Bezel | ||
| Hot-swap 2.5" kit (DVD slot) | MCP-220-81506-0N • | 1 | Single 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor | |||
| Hot-swap 2.5" kit (FDD slot) | MCP-220-81504-0N • | 1 | Single 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor | |||
| Inlet Thermal Sensor | MCP-280-00034-0N | $ 31.50 | 1 | Universal Thermal sensor kit with 40cm I2C cable | ||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Storage Control Card and Cable(s) | AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1275A-100 | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR-16DD | 1 | Standard LP, 8 Internal ports (12Gb/s) PCIe 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8I | $ 230.50 | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 63HDD; RAID 0, 1, 10 | ||
| Storage Control Card and Cable(s) (HBA) | AOC-S3808L-L8IT + 1x CBL-SAST-1275A-100 | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA | |||
| Storage Control Card and Cable(s) (HBA) | AOC-S3008L-L8E | $ 230.50 | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 122HDD; HBA | ||
| TPM | AOM-TPM-9671H-O | 1 | TPM 1.2, horizontal form factor | |||
| TPM | AOM-TPM-9670H-O | 1 | TPM 2.0, horizontal form factor |
