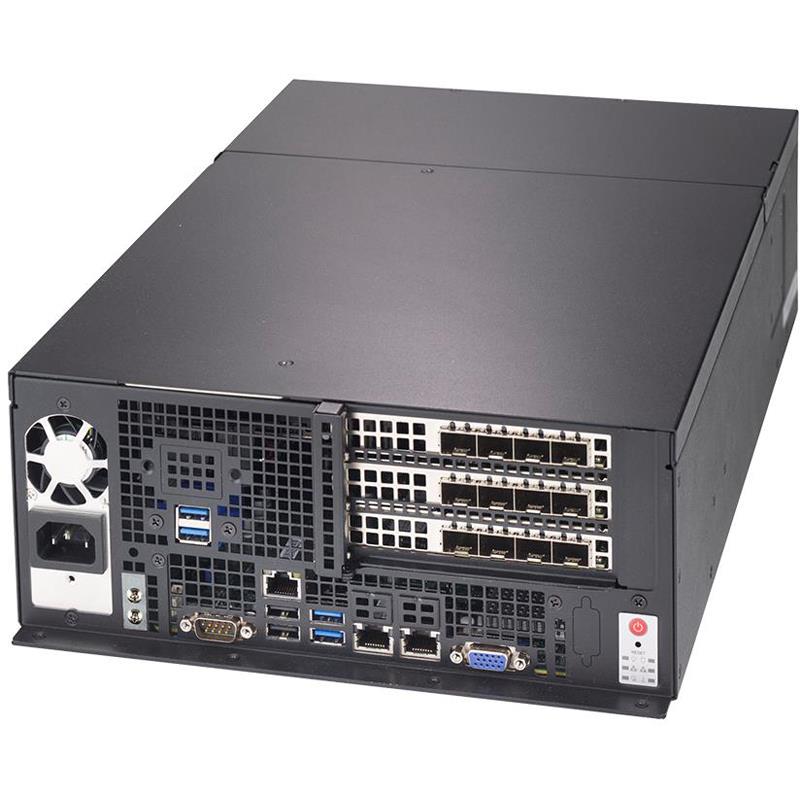

Supermicro SYS-E403-12P-FN2T IoT Server Box PC Single Intel Xeon Scalable Processors 3rd Generation

• Multi-Access Edge Computing (MEC)
• Universal Customer Premise Equipment (uCPE)
• Network Function Virtualization (NFV)
• Artificial Intelligence (AI) on Edge, Machine Learning (ML)
• Industrial Automation, Retail, Smart Medical Expert Systems

Barebone Box PC, Supports Single Socket P+ (LGA-4189), Supporting Intel Xeon Scalable Processors 3rd Generation, Supports up to 205W TDP CPUs (Air Cooled). Up to 2TB in 8 DIMM slots, L/RDIMM, Intel Optane Persistent Memory 200 Series, Chipset: Intel C621A, On-Board: Controller SATA3 (6Gbps), RAID 0/1, 4x 2.5in SATA drive bays, M-Key: 2280/22110, 2x 10GbE BaseT Port, IPMI, 600W Power Supply - (SYS-E403-12P-FN2T + X12SPW-TF)

1. Single Socket Intel® Xeon-SP (Ice Lake) up to 32 Cores
2. 3x PCIe4.0 x16 slot
3. 2x 10 Gigabit Ethernet Ports
4. 4x 2.5" Internal Drive Bays
5. 4x USB 3.0, 2x USB 2.0

Extra Specifications for Supermicro SYS-E403-12P-FN2T IoT Server Box PC Single Intel Xeon Scalable Processors 3rd Generation

Motherboard
Motherboard	Super X12SPW-TF
Processor
CPU	3rd Gen Intel® Xeon® Scalable processors
	Single Socket P+ (LGA-4189)
	Support CPU TDP 85-205W
Cores	Up to 32C/64T; Up to 48MB Cache
System Memory
Memory	Memory Capacity: 8 DIMM slots
	Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Memory Voltage	1.2 V
Error Detection	ECC
On-Board Devices
SATA	SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset	Intel® C621A
Network Connectivity	2x 10GbE BaseT port(s)
IPMI	Support for Intelligent Platform Management Interface v.2.0
	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
Video	1 VGA port(s)
Serial Port	1 COM Port(s) (1 front)
System BIOS
BIOS Type	AMIUEFI
BIOS Features	ACPI 6.0
	RTC (Real Time Clock) Wakeup
	SMBIOS 3.0 or later
Management
Software	Watch Dog
	NMI
	KVM with dedicated LAN
	SuperDoctor® 5
	Intel® Node Manager
	IPMI 2.0
	SUM
	SPM
Power Configurations	Power-on mode for AC power recovery
	ACPI Power Management
Chassis
Form Factor	Box PC
Model	CSE-E403iF-000NBP
Dimensions and Weight
Height	4.3" (109mm)
Width	10.5" (267mm)
Depth	16" (406mm)
Package	10.4" (H) x 16.4" (W) x 26" (D)
Weight	Net Weight: 18 lbs (8.16 kg)
	Gross Weight: 24 lbs (10.89 kg)
Available Color	Black
Front Panel
Buttons	UID button
	Power On/Off
LEDs	HDD activity
	Power status
	LAN1 activity
	System information
	LAN2 activity
Drive Bays / Storage
Drive Bays	4x 2.5" SATA drive bays
M.2	1 M.2 NVMe OR 1 M.2 SATA3
	M-Key, 2280/22110
System Cooling
Fans	3 heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud(s)
Power Supply
Dimension (W x H x L)	100 x 40 x 220 mm
AC Input	600W: 100-240Vac / 3.5A-7.5A / 50-60Hz
Operating Environment
Environmental Spec.	Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
	Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F)
Product SKUs
Product SKUs	SYS-E403-12P-FN2T
Expansion Slots
PCI-Express (PCIe)	3 PCIe 4.0 x16 FHFL slot(s)

Name	Part Number	Qty.	Description
	Motherboard / Chassis	MBD-X12SPW-TF	1	Super X12SPW-TF Motherboard
Motherboard / Chassis	CSE-E403iF-000NBP	1	Fan-based Embedded Chassis
	Cable	CBL-0082L	2	Y SPLIT SATA POWER ADAPTER, PB FREE
	Cable	CBL-CUSB-0832	1	USB 3.0(F) Type A 2x to USB3.0 20pin,73CM,30AWG,RoHS
	Cable	CBL-PWCD-0260-IS	1	PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
	Cable	CBL-SAST-0616	1	Internal Mini SAS HD to 4 SATA 50CM, S, w/50cm SB
	Cable	CBL-SAST-1207LP1-85	2	SlimSAS x8 STR to SlimSASLP x8 STR,20CM,LnRvs,85Ohm,RoHS
	Cable	CBL-0156L	1	ROUND 16PIN TO 16PIN FP CABLE,40CM, PB FREE
	Fan	FAN-0200L4	3	80x80x38 mm, 13.5K RPM Cooling Fan for CSE-E403IF, RoHS
Parts	MCP-260-00078-0B	1	1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black
	Parts	MCP-260-00144-0B	1	1U I/O Shield for X11SDW with EMI Gasket, Black
	Air Shroud	MCP-310-40304-0B	1	Mylar air shroud for X12SPW in CSE-E403iF,Black
Manual	MNL-2455-QRG	1	E403-12P-FN2T Quick Reference Guide
	Power Supply	PWS-601-1H	1	1U 600/680W MULTI OUTPUT PWS 80+ GOLD
Riser Card	RSC-W2R-666G4	1	2U RHS WIO Riser card with threePCI-E4.0X16Slots,HF,RoHS
	Software	SFT-OOB-LIC	1	License key for enabling OOB BIOS management
	Heatsink / Retention	SNK-P0077V	1	X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Front Panel	FPB-FP826-D	1	Front control board Dual color LED(FP826-D)forSC826,213,216,
*Front Panel	FPB-TB826	1	16 pin Cable Adaptor Board for SC826

Note:

• Parts with * are inside the chassis

• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Supermicro SYS-E403-12P-FN2T IoT Server Box PC Single Intel Xeon Scalable Processors 3rd Generation

$ 1,376.00$ 1,376.001376.0USD

$ 1,376.00
