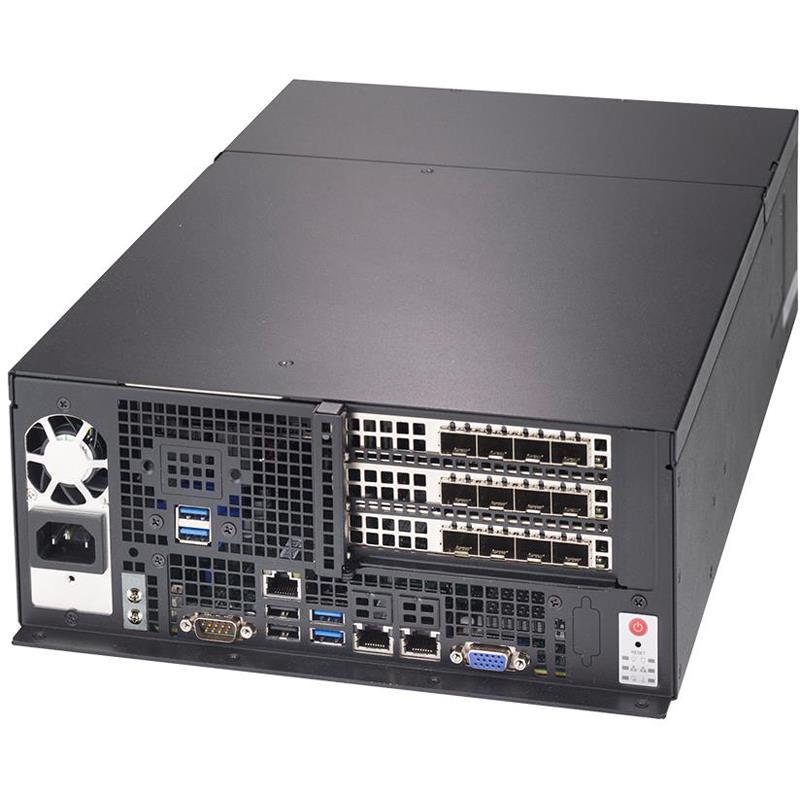

Supermicro SYS-E403-12P-FN2T IoT Server Box PC Single Intel Xeon Scalable Processors 3rd Generation
• Multi-Access Edge Computing (MEC)
• Universal Customer Premise Equipment (uCPE)
• Network Function Virtualization (NFV)
• Industrial Automation
• Edge AI
Barebone Box PC, Supports Single Socket P+ (LGA-4189), Supporting Intel Xeon Scalable Processors 3rd Generation, Supports up to 205W TDP CPUs (Air Cooled). Up to 2TB in 8 DIMM slots, L/RDIMM, Intel Optane Persistent Memory 200 Series, Chipset: Intel C621A, On-Board: Controller SATA3 (6Gbps), RAID 0/1, 4x 2.5in SATA drive bays, M-Key: 2280/22110, 2x 10GbE BaseT Port, IPMI, 600W Power Supply - (SYS-E403-12P-FN2T + X12SPW-TF)
1. Single Socket Intel® Xeon-SP (Ice Lake) up to 32 Cores
2. 3x PCIe4.0 x16 slot
3. 2x 10 Gigabit Ethernet Ports
4. 4x 2.5" Internal Drive Bays
5. 4x USB 3.0, 2x USB 2.0
Extra Specifications for Supermicro SYS-E403-12P-FN2T IoT Server Box PC Single Intel Xeon Scalable Processors 3rd Generation
| Motherboard | ||
| Motherboard | Super X12SPW-TF | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Single Socket P+ (LGA-4189) | ||
| Support CPU TDP 85-205W | ||
| Cores | Up to 32C/64T; Up to 48MB Cache | |
| System Memory | ||
| Memory | Memory Capacity: 8 DIMM slots | |
| Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 10GbE BaseT port(s) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 front) | |
| System BIOS | ||
| BIOS Type | AMIUEFI | |
| BIOS Features | ACPI 6.0 | |
| RTC (Real Time Clock) Wakeup | ||
| SMBIOS 3.0 or later | ||
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SPM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Chassis | ||
| Form Factor | Box PC | |
| Model | CSE-E403iF-000NBP | |
| Dimensions and Weight | ||
| Height | 4.3" (109mm) | |
| Width | 10.5" (267mm) | |
| Depth | 16" (406mm) | |
| Package | 10.4" (H) x 16.4" (W) x 26" (D) | |
| Weight | Net Weight: 18 lbs (8.16 kg) | |
| Gross Weight: 24 lbs (10.89 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | UID button | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| LAN1 activity | ||
| System information | ||
| LAN2 activity | ||
| Drive Bays / Storage | ||
| Drive Bays | 4x 2.5" SATA drive bays | |
| M.2 | 1 M.2 NVMe OR 1 M.2 SATA3 | |
| M-Key, 2280/22110 | ||
| System Cooling | ||
| Fans | 3 heavy duty fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 100 x 40 x 220 mm | |
| AC Input | 600W: 100-240Vac / 3.5A-7.5A / 50-60Hz | |
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-E403-12P-FN2T | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 3 PCIe 4.0 x16 FHFL slot(s) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12SPW-TF | 1 | Super X12SPW-TF Motherboard | |
| Motherboard / Chassis | CSE-E403iF-000NBP | 1 | Fan-based Embedded Chassis | |
| Cable | CBL-0082L | 2 | Y SPLIT SATA POWER ADAPTER, PB FREE | |
| Cable | CBL-CUSB-0832 | 1 | USB 3.0(F) Type A 2x to USB3.0 20pin,73CM,30AWG,RoHS | |
| Cable | CBL-PWCD-0260-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH | |
| Cable | CBL-SAST-0616 | 1 | Internal Mini SAS HD to 4 SATA 50CM, S, w/50cm SB | |
| Cable | CBL-SAST-1207LP1-85 | 2 | SlimSAS x8 STR to SlimSASLP x8 STR,20CM,LnRvs,85Ohm,RoHS | |
| Cable | CBL-0156L | 1 | ROUND 16PIN TO 16PIN FP CABLE,40CM, PB FREE | |
| Fan | FAN-0200L4 | 3 | 80x80x38 mm, 13.5K RPM Cooling Fan for CSE-E403IF, RoHS | |
| Parts | MCP-260-00078-0B | 1 | 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black | |
| Parts | MCP-260-00144-0B | 1 | 1U I/O Shield for X11SDW with EMI Gasket, Black | |
| Air Shroud | MCP-310-40304-0B | 1 | Mylar air shroud for X12SPW in CSE-E403iF,Black | |
| Manual | MNL-2455-QRG | 1 | E403-12P-FN2T Quick Reference Guide | |
| Power Supply | PWS-601-1H | 1 | 1U 600/680W MULTI OUTPUT PWS 80+ GOLD | |
| Riser Card | RSC-W2R-666G4 | 1 | 2U RHS WIO Riser card with threePCI-E4.0X16Slots,HF,RoHS | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0077V | 1 | X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin | |
| *Front Panel | FPB-FP826-D | 1 | Front control board Dual color LED(FP826-D)forSC826,213,216, | |
| *Front Panel | FPB-TB826 | 1 | 16 pin Cable Adaptor Board for SC826 |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
