Supermicro SYS-E102-9AP-LN4-C 3.5" SBC Fan-based Embedded Intel Celeron J3455 Processor
• IoT Gateway
• Network Security Appliance
• SD WAN
• Embedded Networking Applications
Barebone 3.5" SBC, Embedded Intel Celeron J3455 Processor, 1.50GHz 4-Core. Up to 8TB in 1 DIMM slots, SO-DIMM, Intel System on Chip, On-Board: SoC controller for 1 SATA3 (6 Gbps) ports, 1x 2.5in Drive Bays, 1x M.2 SATA3, 4x 1GbE, 1x COM Port, FSP 12V 60W Lockable Power Adapter - (SYS-E102-9AP-LN4-C + A2SAN-LN4-C)
1. Intel® Celeron J3455 4C/4T Processor with up to 8GB DDR3L 1866MHz SODIMM
2. Intel® HD Graphics
3. 4x Gigabit LAN Ports ( C: Intel® I211 AT)
4. 3x M.2 B Key (USB) 2242/3042 with 3x Nano SIM Slot, 1x M.2 E Key 2230 1x 2.5” 7mm Storage Drive
5. 2x USB 3.2 Ports Gen1, 1 HDMI Port, 1 COM Port
Extra Specifications for Supermicro SYS-E102-9AP-LN4-C 3.5" SBC Fan-based Embedded Intel Celeron J3455 Processor
| Motherboard | ||
| Motherboard | Super A2SAN-LN4-C | |
| Processor | ||
| CPU | Single Single Socket FCBGA-1296 supported | |
| Intel® Celeron® Processor J3455 | ||
| Support CPU TDP 10W | ||
| Cores | Up to 4C/4T; Up to 2MB Cache | |
| System Memory | ||
| Memory | Memory Capacity: 1 DIMM slots | |
| Up to 8GB: SO-DIMM | ||
| Memory Type: 1866MHzMHz DDR3L up to 8GB | ||
| On-Board Devices | ||
| SATA | SATA3 (6Gbps) | |
| Chipset | intel System on Chip | |
| Network Connectivity | 4x 1GbE BaseT | |
| Input / Output | ||
| LAN | 4 RJ45 GbE LAN ports | |
| Serial Port | 1 COM Port(s) (1 front) | |
| System BIOS | ||
| BIOS Type | AMIUEFI | |
| BIOS Features | SMBIOS 3.0 | |
| UEFI 2.5 | ||
| Management | ||
| Software | SuperDoctor® 5 | |
| Power Configurations | Power Button Function | |
| Watch Dog Function | ||
| Restore on AC Power Loss | ||
| DeepSx Power Policies | ||
| Chassis | ||
| Form Factor | 3.5" SBC | |
| Model | CSE-E102TF | |
| Dimensions and Weight | ||
| Height | 1.72" (44mm) | |
| Width | 7.48" (190mm) | |
| Depth | 4.72" (120mm) | |
| Package | 1.72" (H) x 11.81" (W) x 4.72" (D) | |
| Weight | Net Weight: 2.65 lbs (1.2 kg) | |
| Gross Weight: 4.5 lbs (2.04 kg) | ||
| Available Color | Black | |

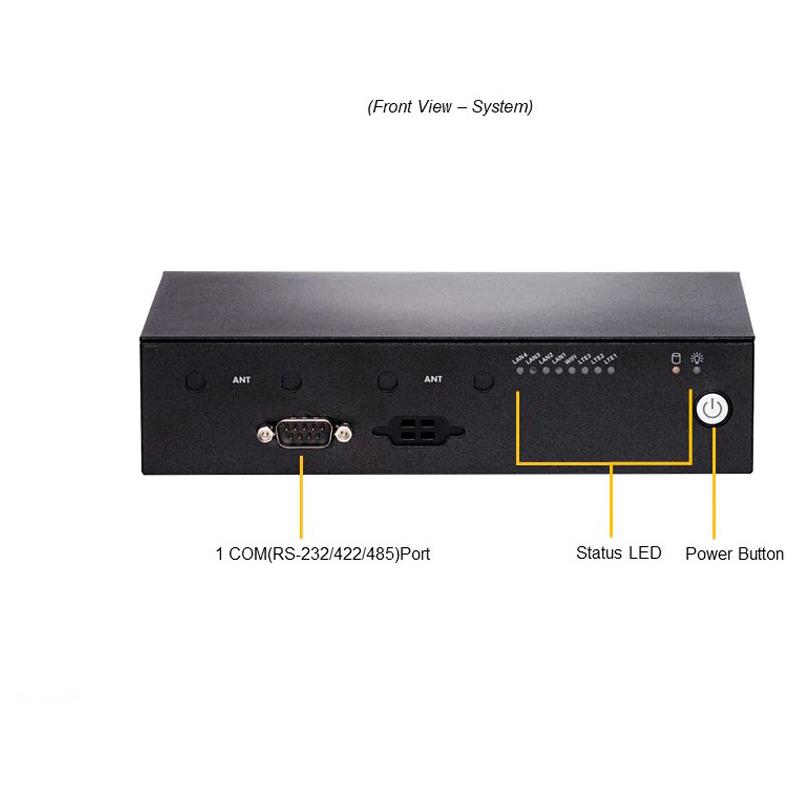

| Front Panel | ||
| Buttons | UID button | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| LAN1 activity | ||
| System information | ||
| LAN2 activity | ||
| HDD Status | ||
| LAN3 activity | ||
| LAN4 activity | ||
| LTE1 activity | ||
| LTE2 activity | ||
| LTE3 activity | ||
| WIFI activity | ||
| Drive Bays / Storage | ||
| Drive Bays | 1x 2.5" drive bays | |
| M.2 | 1 M.2 SATA3 | |
| System Cooling | ||
| Fans | 1x 40mmcm heavy duty fans with optimal fan speed control | |
| Power Supply | ||
| Dimension (W x H x L) | 110 x 31.5 x 62 mm | |
| AC Input | 60W: 100-240Vac / 5A Max / 47-63Hz | |
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-E102-9AP-LN4-C | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-A2SAN-LN4-C | 1 | Super A2SAN-LN4-C Motherboard | |
| Motherboard / Chassis | CSE-E102TF | 1 | Fan-based Embedded Chassis | |
| Cable | CBL-OTHR-1061-15 | 1 | D-SUB 9/M to PH2.0 2X5P,15CM,28AWG,RoHS | |
| Cable | CBL-PWCD-0260-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH | |
| Cable | CBL-PWEX-0982 | 1 | PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG | |
| Cable | CBL-SAST-0881 | 1 | 7pin SATA (STR to RA),25cm,Flat,PBF | |
| Power Supply | MCP-250-10134-0N | 1 | 60W Lockable Power Adapter w/o power cord - EN62368 | |
| Manual | MNL-2473-QRG | 1 | E102-9AP-LN4-E/-C Quick Reference Guide |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
