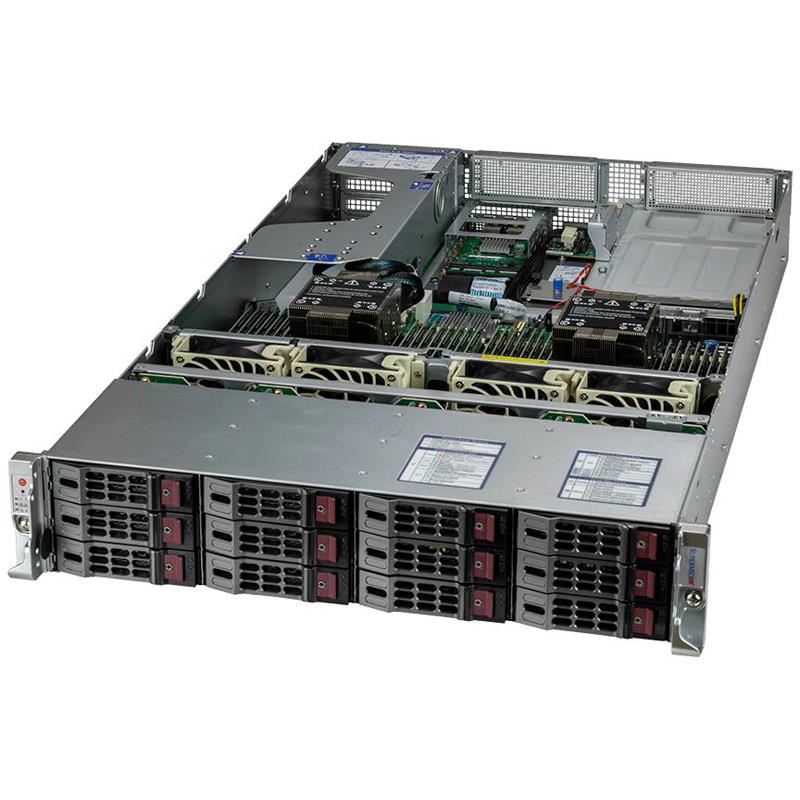

Supermicro SYS-620H-TN12R Hyper 2U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
• Virtualization
• Software-defined Storage
• AI Inference and Machine Learning
• Cloud Computing
• Enterprise Server
Barebone 2U Rackmount SuperServer, Supports Dual Socket P+ (LGA-4189), Supporting Intel Xeon Scalable Processors 3rd Generation. Up to 8TB in 32DIMM slots, R/LRDIMM, Support Intel Optane persistent memory 200 series, Chipset: Intel C621A, SATA3 RAID 0/1/05/10, 12x 3.5in NVMe/SATA/SAS drive bays, 2x M.2 NVMe OR 2x M.2 SATA3, Network Connectivity optional, 1x Dedicated IPMI LAN port, 4 USB 3.2 Gen1 port(s) (4 via header), 1 VGA D-Sub Connector port, 1 COM Port(s) (1 header), 1 TPM Header, 1200W Power Supply, (CSE-HS829-R1K24P + X12DHM-6)
1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
2. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
3. Optional PCIe slot configurations up to 8 PCIe 4.0 x8 or 4 PCIe 4.0 x16 slots with support for double-width GPU/Accelerator cards
4. Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
5. 4 heavy duty hot-swap fans with optimal fan speed control
Extra Specifications for Supermicro SYS-620H-TN12R Hyper 2U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
Motherboard | ||
Motherboard | Super X12DHM-6 | |
Processor | ||
CPU | 3rd Gen Intel® Xeon® Scalable processors | |
Support CPU TDP 270W | ||
Dual Socket P+ (LGA-4189) | ||
Cores | Up to 40C/80T; Up to 60MB Cache | |
System Memory | ||
Memory | Intel® Optane™ persistent memory 200 series | |
Memory Capacity: 32 DIMM slots | ||
Memory Type: 3200MHz ECC DDR4 | ||
Up to 8TB: 32x 256 GB DRAM | ||
Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM | ||
Memory Voltage | 1.2 V | |
Error Detection | ECC | |
On-Board Devices | ||
Chipset | Intel® C621A | |
Network Connectivity | 2x 1GbE BaseT with Intel® i350-AM2 (optional) | |
2x 10GbE SFP+ with Intel® X710-BM2 (optional) | ||
4x 10GbE SFP+ with Intel® XL710-BM1 (optional) | ||
4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional) | ||
2x 25GbE SFP28 with Broadcom® BCM57414 (optional) | ||
4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional) | ||
2x 100GbE QSFP28 with Broadcom® BCM57508 (optional) | ||
2x 10GbE BaseT with Intel® X550-AT2 (optional) | ||
4x 1GbE BaseT or 4x 1GbE SFP with Intel® i350-AM4 (optional) | ||
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
NVMe | NVMe; RAID 0/1/5/10 support (Intel® VROC RAID Key required) | |
Chassis | ||
Form Factor | 2U Rackmount | |
Model | CSE-HS829-R1K24P | |
Dimensions and Weight | ||
Height | 3.5" (88.9mm) | |
Width | 17.2" (437mm) | |
Depth | 31.6" (803mm) | |
Package | 10.4" (H) x 23.8" (W) x 43.6" (D) | |
Weight | Net Weight: 37 lbs (16.8 kg) | |
Gross Weight: 63 lbs (28.6 kg) | ||
Available Color | N/A | |
Front Panel | ||
Buttons | UID button | |
Power On/Off | ||
LEDs | HDD activity | |
LAN1 activity | ||
System information | ||
Power | ||
Expansion Slots | ||
Note | If Slot 1 is configured as PCIe x16, Slot 2 will be disabled; If Slot 3 is configured as PCIe x16, Slot 4 will be disabled; If Slot 5 is configured as PCIe x16, Slot 6 will be disabled; If Slot 7 is configured as PCIe x16, Slot 8 will be disabled. | |
PCI-Express (PCIe) | 3 (Optional) PCIe 4.0 x16 or x8 FH, 10.5"L slot(s) | |
1 (Optional) PCIe 4.0 x8 FH, 10.5"L slot(s) | ||
4 PCIe 4.0 x8 FH, 10.5"L slot(s) | ||
Drive Bays / Storage | ||
Hot-swap | 12x 3.5" hot-swap NVMe/SATA/SAS drive bays (NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.) | |
M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 | |
System Cooling | ||
Fans | 4x 8cm heavy duty fans with optimal fan speed control | |
Air Shroud | 2 Air Shroud(s) | |
Power Supply | ||
Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
AC Input | 800W: 100-127Vac / 9.8A-7A / 50-60Hz | |
1200W: 200-240Vac / 7.5A-6A / 50-60Hz | ||
+12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
Max: 100A / Min: 0A (200Vac-240Vac) | ||
12V SB | Max: 2.1A / Min: 0A | |
Output Type | 25 Pairs Gold Finger Connector | |
Certification | Titanium Level | |
Operating Environment | ||
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Product SKUs | ||
Product SKUs | SYS-620H-TN12R |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
2nd AIOM/OCP NIC 3.0 Slot | Refer to User's Manual | 0 | AIOM slot A2 kit | |||
Cable Management Arm + Rail Set | MCP-290-00168-0N + MCP-290-11901-0N | 0 | 7.5" cable management arm + 41" long ball-bearing rail set | |||
Drive Bay Configuration Options | Refer to User's Manual | 0 | Drive bay configuration options for NVMe, SAS, or SATA support | |||
Global Services & Support | OS4HR3/2/1 | 0 | Gold Level, 3/2/1-year onsite 24x7x4 SLA | |||
Global Services & Support | OSNBD3/2/1 | 0 | Silver Level, 3/2/1-year onsite NBD SLA | |||
Global Services & Support | SMSAD3/2/1 | 0 | Bronze Level, 3/2/1-year 3BD SLA | |||
Intel® VROC RAID Key Options | AOC-VROCINTMOD | 1 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
Intel® VROC RAID Key Options | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard, RAID 0, 1, 10 | ||
Intel® VROC RAID Key Options | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
PCIe Slot Configuration Options | Refer to User's Manual | 0 | PCIe slot configuration options to enable PCIe slots 1-8 | |||
Power Supply | MCP-250-00025-0N | 0 | Single Power Supply Dummy Cover (W73.5mm) for 1U/2U Hyper Chassis | |||
Power Supply | PWS-2K63A-1R | $ 620.50 | 0 | 1U 2600W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C20 inlet | ||
Power Supply | PWS-1K63A-1R | $ 438.50 | 0 | 1U 1000W/1600W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inlet | ||
Power Supply | PWS-1K24A-1R (included in the system) | 0 | 1U 800W/1200W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inlet | |||
Rail Set | MCP-290-11903-0N | $ 116.00 | 1 | 30.5" ball-bearing rail set for Hyper servers | ||
Rail Set | MCP-290-11902-0N (included in the system ) | 1 | 35.25" ball-bearing rail set for Hyper servers | |||
Rail Set | MCP-290-11901-0N | $ 115.00 | 1 | 41" ball-bearing rail set for Hyper servers | ||
Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
Trusted Platform Module Options | AOM-TPM-9671V-O | 1 | SPI capable vertical TPM 1.2 | |||
Trusted Platform Module Options | AOM-TPM-9670V-O | 1 | SPI capable vertical TPM 2.0 | |||
Trusted Platform Module Options | AOM-TPM-9670V-S-FIPS-O | 1 | AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS |
