- Supermicro SYS-220H-TN24R Hyper 2U Barebone Dual Intel Xeon Scalable Processors 3rd Generation

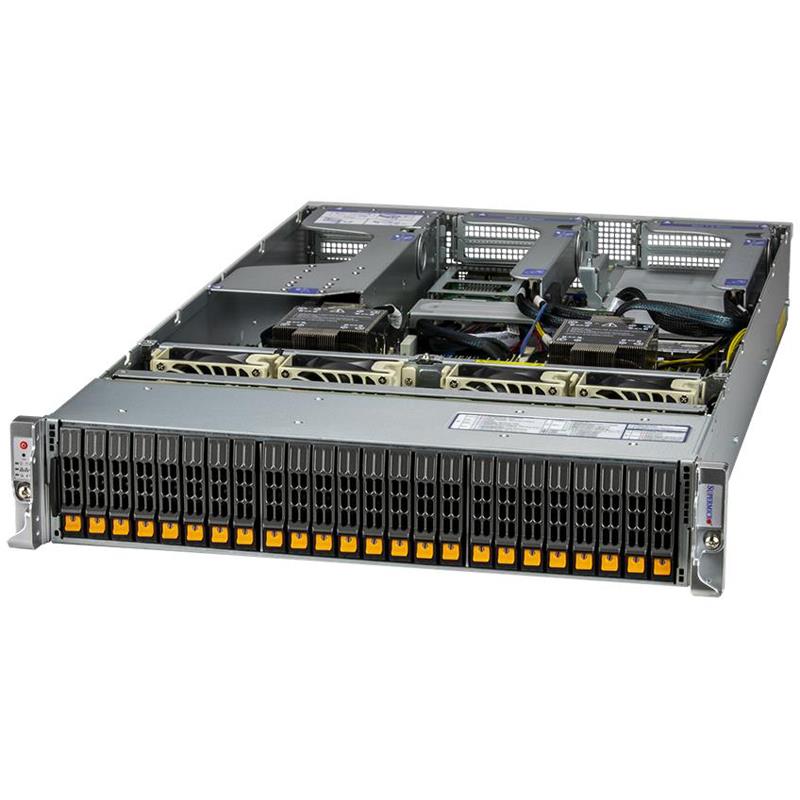

Supermicro SYS-220H-TN24R Hyper 2U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
• Virtualization
• Software-defined Storage
• AI Inference and Machine Learning
• Cloud Computing
• Enterprise Server
Barebone 2U Rackmount SuperServer, Supports Dual Socket P+ (LGA-4189), Supporting Intel Xeon Scalable Processors 3rd Generation. Up to 8TB in 32DIMM slots, R/LRDIMM, Support Intel Optane persistent memory 200 series, Chipset: Intel C621A, SATA3 RAID 0/1/05/10, NVMe, RAID 0/1/5/10 support, 24x 2.5in NVMe/SATA/SAS drive bays, 2x internal M.2 NVMe/SATA drive slots, Network Connectivity optional, 1x Dedicated BMC LAN port, 2x USB 3.0 ports (2 rear), 1x VGA port, 1600W Power Supply, (CSE-HS219-R1K63P + X12DHM-6)
1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
2. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
3. Optional PCIe slot configurations up to 8 PCIe 4.0 x8 or 4 PCIe 4.0 x16 slots with support for double-width GPU/Accelerator cards
4. Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
5. 24x 2.5" hot-swap NVMe/SATA/SAS drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card
6. 4 heavy duty hot-swap fans with optimal fan speed control
Extra Specifications for Supermicro SYS-220H-TN24R Hyper 2U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
| Motherboard | ||
| Motherboard | Super X12DHM-6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Support CPU TDP 270W | ||
| Dual Socket P+ (LGA-4189) | ||
| Cores | Up to 40C/80T; Up to 60MB Cache | |
| System Memory | ||
| Memory | Intel® Optane™ persistent memory 200 series | |
| Memory Capacity: 32 DIMM slots | ||
| Memory Type: 3200MHz ECC DDR4 | ||
| Up to 8TB: 32x 256 GB DRAM | ||
| Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
| NVMe | NVMe; RAID 0/1/5/10 support (Intel® VROC RAID Key required) | |
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 1GbE BaseT with Intel® i350-AM2 (optional) | |
| 2x 10GbE SFP+ with Intel® X710-BM2 (optional) | ||
| 4x 10GbE SFP+ with Intel® XL710-BM1 (optional) | ||
| 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional) | ||
| 2x 25GbE SFP28 with Broadcom® BCM57414 (optional) | ||
| 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional) | ||
| 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional) | ||
| 2x 10GbE BaseT with Intel® X550-AT2 (optional) | ||
| 4x 1GbE BaseT or 4x 1GbE SFP with Intel® i350-AM4 (optional) | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 Dedicated BMC LAN port | |
| USB | 2 USB 3.0 port(s) (2 rear) | |
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 256MB SPI Flash | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-HS219-R1K63P | |
| Dimensions and Weight | ||
| Height | 3.5" (88.9mm) | |
| Width | 17.2" (437mm) | |
| Depth | 29.9" (760mm) | |
| Package | 10.4" (H) x 23.8" (W) x 43.6" (D) | |
| Weight | Net Weight: 40 lbs (18.2 kg) | |
| Gross Weight: 66 lbs (30 kg) | ||
| Available Color | N/A | |
| Front Panel | ||
| Buttons | UID button | |
| Power On/Off | ||
| LEDs | HDD activity | |
| LAN1 activity | ||
| System information | ||
| Power | ||
| Expansion Slots | ||
| Note | If PCIe slot 1 is configured as x16, PCIe slot 2 is disabled; If PCIe slot 3 is configured as x16, PCIe slot 4 is disabled; If PCIe slot 5 is configured as x16, PCIe slot 6 is disabled; If PCIe slot 7 is configured as x16, PCIe slot 8 is disabled. | |
| For 24 NVMe configuration, PCIe slots 3,4,5,6,7,8 and AIOM slot A2 cannot be used. | ||
| PCI-Express (PCIe) | 4 (Optional) PCIe 4.0 x16 or x8 FH, 10.5"L slot(s) | |
| 4 (Optional) PCIe 4.0 x8 FH, 10.5"L slot(s) | ||
| Drive Bays / Storage | ||
| Hot-swap | 24x 2.5" hot-swap NVMe/SATA/SAS drive bays (NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.) | |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 | |
| M-Key, 2280/2210 | ||
| System Cooling | ||
| Fans | 4x 8cm heavy duty fans with optimal fan speed control | |
| Air Shroud | 2 Air Shroud(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| AC Input | 1000W: 100-127Vac / 12A-9A / 50-60Hz | |
| 1600W: 200-240Vac / 9A-7.5A / 50-60Hz | ||
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) | |
| Max: 133.3A / Min: 0A (200Vac-240Vac) | ||
| 12V SB | Max: 3.5A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-220H-TN24R | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 2nd AIOM/OCP NIC 3.0 Slot | Refer to User's Manual | 0 | AIOM slot A2 kit | |||
| Cable Management Arm + Rail Set | MCP-290-00168-0N + MCP-290-11901-0N | 0 | 7.5" cable management arm + 41" long ball-bearing rail set | |||
| Drive Bay Configuration Options | Refer to User's Manual | 0 | Drive bay configuration options for NVMe, SAS, or SATA support | |||
| Global Services & Support | OS4HR3/2/1 | 0 | Gold Level, 3/2/1-year onsite 24x7x4 SLA | |||
| Global Services & Support | OSNBD3/2/1 | 0 | Silver Level, 3/2/1-year onsite NBD SLA | |||
| Global Services & Support | SMSAD3/2/1 | 0 | Bronze Level, 3/2/1-year 3BD SLA | |||
| Intel® VROC RAID Key Options | AOC-VROCINTMOD | 1 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| Intel® VROC RAID Key Options | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard, RAID 0, 1, 10 | ||
| Intel® VROC RAID Key Options | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| PCIe Slot Configuration Options | Refer to User's Manual | 0 | PCIe slot configuration options to enable PCIe slots 1-8 | |||
| Power Supply | PWS-1K63A-1R (included in the system) | 0 | 1U 1000W/1600W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inlet | |||
| Power Supply | MCP-250-00025-0N | 0 | Single Power Supply Dummy Cover (W73.5mm) for 1U/2U Hyper Chassis | |||
| Power Supply | PWS-2K63A-1R | $ 620.50 | 0 | 1U 2600W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C20 inlet | ||
| Rail Set | MCP-290-11903-0N (included in the system ) | 1 | 30.5" ball-bearing rail set for Hyper servers | |||
| Rail Set | MCP-290-11902-0N | 1 | 35.25" ball-bearing rail set for Hyper servers | |||
| Rail Set | MCP-290-11901-0N | $ 115.00 | 1 | 41" ball-bearing rail set for Hyper servers | ||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Trusted Platform Module Options | AOM-TPM-9671V-O | 1 | SPI capable vertical TPM 1.2 | |||
| Trusted Platform Module Options | AOM-TPM-9670V-O | 1 | SPI capable vertical TPM 2.0 | |||
| Trusted Platform Module Options | AOM-TPM-9670V-S-FIPS-O | 1 | AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS |
