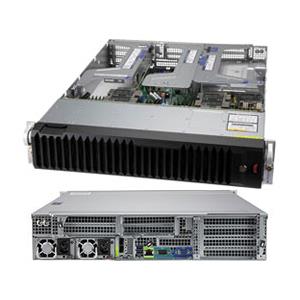

Supermicro SYS-2029U-MTNRV Ultra 2U Barebone Dual Intel Xeon Scalable Processors 2nd Generation
• 5G Core and Edge
• Telecom Micro Data Center
• AI Inference and Machine Learning
• Network Function Virtualization
• Cloud Computing
Barebone 2U Short Depth Rackmount SuperServer, Supports Dual Socket P (LGA 3647), Supporting Intel Xeon Scalable Processors 2nd Generation, Intel Xeon Scalable Processors. Up to 6TB in 24DIMM slots, R/LRDIMM, Supports Intel Optane DCPMM, Chipset: Intel C621A, SATA3 RAID 0/1/05/10, 6x 2.5in NVMe/SAS/SATA Hybrid drive bays. Default support 6x SATA, M.2 optional, Flexible LAN options, 2 USB 3.0 ports (rear), 1 VGA Connector, 2 SuperDOM ports, 1600W Power Supply, (CSE-219ULTS-R1K62P + Super X11DPU-V)
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 1 NIC adapter*). *NIC adapter requirement includes 1 Ultra Riser card.
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. Up to 8 PCI-E Add-on Cards
4. Flexible LAN options
5. 6 NVMe/SAS/SATA Hybrid Hot-swap drive bays
6. 6 Heavy duty 6cm PWM fans
7. Redundant Power Supplies Default: 1600W (Titanium Level) Optional: 1300W DC Power Supplies
8. NEBS Level 3 Certified SKUs: SYS-2029U-MTNRV-NEBS SYS-2029U-MTNRV-NEBS-DC
Extra Specifications for Supermicro SYS-2029U-MTNRV Ultra 2U Barebone Dual Intel Xeon Scalable Processors 2nd Generation
| Motherboard | ||
| Motherboard | Super X11DPU-V | |
| System Memory | ||
| Memory Capacity | 24 DIMM slots | |
| Up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Supports Intel® Optane™ DCPMM †† | ||
| Memory Type | 2666 ECC DDR4 NVDIMM | |
| 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | ||
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Network Connectivity | Flexible Networking options | |
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA | 6 SATA3 (6Gbps) ports | |
| LAN | Flexible LAN options | |
| USB | 2 USB 3.0 ports (rear) | |
| Video | 1 VGA Connector | |
| Serial Header | 1 Serial header | |
| DOM | 2 Super DOM (Disk on Module) ports | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | NMI | |
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Power Configurations | ACPI Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Short Depth Rackmount | |
| Model | CSE-219ULTS-R1K62P | |
| Dimensions and Weight | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 22.6" (574mm) | |
| Weight | Net Weight: 35 lbs (16 kg) | |
| Gross Weight: 56.5 lbs (25.6 kg) | ||
| Available Colors | Silver | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| System information (overheat/UID) LED | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x16 | |
| 1 PCI-E 3.0 x8 (internal LP) | ||
| 1 PCI-E 3.0 x8 (LP) + 2 M.2 | ||
| 1 PCI-E 3.0 x8 (in x16) | ||
| 4 PCI-E 3.0 x8 (FH, 10.5" L) | ||
| Drive Bays / Storage | ||
| Hot-swap | 6 Hot-swap 2.5" NVMe/SAS/SATA Hybrid drive bays. Default support 6 SATA. Note: SAS3 or NVMe support requires additional optional parts | |
| M.2 | 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2 | |
| 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts | ||
| System Cooling | ||
| Fans | 6 Heavy duty fans with optimal fan speed control | |
| Air Shroud | 1 Set of Air Shroud | |
| Power Supply (Optional 1300W DC Power Supplies) | ||
| Power Supply (Optional 1300W DC Power Supplies) | 1600W Redundant Power Supplies with PMBus | |
| Total Output Power | 1600W/1000W | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 13 - 9A / 50-60Hz | |
| 200-240Vac / 10 - 8A / 50-60Hz | ||
| +12V | Max: 83.3A / Min: 0A (100-127Vac) | |
| Max: 133A / Min: 0A (200-240Vac) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| Support CPU TDP 70-205W | ||
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| Product SKUs | ||
| Product SKUs | SuperServer 2029U-MTNRV (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPU-V | 1 | Super X11DPU-V Motherboard | |
| Motherboard / Chassis | CSE-219ULTS-R1K62P | 1 | 2U Chassis | |
| Backplane | BPN-NVME4-HE211N-S6 | 1 | 1U 6-Slot BPN Supports 6 x SAS3/SATA3/NVMe4 Storage Device,HF,RoHS | |
| Cable 1 | CBL-PWEX-1095-55 | 1 | [NR] 2x4,PH3.0 to 2x4,RA,PH4.2,9.5A/pin,30CM,16AWG,RoHS | |
| Cable 2 | CBL-SAST-1247LP-100 | 2 | [NR] SlimlineLP x4 (STR) to MiniSAS HD x4 (RE),47CM,100 OHM | |
| Riser Card | RSC-R2UW-4E8 | 1 | 2U LHS WIO Riser card with four PCI-E x8 slots | |
| Riser Card | RSC-UMR-8 | 1 | 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE | |
| Heatsink / Retention | SNK-P0069PS | 2 | 1.5U Proprietary 50-mm Tall Front Passive CPU Heat Sink for X11 Purley Platform 2U Node Twin Series Servers | |
| * Power Supply | PWS-1K62A-1R | 2 | AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH | |
| * Fan | FAN-0214L4 | 6 | 60x60x56 mm, Counter-rotating Cooling Fan for 2U Ultra Short Depth Series Servers | |
| * Front Panel | FPB-TB826-T | 1 | Chassis transfer board for SC826 | |
| * Drive Tray(s) | MCP-220-00187-0B | 6 | 2.5" thin profile drive tray, standard color tab, for SC119UH | |
| * Rail Set | MCP-290-00058-0N | 1 | Short rail set, quick release, 19.6"; ~26.9"; Extendable Length | |
| * Rail Set | MCP-290-00114-0N | 1 | Outer rail, short, quick-release | |
| * Rail Set | MCP-290-00116-0N | 1 | Inner rail, short, quick-release type |
Note:
• Parts with * come with the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Ultra Riser Card | AOC-2UR68-I2XS & MCP-240-82910-0N | 1 | 2-port 10GbE SFP+, Intel 82599ES | |||
| Ultra Riser Card | AOC-2UR68-I2XT & MCP-240-82909-0N | 0 | 2-port 10GbE RJ45, Intel X540 | |||
| Ultra Riser Card | AOC-2UR68-M2TS-O & MCP-240-82914-0N | 0 | 2-port 25GbE SFP28, Mellanox CX-4 Lx EN | |||
| Add-on card for M.2 | AOC-SLG3-2M2 | $ 54.00 | 1 | Low Profile PCIe x8 add-on card supports 2 PCI-E 3.0 x4 M.2 NVMe Modules | ||
| Internal M.2 SATA Cable | CBL-SAST-0538 | $ 17.00 | 1 | SATA cable for M.2 installation on internal riser | ||
| NVMe Support Kit | CBL-SAST-1270LP-85 & CBL-SAST-1225LP-85 & CBL-SAST-1255LP-85 & AOC-SLG3-2E4R-P | 1 | 6 NVMe Support Cables and Redriver | |||
| Drive Trays | MCP-220-00178-0B | $ 24.50 | 1~6 | Tool-less black hot-swap 2.5" drive tray (orange tab) | ||
| Storage Control Card and Cable(s) | AOC-S3008L-L8e &2x CBL-SAST-1250LP-100 | 1 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; MINI SAS HD SATA,12G,INT,60CM,60CM SB,30AWG | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8i &2x CBL-SAST-1250LP-100 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; MINI SAS HD,12G,INT,60CM,30AWG | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR &2x CBL-SAST-1250LP-100 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR-16DD & 2x CBL-SAST-1250LP-100 | 0 | SStd LP, 8 internal ports, 12Gb/s per port- Gen3, 16H | |||
| 2 Rear 2.5" Hot-swap SATA Drive Bays (Complete System Only) | MCP-240-82922-0N-OEM | $ 147.00 | 0 | Rear 2x 2.5" HDDs riser bracket kit for SC829U/219U, tool-less | ||
| Compatible Networking Cables and Transceivers for System default Networking (AOC-2UR68-m2TS) | - | 1-2 | Networking Cables and Transceivers Compatibility Matrix | |||
| Network Card(s) | AOC-SGP-i2/4 | 0 | Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350 | |||
| Network Card(s) | AOC-STGN-i1S/i2S | 0 | Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN | |||
| Network Card(s) | AOC-STGF-i2S | 0 | Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2 | |||
| Network Card(s) | AOC-STG-i4S | 0 | Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710 | |||
| Network Card(s) | AOC-STG-b4S | 0 | Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S | |||
| Network Card(s) | AOC-STG-i2T | 0 | Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540 | |||
| Network Card(s) | AOC-STGS-i1/2T | 0 | Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550 | |||
| Network Card(s) | AOC-STG-i4T | 0 | Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710 | |||
| Network Card(s) | AOC-STG-i2 | 0 | Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB | |||
| Network Card(s) | AOC-S25G-m2S | 0 | Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN | |||
| Network Card(s) | AOC-S40G-i2Q | 0 | Standard LP 2-port 40GbE controller, Intel Fortville XL710 | |||
| Network Card(s) | More | 0 | AOC Compatibility Matrix | |||
| CacheVault(s) | BTR-CV3108-U1 | $ 330.50 | 0 | CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra | ||
| TPM security module | AOM-TPM-9670H-SAOM-TPM-9671H-S | 11 | TCG 2.0 compliant trusted platform module (TPM), Horizontal FFTCG 1.2 compliant trusted platform module (TPM), Horizontal FF | |||
| Intel VROC RAID Key | AOC-VROCINTMOD | 1 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| Intel VROC RAID Key | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard, RAID 0, 1, 10 | ||
| Intel VROC RAID Key | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
