| Main Specifications |

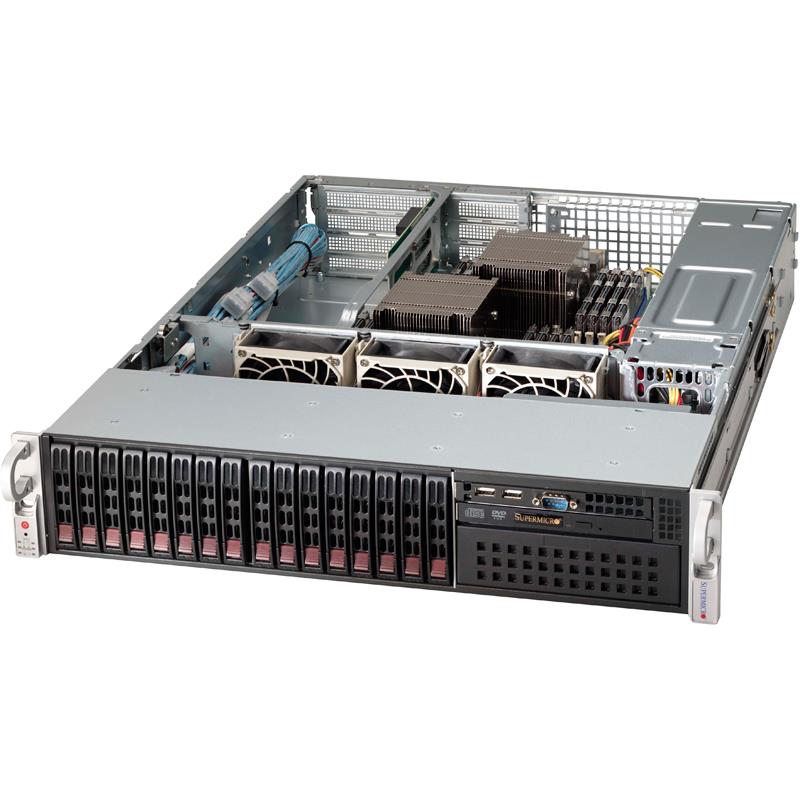

| Device Type | SuperChassis |
| Form Factor | 2U chassis |
| Supported Motherboards | SMC Proprietary WIO, 13.68" x 13" motherboards |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 24.8" (630 mm) |
| Weight | 60 lbs (27.22 kg) |
| Enclosure Color | Black |
| Processor |
| Compatible Processors | Dual and Single Intel and AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 3x Low-profile expansion slot, 4x Full-height, Full-length expansion slot |
| Expansion Bays Total (Free) | 1x 5.25" drive bay |
| 16x 2.5" hot-swap SAS3/SATA drive bay |
| Optional 2x 2.5" hot-swap SAS/SATA drive bay |
| Peripheral Bay (Free) | Optional 1x slim DVD-ROM drive bay |
| Optional 1x COM port tray |
| Optional 2x USB 2.0 ports |
| Backplane |
| SAS/SATA HDD Backplane | 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | Power status LED, HDD activity LED, System Information LED, Power Fail LED, 2 Network Activity LEDs |
| System Cooling |
| Fans | 3x 8cm high-performance PWM fan(s) |
| System Monitoring |
| System Monitoring | Chassis intrusion switch |
| Environmental |
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Power Supply |
| Power Supply | 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm |
| Certification | 80PLUS Titanium Certified |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL |
| Parts List - (Items Included) |
| Air Shroud | 1x MCP-310-29001-0N |
| Backplane | 1x BPN-SAS3-213A-N8 |
| Cable(s) | 1x CBL-0071L, 1x CBL-0217L, 2x CBL-PWCD-0160-IS, 3x CBL-PWEX-1069 |
| Parts | 3x MCP-120-00115-0N, 4x MCP-120-00116-0N, 1x MCP-290-00088-0N, 1x MCP-290-82605-0V, 1x MCP-230-82603-0N, 1x MCP-240-00103-0N |
| Fan(s) | 3x FAN-0206L4 |
| Front Panel | 1x FPB-FP826-D, 1x TB826 |
| Drive Trays | 1x MCP-220-00009-01, 1x MCP-220-00023-01, 16x MCP-220-00047-0B |
| Mounting Rails | 1x MCP-290-00053-0N, 1x MCP-290-00060-0N |
| Rear Window | 1x MCP-240-82609-0N |
| Power Distributor(s) | 1x PDB-PT216-2824 |
| Power Supply Number | 2x PWS-1K23A-1R |
