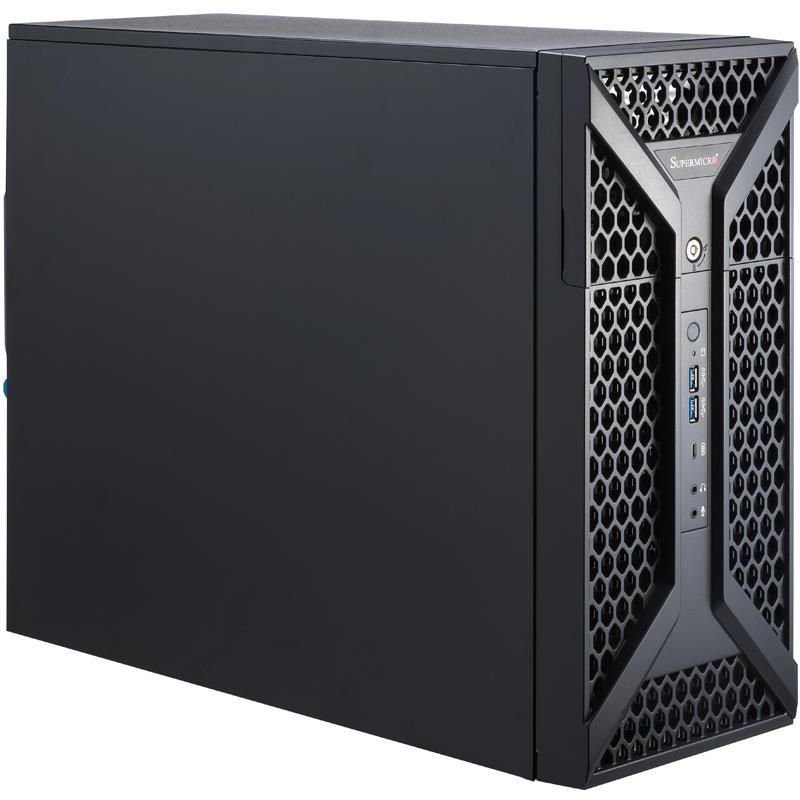

Supermicro CSE-735D4-668B Mid-tower chassis 668W Power Supply

Includes four fixed drive bays in a 90º rotatable drive cage
668W Platinum Level Certified High-Efficiency Power Supply
Chassis accepts E-ATX, ATX, microATX form factor motherboards
Front I/O Ports: 2x USB 3.0 1xType C Line out jack & Microphone jack

Mid-Tower Chassis 668W Platinum Power Supply, Optimized for motherboards size: 12" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX, support single and dual Intel / AMD processors, Includes: 4x 3.5in fixed drive bay, 2x standard 5.25in drive bay, 1x 3.5in internal fixed drive bay, 7x Full-height, Full-length expansion slots, (CSE-735D4-668B)

1. 90&deg Rotatable HDD Cage
2. Whisper-Quiet (<21dB)
3. Kensington Lock Security
4. Front I/O Ports: 2x USB 3.0 1xType C Line out jack & Microphone jack
5. 1x Optional Front 12cm (1850 RPM) PWM Fan
6. Mid-Tower Chassis Supports Micro-ATX Motherboard, Sizes – E-ATX/ATX/Micro ATX
7. 668W Platinum Level Certified High-Efficiency Power Supply
8. 1x Rear 12cm (1850 RPM) PWM Fan
9. 2x 5.25" External HDD Drive Bays & 4x 3.5" Internal HDD Drive Bays
10. Security door for M14&M28 Mobile Racks

Extra Specifications for Supermicro CSE-735D4-668B Mid-tower chassis 668W Power Supply

Processor Support
Processor Support	Dual and Single Intel® and AMD processors
Power Supply
Certification	Platinum Certified
Power Efficiency	92%
Total Output Power and Input	668W with Input 100 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	185 x 150 x 86 mm
Output Type	24pin ATX
-12V	Max: 0.1A / Min: 0A
+12V	Max: 54A / Min: 0.2A (100Vac - 240Vac)
+5V	Max: 20A / Min: 0.1A
+3.3V	Max: 15A / Min: 0.1A
+5Vsb	Max: 2A / Min: 0A
Product SKUs
Product SKUs	CSE-735D4-668B
Form Factor
Form Factor	Mid-tower chassis support for max. motherboard size - 12" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX
Dimensions
Height	16.7" (424 mm)
Width	7.6" (193 mm)
Depth	21.1" (536 mm)
Gross Weight	30 lbs (13.61 kg)
Net Weight	28 lbs (12.7 kg)
Packaging (W x H x L)	21.38" (543 mm) x 11.97" (304 mm) x 25.28" (642 mm)
Available Color	Black
Expansion Slots
Expansion Slots	7x Full-height, Full-length expansion slot(s)
Drive Bays
Drive Bays	Optional 4x 2.5" fixed drive bay
	4x 3.5" fixed drive bay
Peripheral Drives
Peripheral Drives	2x standard 5.25" drive bay
	1x 3.5" internal fixed drive bay
Front Panel
Button	Power On/Off button
LED	HDD activity LED
	Power LED
Port	2x USB 3.0 Port(s)
	2x Audio Jack(s)
	1x USB 3.2 Gen 2 Type C
Systems Cooling
Fans	Optional 1x 12cm (front) cooling fan
	1x 12cm rear exhaust fan(s)
Operating Environment (System)
Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
Regulatory (Power Supply)
Power Supply Safety / EMC	CCC
	BSMI
	CE/EMC
	TUV/CB
	UL/CUL
	FCC class B

Warranty:	3 years
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
