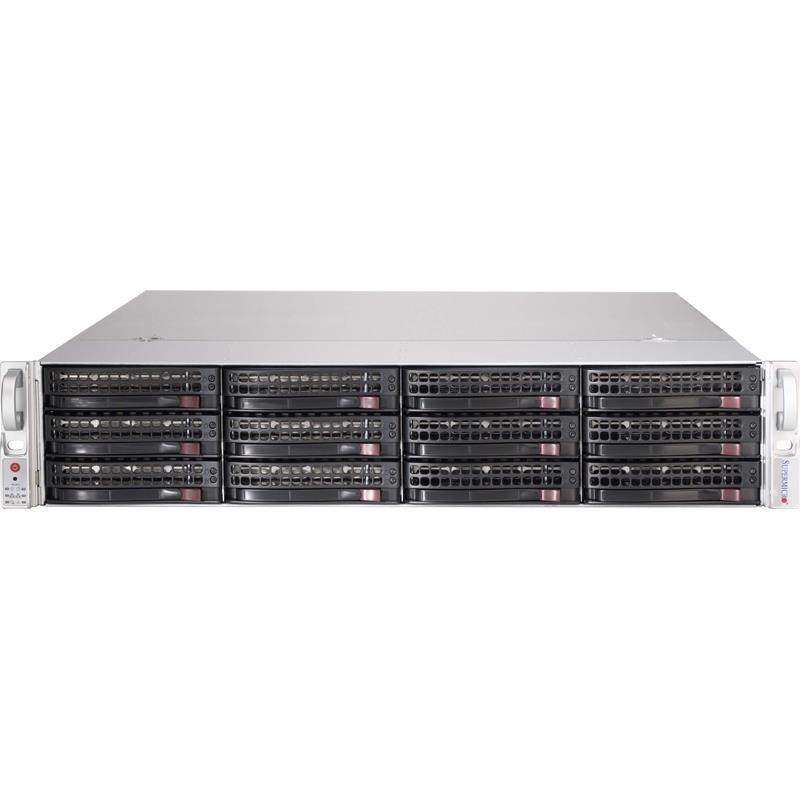

Supermicro CSE-826BE2C-R609JBOD 2U JBOD storage chassis 600W/650W Power Supply
Offers twelve hot-swap 3.5" SAS/SATA hard drive bays
Equipped with 650W redundant, efficient power supply
Rackmount rails allow you to mount the chassis in a rack
IPMI port for Remote System Power on/off and system monitoring
2U JBOD storage chassis 600W/650W Redundant Power Supply, Includes: 12x 3.5in hot-swap drive bay, Qualified SAS Controllers: AOC-SAS3-9300-8E (HBA) and AOC-SAS3-9380-8E (RAID) - 12Gb/s 2-external ports SAS3 RAID (not included) - (CSE-826BE2C-R609JBOD)
Key Features
Cloud Backup, Data Replication, or High-Density Archive Storage Applications
2U Storage JBOD Chassis with capacity 12 x 3.5" hot-swappable HDDs bays
Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
1x IPMI port for Remote System Power on/off and system monitoring
Support NTP for time synchronization & RTC battery backup
600W (1+1) 94% efficient Platinum level power supplies
3 x 80mm high efficient hot-swappable fans for best system cooling
Ideal for Cloud backup, data Replication or High-density Archive Storage Applications
Qualified SAS HBA / controller:
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA, AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
Extra Specifications for Supermicro CSE-826BE2C-R609JBOD 2U JBOD storage chassis 600W/650W Power Supply
| Main Specifications | ||
| Device Type | Storage Enclosure | |
| Form Factor | 2U JBOD storage chassis | |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 25.5" (647 mm) | |
| Weight | Gross Weight 60 lbs (27.22 kg) - Net Weight 29 lbs (13.15 kg) | |
| Enclosure Color | Black | |
| Expansion / Connectivity | ||
| Expansion Bays Total (Free) | 12x 3.5" hot-swap HDD bay | |
| On-Board Devices | ||
| Qualified SAS Controllers | AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter (not included) | |
| AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller (not included) | ||
| SAS/SATA Backplane | ||
| SAS/SATA Backplane | 12-Port 2U SAS3 12Gbps dual-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset Button, Unit Identification (UID) button | |
| LEDs | 1 Network Activity LEDs | |
| System Cooling | ||
| Fans/Air Shroud | 3x 80x38mm hot-swap cooling fans | |
| System Monitoring | ||
| System Monitoring | IPMI | |
| Power Supply | ||
| Power Supply | 600W / 650W 1U Redundant Power Supply | |
| Certification | 80 Plus Platinum Certified | |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC | |
| Environmental | ||
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) | ||
| Operating Relative Humidity Range: 8% - 90% (non-condensing) | ||
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) | ||
| Parts List - (Items Included) | ||
| Air Shroud | 1x MCP-310-29001-0N | |
| Hard Drive Backplane | 1x BPN-SAS3-826EL2 | |
| Cable(s) | 2x CBL-0160L, 1x CBL-CDAT-0601, 1x CBL-NTWK-0587, 4x CBL-SAST-0532, 4x CBL-SAST-0593 | |
| Parts | 1x MCP-120-84702-0N, 1x MCP-120-84705-0N, 1x CSE-PTJBOD-CB3, 1x MCP-230-82602-0N, 1x MCP-290-82605-0V, 1x MCP-290-82606-0N, 7x MCP-120-00062-0N, 1x MCP-260-00011-0N | |
| Fan(s) | 3x FAN-0126L4 | |
| Drive Trays | 12x MCP-220-00075-0B | |
| Mounting Rails | 1x MCP-290-00053-0N, 1x MCP-290-00060-0N | |
| Rear Window | 1x MCP-240-82608-0N | |
| Power Supply Number | 2x PWS-609P-1R2 | |
| Power Distributor(s) | 1x PDB-PT826-8824 | |
