| System Memory |
| Memory Capacity | 4 DIMM slots |
| 128GB Unbuffered ECC UDIMM, DDR4-2666MHz |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| Memory Type | N/A |
| On-Board Devices |
| Chipset | Intel® C246 |
| IPMI | IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| HDD Fail detection via IPMI |
| Graphics | 1 ASPEED AST2500 BMC port(s) |
| Via KVM Connector |
| Network Controllers | Single LAN with Realtek RTL8211E PHY (dedicated IPMI), via Backplane |
| SATA | Intel® C246 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Input / Output |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| Video Output | 1 VGA port(s) |
| USB | 2 USB 2.0 port(s) (2 rear) |
| USB 2.0 via KVM Connector |
| Serial Port | 1 fast UART 16550 Serial |
| 1 COM Port(s) (1 rear), Via KVM Connector |
| DOM | 1 Super DOM (Disk on Module) port with build power |
| TPM | 1 TPM Header |
| Others | 1 KVM Connector for VGA |
| 1 USB 0 and COM Ports |
| System BIOS |
| BIOS Type | 256MB UEFI |
| BIOS Features | USB Keyboard support |
| Plug and Play (PnP) |
| SMBIOS 2.8 |
| UEFI 2.7 |
| ACPI 6.1 |
| SMBIOS 3.1 |
| Management |
| Software | SuperDoctor® 5, NMI, SUM , KVM with dedicated LAN, Intel® Node Manager, IPMI2.0 , Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, SUM |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss |
| PC Health Monitoring |
| Voltage | VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Memory, HT, +5V standby, +5V, +3.3V, +12V, +1.8V, Monitors for CPU Cores, Memory Voltages |
| LED | UID/Remote UID |
| CPU / System Overheat LED |
| Power LED |
| BMC/IPMI Heartbeat LED |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| Thermal Monitor 2 (TM2) support |
| PECI |
| I2C temperature sensing logic |
| Other Features | WOL, UID, System level control, RoHS, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss |
| FAN | Thermal control tachometer fan connectors, System level control, PWM fan speed control, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication |
| Product SKUs |

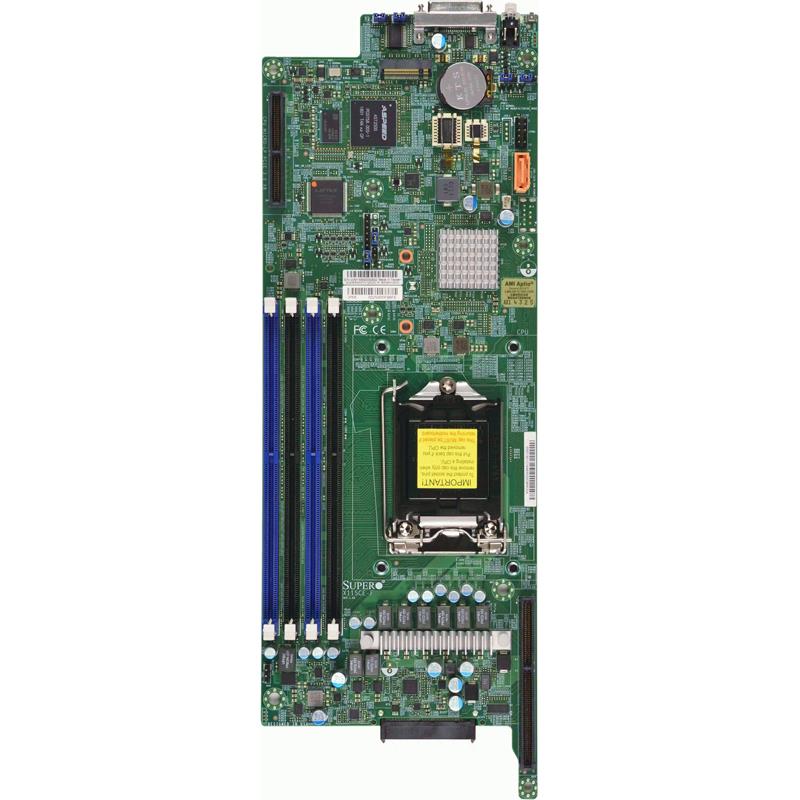

| Product SKUs | MBD-X11SCE-F |
| Physical Stats |
| Form Factor | Proprietary |
| Dimension | 4.6" x 11.7" (11.68cm x 29.72cm) |
| Processor |
| CPU | Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 80W TDP |
| Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Intel® Celeron®, Intel® Pentium®, 8th Generation Intel® Core™ i3 Processor |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x8 (Micro Low Profile) |
| M.2 | Key: M-Key |
| Form Factor: 2242/2280/22110 |
| M.2 Interface: 11 SATA/PCIe 3.0 x4 |
| Operating Environment |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
