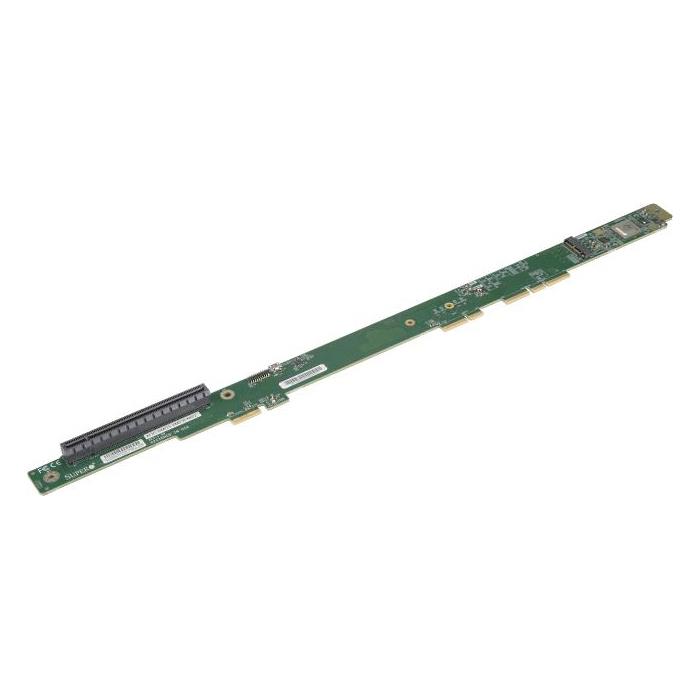

Supermicro 2-Port M.2 NVMe Add-on Card RAID1 for 1U X12 BigTwin, AOC-SMG3-2M2-B
Dual M.2 NVMe RAID Controller card for X12 BigTwin, RoHS
Marvell 88NR2241 NVMe RAID Controller M.2 Carrier riser card for X12 BigTwin®
Supports x2 M.2 M key connectors for the following length:
Top side: 80mm
Bottom side: 80mm or 110mm with OEM SKU support (Please contact your Supermicro Sales representative for more information)
Each NVMe M.2 SSD links to a full x2 PCI-E Gen3
Supports RAID 0,1
Supports onboard activity and status LEDs for each M.2 SSD
Gen4 x16 PCI-E slot riser card function
OS Support: Windows, Linux, and VMWare
Thermal operating range: System dependent (55°C or higher w/ enough airflow)
Extra Specifications for Supermicro 2-Port M.2 NVMe Add-on Card RAID1 for 1U X12 BigTwin, AOC-SMG3-2M2-B
| Add-on Card | ||
| Add-on Card | Perfectly streamlined for the BigTwin, the Supermicro NVMe M.2 RAID Carrier Riser Card features 2 M-key connectors for 2x M.2 NVMe SSDs. This carrier card integrates a RAID controller to provide mirror RAID protection. With HW RAID1 support, this new M.2 carrier is intended to offer another layer of redundancy for M.2 SSDs, typically used for OS support. This space- saving solution helps maximize the OS reliability and performance. It delivers a OS solution with NVMe SSDs. This product is only available through Supermicro. | |
| Compliance | ||
| RoHS | RoHS Compliant 6/6, Pb Free | |
| Dimensions | ||
| L x W | 18.05" x 1.24" | |
| Validated Platforms | ||
| Servers | {' SYS-220BT-DNC8R SYS-220BT-DNTR SYS-220BT-HNC8R SYS-220BT-HNC9R SYS-220BT-HNTR SYS-620BT-DNC8R SYS-620BT-DNTR SYS-620BT-HNC8R SYS-620BT-HNTR ': ['https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-220BT-DNC8R\n', 'https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-220BT-DNTR\n', 'https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-220BT-HNC8R\n', 'https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-220BT-HNC9R\n', 'https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-220BT-HNTR\n', 'https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-620BT-DNC8R\n', 'https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-620BT-DNTR\n', 'https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-620BT-HNC8R\n', 'https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-620BT-HNTR\n']} | |
| Validated Platforms | ||
| Tested Drives | ||
| Tested M.2 | Intel SSDPEK1A118GA DC P1600XM | |
| HDS-TMN0-KXG60ZNV256G | ||
| Downloads | ||
| Firmware and Management | [ https://www.supermicro.com/wdl/driver/SAS/Marvell/NR2241/AOC-SMG3-2M2-B/ ] | |
| User's Guide | [ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-SMG3-2M2-B.pdf ] | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
