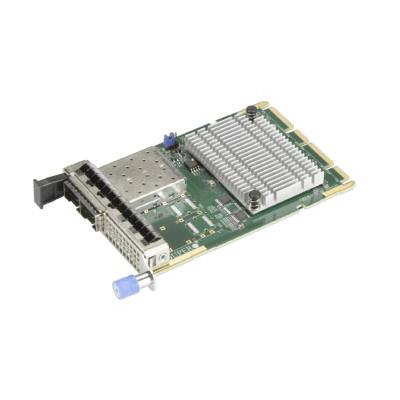

Supermicro AOC-ATG-I2SM X710-BM2 10GbE Ethernet Adapter Card Dual-port With SFP+ Connectors Advanced I/O Module (AIOM) OCP 3.0
Intel X710-BM2 Ethernet Controller
2x 10Gbps ports with SFP+ connectors
Advanced I/O Module (AIOM) Form Factor
Network Virtualization: VXLAN and NVGRE
Network Adapter 2-Port AIOM 10GbE SFP+, X710-BM2 with 0.5U bracket
Advanced I/O Module (AIOM) Form Factor
2x 10Gbps ports with SFP+ connectors
Intel® X710-BM2 Ethernet Controller
Network Virtualization: VXLAN and NVGRE
Intel® Ethernet Flow Director
Data Plane Developer Kit for efficient packet processing (DPDK)
Asset Management Features
NC-SI for Remote Management
Supports both Direct Attach Copper and Fiber Cables
Extra Specifications for Supermicro AOC-ATG-I2SM X710-BM2 10GbE Ethernet Adapter Card Dual-port With SFP+ Connectors Advanced I/O Module (AIOM) OCP 3.0
| Add-on Card | ||
| Add-on Card | The Supermicro® Advanced I/O Module (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The 10GbE adapter AOC-ATG-i2S(M) is a flexible and scalable 10GbE solution providing 2 SFP+ ports. Based on Intel® X710-BM2 network controller with performance-enhancing features and power management technologies, the AOC-ATG-i2S(M) provides a quality networking choice for data centers while reducing CPU utilization and power consumption. With the added NC-SI feature, this adapter also can function as a secure networking port for server remote management. To order, contact your distributor. This product is only available through Supermicro. | |
| Compliance | ||
| RoHS | RoHS Compliant 6/6 | |
| Specifications | ||
| Networking Features: | IEEE 802.3ad, 802.1AX Link Aggregation | |
| IEEE 802.1Q VLAN | ||
| MSI and MSI-X support | ||
| Intel® Flow Director | ||
| Jumbo Frames (up to 9.5KB) | ||
| IEEE 802.3x Flow Control | ||
| Teaming support | ||
| Checksum Offload (IPv4/IPv6, SCTP, TCP, UDP, Tx/Rx) | ||
| Virtualization Features: | Virtual Machine Devices queues (VMDq) | |
| Single-Root I/O Virtualization (SR-IOV) | ||
| VLAN | ||
| VXLAN and NVGRE | ||
| GENEVE | ||
| Management Features: | NC-SI for remote management | |
| Asset Management support with thermal sensor | ||
| iSCSI remote boot | ||
| PXE remote boot | ||
| Power Savings: | ACPI compliant power management | |
| Energy Efficient Ethernet (IEEE 802.3az) | ||
| PCI Express Active State Power Management (ASPM) | ||
| OS Support: | Windows® Server | |
| FreeBSD | ||
| Linux RHEL | ||
| Linux SLES | ||
| Linux Ubuntu | ||
| Linux CentOS | ||
| VMware | ||
| Cable Support: | SFP+ direct attach twin-axial copper cables up to 5m | |
| Fiber-optic cables (with required optional SFP+ transceivers) | ||
| Power Consumption (Max): | AOC-ATG-i2S: 6.2W | |
| Operating Conditions: | Storage humidity: 90% non-condensing relative humidity at 35°C | |
| Storage condition: -40°C to 70°C (-40°F to 158°F) | ||
| Physical Dimensions: | PCB dimensions: 76mm x 115mm (W x D) | |
| Advanced I/O Module (AIOM) Form Factor | ||
| Downloads | ||
| User's Guide | [ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-ATG-i2S_i2SM.pdf ] | |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-ATG-i2S_i2SM.pdf ] | |
| Driver | Choose the latest CDR-NIC folder, and then click on Intel folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
