| Main Specifications |

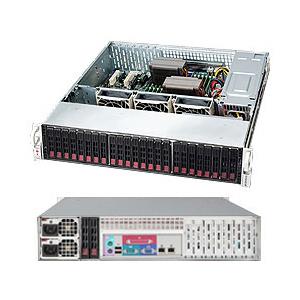

| Device Type | SuperChassis 216BA-R920LPB |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 24.8" (630 mm) |
| Color | Black |
| Form Factor | 2U chassis support for max. motherboard size - 13" x 13.68", E-ATX and ATX |
| Weight | 53 lbs (24kg) |
| Processor Support |
| Processor Support | Supports dual, single Intel / AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 7x low-profile expansion slots |
| Drive Bays |
| Hot-swap | 24x 2.5" SAS / SATA Hot-swap drive trays - SAS or enterprise SATA HDD only recommended |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED, Power Fail LED |
| System Cooling |
| Fans | FAN-0126L4 |
| 3x 80mm 7000 RPM PWM fans |
| Miscellaneous |
| Applications | Chassis Intrusion switch |
| SAS / SATA Backplane |
| SAS / SATA Backplane | 2U Direct Attached Backplane, features: 3Gb/6Gb support, SES-2 Enclosure Management Support, SAS/SATA support, Six SFF 8087 connectors |
| Operating Environment (System) |
| Operating Temperature Range | Operating Temperature Range 5C ~ 35C (41F ~ 95F) |
| Non-Operating Temperature Range -40C ~ 60C (-40F ~ 140F) |
| Operating Relative Humidity Range 8% ~ 90% (non-condensing) |
| Non-Operating Relative Humidity Range 5% - 95% (non-condensing) |
| Power Supply |
| Certification | 80PLUS Platinum Certified |
| Power Supply | 920W high-efficiency (95%+) AC-DC Redundant power supplies with PMBus and I2C |
| PWS-920P-SQ / PDB-PT216-2824 |
| Regulatory Safety / EMC | USA - UL listed, Canada - CUL listed, Germany - TUV Certified, EN 60950/IEC 60950-Compliant, CB Report, CCC Certification |
| Standard Parts List |
| Accessory | ACC216A-00-2B, FP826-D, TB826 |
| Chassis | CSE-216BA-R920LPB |
| Rear Window | MCP-240-82608-0N |
| Parts List - (Items Included) |
| Air Shroud | MCP-310-29001-0N |
| Backplane | BPN-SAS-216A |
| Drive Trays | MCP-220-00047-0B, MCP-290-82607-0N |
| Mounting Rails | MCP-290-00053-0N, MCP-410-00007-0N |
| Parts List |
| Cables | CBL-0071L, CBL-0088, CBL-0182L, CBL-0217L |
