- Supermicro CSE-835BTQ-R1K28B Server Chassis 3U Rackmount

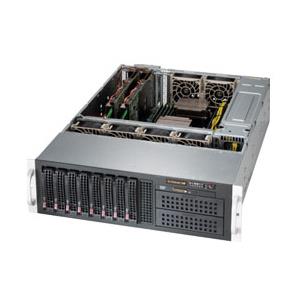

Supermicro CSE-835BTQ-R1K28B Server Chassis 3U Rackmount
3U Chassis supporting E-ATX and ATX motherboards
Compatible with Dual & Single Intel and AMD processors
Expandable Design with 7 full-height, full-length expansion slots
Reliable Power with a 1280W Redundant Platinum Level Power Supply
Rackmount 3U w/ Redundant 1280W 80 Plus Platinum Power Supply (2x PWS-1K28P-SQ), for Motherboard up to 13.68in x 13in maximum size - Includes : 8x 3.5in SAS / SATA Hot-Swap Drive Trays, 7x Full-Height / Full-Length Expansion Slots, Slim DVD-ROM (optional), Rails Kit (MCP-290-00053-0N), Cooling Air Shroud (MCP-310-39001-0N) - SC835BTQ-R1K28B - (Black)
1. 1280W Redundant High-efficiency Platinum Level (95%+) Power Supplies
2. 8x 3.5" Hot-swap SAS / SATA & 2x 5.25" Drive Bays
3. Support Optional Slim DVD, Hot-swap Slim HDD/SSD drive kit, Rear 2.5" x2 Drive Kit and Mobile Racks
4. 7x Full-height, Full-length Expansion Slots
5. Support GPUs & Battery Backup Power (PWS-1K03B)
6. Six Internal Fans (4 middle, 2 rear) with (optional) External Rear Fan Kit
7. Note: Full SES2 Support is only available on SAS motherboards
Extra Specifications for Supermicro CSE-835BTQ-R1K28B Server Chassis 3U Rackmount
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Power LED | |
| Power Fail LED | ||
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| System Overheat LED | ||
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Platinum Certified | |
| Power Supply | 1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus | |
| Power Efficiency | 95% | |
| Total Output Power and Input | 1000W with Input 100 - 140Vac | |
| 1280W with Input 180 - 240Vac | ||
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 336 x 76 x 40 mm | |
| Output Type | Backplanes (gold finger) | |
| -12V | Max: NAA | |
| +12V | Max: 83A / Min: 0.5A (100Vac - 140Vac) | |
| Max: 106.7A / Min: 0.5A (180Vac - 240Vac) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| +12Vsb | Max: NAA | |
| Power Distributor | +5V Max: 45A | |
| +3.3V Max: 24A | ||
| -12V Max: 0.6A | ||
| PDB-PT836-B4824 | ||
| O/P: 12V/135A | ||
| Product SKUs | ||
| Product SKUs | - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply | |
| Form Factor | ||
| Form Factor | 3U chassis support for motherboard size - E-ATX and ATX; up to 13.68" x 13" | |
| Dimensions | ||
| Height | 5.2" (132 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.5" (647 mm) | |
| Gross Weight | 75 lbs (34.02 kg) | |
| Packaging (W x H x L) | 26.6" (676 mm) x 13" (330 mm) x 33.9" (861 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 7 full-height & full-length expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 8 x 3.5" hot-swap SAS/SATA | |
| Backplane | ||
| Backplane | SAS833/835 BACK PANEL WITH AMI MG9072 | |
| Peripheral Drives | ||
| Peripheral Drives | Optional 1 x slim DVD-ROM drive bay | |
| Systems Cooling | ||
| Fans | 4 x 80mm Hot-swap PWM Fans | |
| 2 x 80mm PWM Rear Chassis Fans | ||
| System Monitoring | ||
| System Monitoring | Chassis intrusion switch | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| TUV/CB | ||
| UL/CUL | ||
| FCC class B | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Rail | MCP-290-00058-0N | $ 103.00 | 0 | Ball bearing quick release rail for shor-depth rack (19"~26.6") | ||
| HDD Kit | MCP-220-00118-0B | $ 31.50 | 0 | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH | ||
| HDD Tray | MCP-220-81506-0N | $ 81.50 | 0 | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED | ||
| HDD Kit | MCP-220-83608-0N | $ 115.50 | 0 | 12G Rear 2.5x2 Hot-swap HDD kit w/ Status LED for 836B/835B | ||
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT4 | 0 | BLACK TEAC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH | |||
| Mobile Rack | CSE-M14TQC | $ 186.50 | 0 | Black SAS3/SATA3 Mobile Rack for 4x 2.5 | ||
| Mobile Rack | CSE-M28SAB-OEM | $ 258.00 | 0 | Black SAS/SATA Mobile Rack for 8x 2.5" HDD w/o fan module | ||
| Mobile Rack | CSE-M28SACB-OEM | $ 259.50 | 0 | Black SAS3/SATA3 Mobile Rack for 8x 2.5" HDD w/o fan module,HF,RoHS/REACH,PBF | ||
| LCD Module | MCP-220-00095-0B | $ 90.00 | 0 | Black 5.25 LCD tray wo rail, support 1x 3.5 HDD | ||
| Front Bezel | MCP-210-83501-0B | $ 34.00 | 0 | Black Front Bezel for SC835 | ||
| HDD Kit | MCP-220-83608-0N | $ 115.50 | 0 | 12G Rear 2.5x2 Hot-swap HDD kit w/ Status LED for 836B/835B |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
