- Supermicro CSE-LA15TQC-563W 1U Rackmount 560W/600W Power Supply

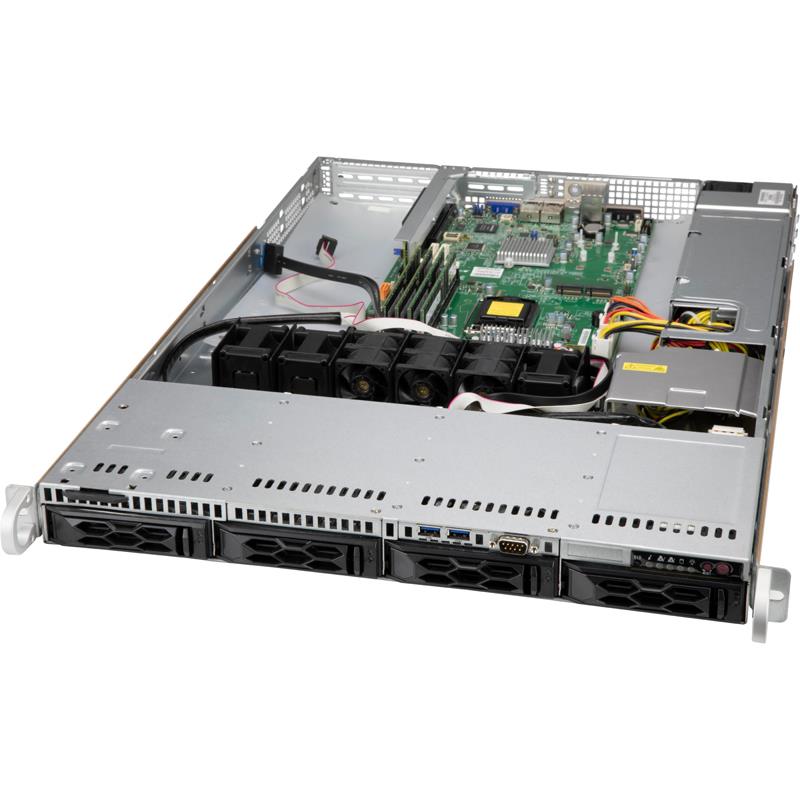

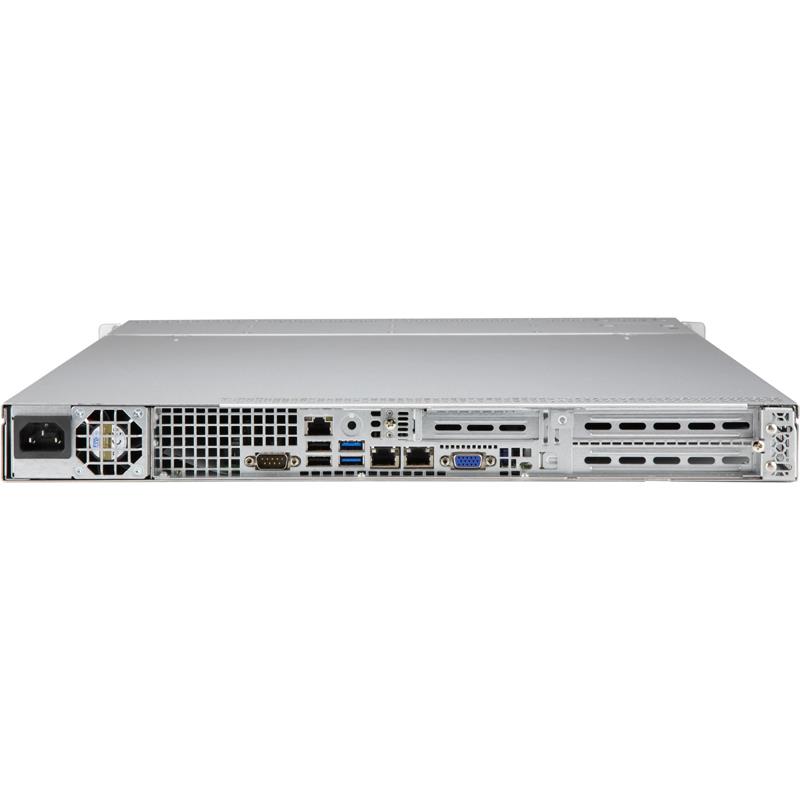

Supermicro CSE-LA15TQC-563W 1U Rackmount 560W/600W Power Supply
1U Rackmount 560W/600W Multi-output 24Pin Gold level Certified Power Supply, Optimized for WIO (W series) motherboards, support MB size up to 12.3" x 13.4", support single and dual Intel / AMD processors, Includes: 4x 3.5in (tool-less) or 2.5in (screw) hot-swap SAS3/SATA drive bay, 2x Full-Height Expansion Slot, 1x Low Profile Expansion Slots (CSE-LA15TQC-563W)
This product is no longer available.
1. Optimized for WIO (W series) motherboards, support MB size up to 12.3" x 13.4"
2. 4 x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bay
3. SAS or enterprise SATA HDD only recommended
4. 1U SAS/SATA Backplane with SES2 support
5. 1U 560W/600W Multi-output power supply Gold level, 24Pin output
6. 2x full-height & full-length expansion slot(s) 1x low-profile expansion slot
7. 3 x 40x56mm counter-rotation PWM fan(s)
8. Support Service Tag for system information
9. OEM Only, MOQ Applies
Extra Specifications for Supermicro CSE-LA15TQC-563W 1U Rackmount 560W/600W Power Supply
| Processor Support | ||
| Processor Support | Dual, single Intel® / AMD processors | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| Unit Identification (UID) button | ||
| System Reset Button | ||
| LEDs | Unit Identification (UID) LED | |
| Power Status LED | ||
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| Fan Fail/System Over Heat LED | ||
| System Monitoring | ||
| System Monitoring | Optional Chassis intrusion switch | |
| Power Supply | ||
| Power Supply | 1U 560W/600W Multi-output power supply Gold level, 24Pin output | |
| Certification | Gold Certified | |
| Power Efficiency | 92% | |
| Total Output Power and Input | 560W with Input 100 - 180Vac | |
| 600W with Input 180 - 240Vac | ||
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 279.4 x 76 x 40.4 mm | |
| Output Type | 24pin ATX | |
| -12V | Max: 0.5A / Min: 0A | |
| +12V | Max: 46A / Min: 1A (100Vac - 180Vac) | |
| Max: 49A / Min: 1A (180Vac - 240Vac) | ||
| +5V | Max: 18A / Min: 0.5A | |
| +3.3V | Max: 15A / Min: 0.5A | |
| +5Vsb | Max: 3A / Min: 0A | |
| +12Vsb | Max: NAA | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| TUV/CB | ||
| UL/CUL | ||
| FCC class B | ||
| Product SKUs | ||
| Product SKUs | - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs. | |
| Form Factor | ||
| Form Factor | Optimized for WIO (W series) motherboards, support MB size up to 12.3" x 13.4" | |
| Dimensions | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.6" (650 mm) | |
| Gross Weight | 28 lbs (12.7 kg) | |
| Packaging (W x H x L) | 23.2" (589 mm) x 7.1" (180 mm) x 32.1" (815 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 2x full height expansion slot(s), 1x low-profile expansion slot | |
| Drive Bays | ||
| Drive Bays | SAS or enterprise SATA HDD only recommended | |
| 4 x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay | ||
| Backplane | ||
| Backplane | 1U 4-Port 12Gbps Backplane Support 4x3.5 | |
| Peripheral Drives | ||
| Peripheral Drives | Optional 1 x USB + COM port tray | |
| Optional 1 x 2.5" internal fixed drive bay | ||
| Systems Cooling | ||
| Fans | 3 x 40x56mm counter-rotation PWM fan(s) | |
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Heatsink / Retention | N/A | 0 | Please refer to our Thermal Components Matrix | |||
| LCD/OLED Solutions | N/A | 0 | Please reference the LCD/OLED Display Solutions for details | |||
| Front Tray | MCP-220-81510-0N | $ 38.50 | 0 | USB 3.0 + COM tray kit for LA15 (cost-effective) | ||
| Hard Drive Carrier | MCP-220-81511-0N | $ 26.00 | 0 | FDD size Tray support 1x 2.5" HDD for LA15 (cost-effective) | ||
| Rail | MCP-290-00102-0N | $ 60.50 | 0 | Outer rail, quick-release type, 25.6" to 33.05" | ||
| Rail | MCP-290-00056-0N | $ 69.50 | 0 | Short outer rail, /quick, optional for 1U 17.2 | ||
| Chassis parts | MCP-290-00088-0N | $ 20.50 | 0 | SC119 Intrusion assembly | ||
| Air Shroud | MCP-310-81305-0B | $ 20.50 | 0 | Mylar air shroud for 1U X11SPW-TF,RoHS | ||
| Air Shroud | MCP-310-19019-0B | $ 20.50 | 0 | SC113/SC116/SC815/SC515, DP X11DDW Mylar air shroud |
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
