| Main Specifications |

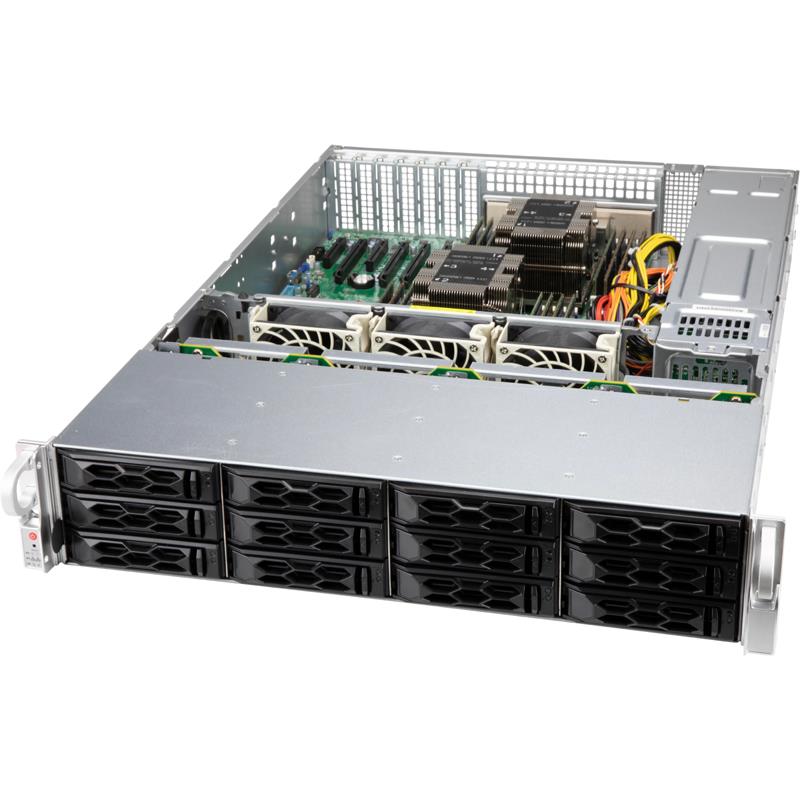

| Device Type | SuperChassis |
| Form Factor | 2U chassis |
| Supported Motherboards | ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68", Support up to ATX 12"x13" MB with rear 2.5" HDD option installed |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 25.5" (647 mm) |
| Weight | 37 lbs (16.78 kg) |
| Enclosure Color | Black |
| Processor |
| Compatible Processors | Dual and Single Intel and AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 7x low-profile expansion slots |
| Expansion Bays Total (Free) | 12x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3 |
| Optional 2x 2.5" hot-swap drive bay |
| Backplane |
| SAS/SATA HDD Backplane | 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices, HF, RoHS/REACH |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | Power status LED, HDD activity LED, 2 Network Activity LEDs, Unit Identification (UID) LED, Fan Fail/System Over Heat LED |
| System Cooling |
| Fans/Air Shroud | 3x 8cm high-performance PWM fan |
| System Monitoring |
| System Monitoring | Optional Chassis intrusion switch |
| Environmental |
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Power Supply |
| Power Supply | 600W / 650W 1U Redundant Power Supply |
| Certification | 80PLUS Platinum Certified |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | BSMI, CCC, CE/EMC, FCC |
| Parts List - (Items Included) |
| Backplane | 1x BPN-SAS3-826EL1-N4 |
| Cable(s) | 1x CBL-0071L |
| Fan(s) | 3x FAN-0181L4 |
| Drive Tray(s) | 12x MCP-220-00184-0B |
| Power Distributor(s) | 1x PDB-PT826-L8824 |
| Power Supply Number | 2x PWS-609P-1R2 |
| Rear Window | 1x MCP-240-82608-0N |
| Parts | 7x MCP-120-00115-0N, 1x MCP-290-82603-0V, 1x MCP-290-82606-0N, 1x MCP-290-82616-0V, 1x MCP-230-82602-0N |
