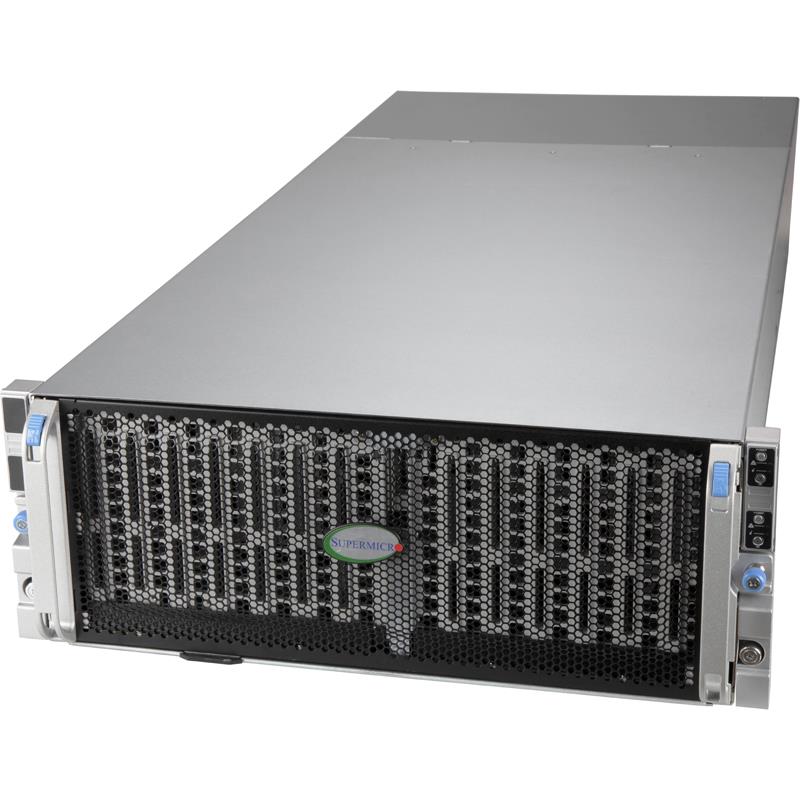

Supermicro CSE-947HE2C-R2K05JBOD 4U Rackmount 2000W Power Supply
Ideal for cloud backup, data replication storage applications
Equipped with two redundant high-efficiency power supplies
90 hot-swap SAS3 or SATA3 hard drives in top-loading drive bays
Features high power efficiency, optimized HDD signal trace routing
4U JBOD storage Enclosure 2000W Redundant Titanium Certified Power Supply, Includes: 90x 3.5in/2.5in hot-swappable SAS3 12Gb/s drive bay with SES3 (Top Loading) (CSE-947HE2C-R2K05JBOD)
Optimized for enterprise-level high capacity storage applications, Supermicro's CSE-947H JBOD chassis features up to 90 hot-swap 3.5" SAS3 or SATA3 hard drives in top-loading drive bays. It is ideal for cloud backup, data replication, or high-density archive storage applications.
This design offers an extra high density of HDDs per space ratio in a 4U form factor. The chassis features high power efficiency, optimized HDD signal trace routing, and improved HDD carrier design to dampen HDD vibrations and maximize performance. Equipped with two redundant high-efficiency power supplies and six 80mm high-speed, low-vibration, hot-swappable cooling fans, the CSE-947H JBOD is a reliable, easy-to-maintain storage system.
Key Features
Dual-Path Storage Enclosure for High Availability Applications
Support two canister controllers; 1+1 redundant for Dual-Path Enclosure
Support 90 3.5"/2.5" Top Loading SAS3 12Gb/s Hot-Swappable HDDs
6x SAS3.0 IO ports (MiniSAS HD/SFF-8644) per node
Dedicated IPMI RJ45 management port
Redfish OOB management protocol support
SCSI Enclosure Services SES-4 support
Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
Redundant Titanium 2000W power supply
