| Main Specifications |

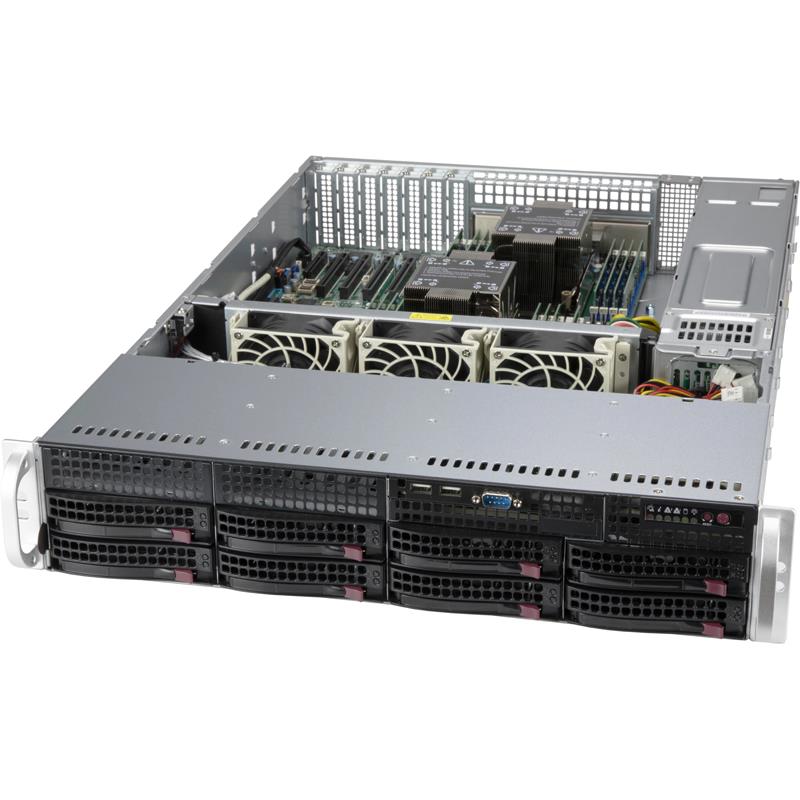

| Device Type | SuperChassis 825BTQC-R1K23LPB |
| Form Factor | 2U chassis |
| Supported Motherboards | Supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 25.5" (647 mm) |
| Weight | 52 lbs (23.59 kg) |
| Enclosure Color | Black |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 7x low-profile expansion slots |
| Expansion Bays Total (Free) | 8x 3.5" hot-swap SAS3/SATA drive bay |
| Optional 2x 3.5" fixed drive bay, Optional 2x 2.5" hot-swap drive bay for server chassis |
| Peripheral Bay (Free) | Optional 1x slim DVD-ROM drive bay, Optional 1x COM port tray, Optional 2x USB 2.0 ports, Optional 2x USB 3.0 ports |
| SAS/SATA Backplane |
| SAS/SATA Backplane | 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | Power status LED, HDD activity LED, System Information LED, Power Fail LED, 2 Network Activity LEDs |
| System Cooling |
| Fans/Air Shroud | 3x 80mm heavy duty fan(s) with PWM fan(s) speed control |
| System Monitoring |
| System Monitoring | Chassis intrusion switch |
| Environmental |
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Power Supply |
| Power Supply | 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm |
| Certification | 80 Plus Titanium Certified |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL |
| Parts List - (Items Included) |
| Air Shroud | 1x MCP-310-29001-0N |
| Backplane | 1x BPN-SAS3-825TQ |
| Cable(s) | 1x CBL-0071L, 2x CBL-PWCD-0160-IS, 3x CBL-PWEX-1078 |
| Parts | 7x MCP-120-00115-0N, 1x MCP-290-00088-0N, 1x MCP-230-82501-0N, 1x MCP-290-00007-01 |
| Fan(s) | 3x FAN-0206L4 |
| Front Panel Control | 1x FPB-FP836-D |
| Drive Trays | 1x MCP-220-00023-01, 8x MCP-220-00075-0B, 2x MCP-220-82502-0B, 1x MCP-290-82607-0N |
| Power Distributor(s) | 1x PDB-PT825-8824 |
| Power Supply Number | 2x PWS-1K23A-1R |
| Mounting Rails | 1x MCP-290-00053-0N, 1x MCP-290-00060-0N |
| Rear Window | 1x MCP-240-82608-0N |
