• Comply with RoHS requirements
• Designed for Supermicro 1U Server
• 650W output power at 90% efficiency
• Simplicity of active power factor correction
Power Supply 650W Module, 20/24pin, PFC, DC Input

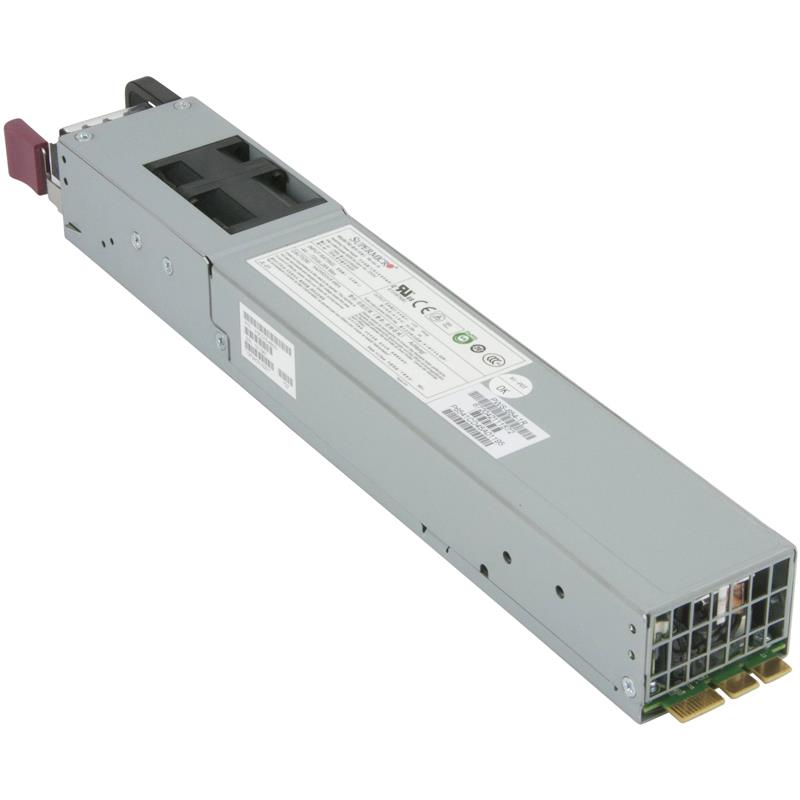

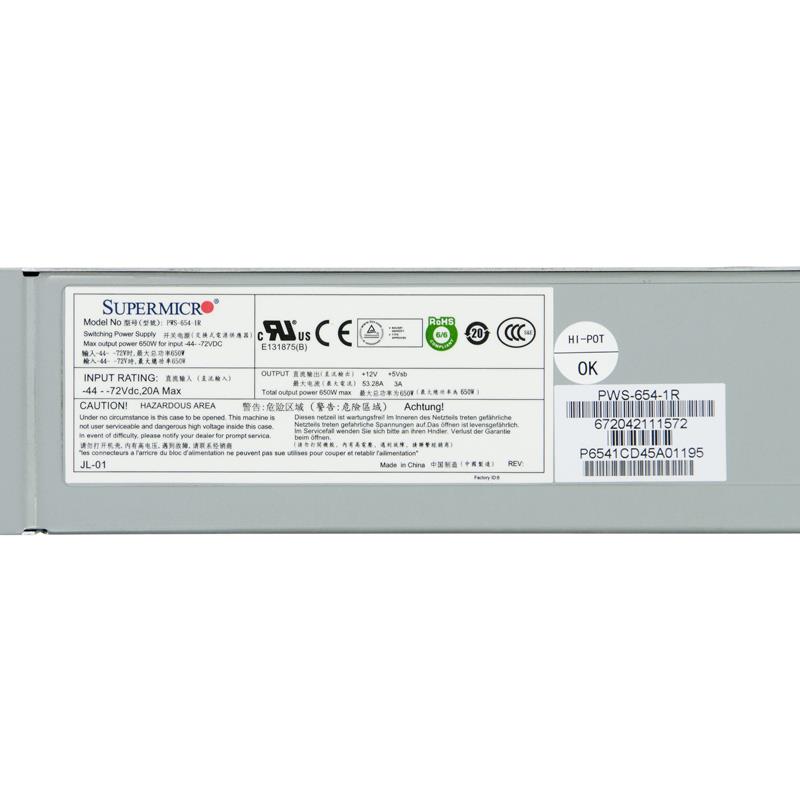

The Supermicro PWS-654-1R is a DC input power supply capable of supplying 650W output power at 90% efficiency.
The PWS-654-1R is compatible with PWS-706P-1R, PWS-504P-1R, and PWS-704P-1R.
Enjoy the simplicity of active power factor correction (PFC) and automatically correct DC input for a full range of voltages.
Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems.
This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit.
Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU.
This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime.
All materials contained comply with RoHS requirements and is certified by Supermicro.
| Main Specifications | ||
| Device Type | Power supply | |
| Dimension(s) (WxDxH) | 320 x 54 x 40 mm | |
| Height (Rack Units) | 1U | |
| Type | Module | |
| Software / System Requirements | ||
| Recommended Power Supply | 650W | |
| Power Device | ||
| Output Connector(s) | 20 or 24pin | |
| Miscellaneous | ||
| RoHS | Yes | |
| Feature(s) | Backplane, DC Input | |
| Warranty: | 3 years, 120 days advanced replacement (doa) |
| Provider: | Supermicro |
| Phone No.: | 305-640-0300 |
| E-mail: | returnservices@wiredzone.com |
| URL: | Click here for Manufacturer Website |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
