Main Specifications |

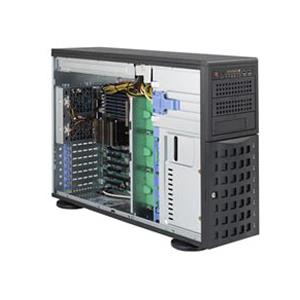

Device Type | SuperChassis 745BTQ-R920B |
Form Factor | Tower / 4U chassis |
Supported Mainboards | E-ATX 13.68" x 13" ATX/Micro ATX |
Dimensions (WxDxH) | Height 17.8" (452 mm) x Width 7" (178 mm) x Depth 25.5" (647 mm) |
Weight | Gross Weight: 64 lbs (29.03 kg) - Net Weight: 62 lbs (28.12 kg) |
Enclosure Color | Black |
Processor Support |
Processor Support | Dual and Single Intel and AMD processors |
Expansion / Connectivity |
Expansion Slots Total (Free) | 7x Full-height, Full-length Expansion Slots |
Expansion Bays Total (Free) | 8x 3.5"/2.5" hot-swap SAS drive bay with SES3 |
Peripheral Bay (Free) | 2x standard 5.25" drive bay, 1x 3.5" internal fixed drive bay |
Backplane |
SAS/SATA HDD Backplane | 743 SAS BACKPLANE W/AMI MG9072 |
Front Panel |
Buttons | Power On/Off button, System Reset button |
LEDs | Power status LED, HDD activity LED, 2 Network Activity LEDs, Fan Fail/System Over Heat LED |
Port Panel | 2x USB 2.0 Port(s) |
System Cooling |
Fans/Air Shroud | 2x 8cm hot-swap exhaust fan(s) & air shroud, 3x 8cm high-performance PWM fan(s) |
Environmental |
Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
Power Supply |
Power Supply | 1U 920W Redundant Platinum Super Quiet power supply W/PMbus |
Certification | 80 Plus Platinum Certified |
Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC class B, TUV/CB, UL/CUL |
Parts List - (Items Included) |
Air Shroud | 1x MCP-310-49001-0N |
Backplane | 1x CSE-SAS-743TQ |
Cable(s) | 4x CBL-0044L, 1x CBL-0087, 1x CBL-0157L, 1x CBL-0160L, 3x CBL-0216L, 1x CBL-0471L |
Parts | 7x MCP-120-00116-0N, 1x MCP-230-00018-01, 1x MCP-290-74502-0B |
Fan(s) | 2x FAN-0082L4 |
Drive Trays | 8x MCP-220-00193-0N |
Power Distributor(s) | 1x PDB-PT747-4648 |
Power Supply Number | 2x PWS-920P-SQ |
