Main Specifications |

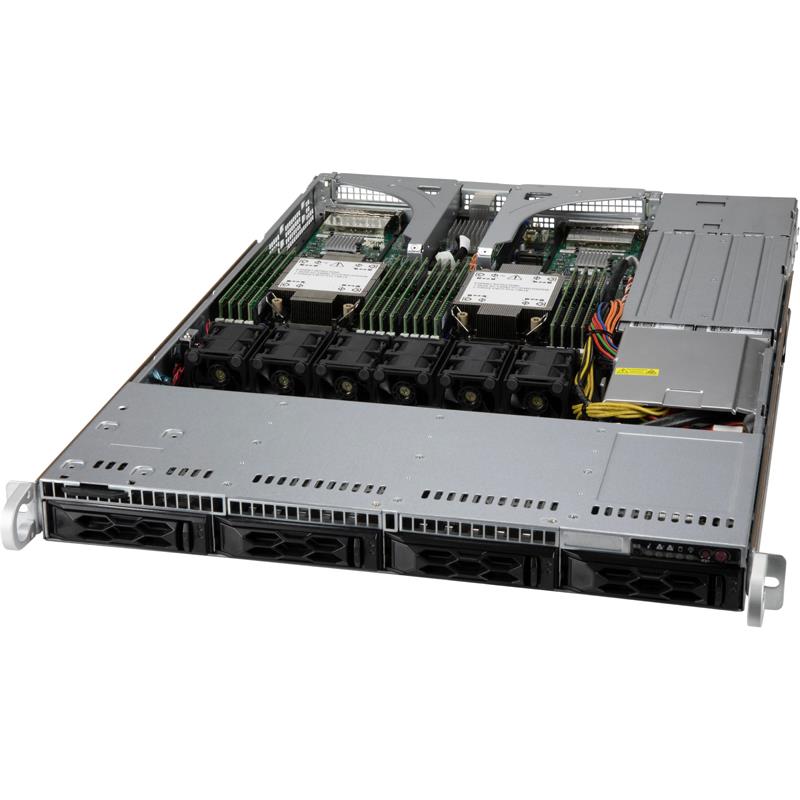

Device Type | SuperChassis |
Form Factor | 1U Chassis |
Supported Motherboards | Optimized for CloudDC motherboard with S-AIOM support, support MB size up to 12.3" x 13.4" |
Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 25.6" (650 mm) |
Weight | 28 lbs (12.70 kg) |
Enclosure Color | Black |
Processor Support |
Processor Support | Dual and Single Intel and AMD processors |
Expansion / Connectivity |
Expansion Slots Total (Free) | 2x Full-height expansion slot, 2x S-AIOM expansion slot |
Expansion Bays Total (Free) | 4x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay, SAS or enterprise SATA HDD only recommended |
Peripheral Bay (Free) | Optional 1x USB + COM port tray, Optional 1x 2.5" internal fixed drive bay |
SAS/SATA Backplane |
SAS/SATA Backplane | 4-Port 1U 12Gbps Backplane Support 4x3.5 |
Front Panel |
Buttons | Power On/Off button, System Reset Button, Unit Identification (UID) button |
LEDs | Power status LED, HDD activity LED, 2 Network Activity LEDs, Unit Identification (UID) LED, Fan Fail/System Over Heat LED |
System Cooling |
Fans/Air Shroud | 4x 40x56mm counter-rotation PWM fan |
System Monitoring |
System Monitoring | Optional Chassis intrusion switch |
Environmental |
Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
Power Supply |
Power Supply | 800W/860W 1U redundant power supply |
Certification | 80PLUS Platinum Certified |
Regulatory (Power Supply) |
Power Supply Safety / EMC | BSMI, CCC, CE/EMC, UL/CB, UL/CUL |
Parts List - (Items Included) |
Hard Drive Backplane | 1x BPN-SAS3-815TQ |
Cable(s) | 1x CBL-CDAT-0680-55, 2x CBL-PWCD-0160-IS |
Parts | 2x MCP-120-00116-0N, 2x MCP-220-81509-0N, 1x MCP-230-81502-0N, 2x MCP-240-00175-0N, 2x MCP-240-00177-0N, 1x MCP-240-00179-0N, 1x MCP-240-00180-0N, 1x MCP-290-00088-0N, 1x MCP-270-81506-0N, 24x MCP-320-00056-0B, 1x MCP-320-00066-0B, 1x MCP-340-00035-0B, 1x MCP-320-00067-0B, 1x MCP-160-00028-0B, 1x MCP-250-81502-0N |
Drive Tray(s) | 4x MCP-220-00184-0B |
Mounting Rails | 1set MCP-290-00054-0N |
Rear Window | 1x MCP-240-00173-0N |
Power Distributor(s) | 1x PDB-PT116-SL8824 |
Power Supply Number | 2x PWS-860P-1R2 |
