| Main Specifications |

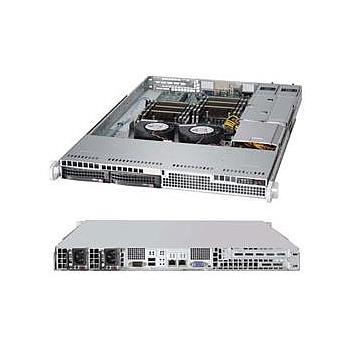

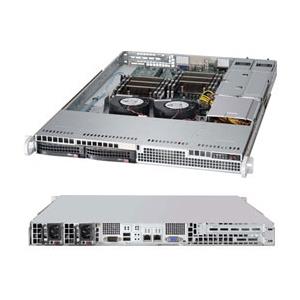

| Device Type | SuperChassis 813LT-R500CB |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437mm) x Depth 25.6" (650mm) |
| Color | Black |
| Form Factor | 1U Chassis |
| Support for max. motherboard size - 12" x 13" E-ATX |
| Weight | 36 lbs (16.4kg) |
| Processor Support |
| Processor Support | Supports dual, single Intel / AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1x Full-height, Full-length PCI expansion slot |
| Drive Bays |
| Hot-swap | 2x 3.5" SAS/SATA hot-swap drive trays - SAS or enterprise SATA HDD only recommended |
| Peripheral Drives | CSE-PT93L-B |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Information LED |
| System Cooling |
| Fans | 2x 10cm PWM blower fans |
| FAN-0135L4 |
| Operating Environment (System) |
| Operating Temperature Range | Non-Operating Temperature Range -40C ~ 60C (-40F ~ 140F) |
| Non-Operating Relative Humidity Range 5% - 95% (non-condensing) |
| Operating Temperature Range 5C - 35C (41F - 95F) |
| Operating Relative Humidity Range 8% - 90% (non-condensing) |
| Power Supply |
| Certification | 80 Plus Platinum Certified |
| Power Supply | PWS-504P-1R |
| 500W high-efficiency (94%+) redundant power supplies w/ PMBus |
| SAS / SATA Backplane |
| SAS / SATA Backplane | 1x 1U SAS / SATA backplane |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, China - CCC Mark, Europe/CE Mark, EN 60950/IEC 60950-Compliant, Germany - TUV Certified, Taiwan- BSMI mark |
| Standard Parts List |
| Accessory | MCP-260-00041-0N |
| Chassis | CSE-813LT-R500CB |
| Fan Holder | MCP-320-81303-0N |
| Front Panel | FP813-D |
| Power Distributor | PDB-PT112-2424 |
| Rear Window | MCP-240-00086-0N |
| Parts List - (Items Included) |
| Backplane | BPN-SAS-813LT-O-P |
| Drive Trays | MCP-220-00075-0B |
| Mounting Rails | MCP-290-00102-0N, MCP-290-00106-0N |
| Parts List |
| Cables | CBL-0227L, CBL-0071L |
